Product Name: Cheap overhead trolley chain conveyor powder coating

We have many overhead trolley conveyor chain model, which is for load 10~500KG per hanging product.

Such as UH-5075 series, QXG-200 series, forged chain X-348 /458/ 678.

We can suggest you the best suiable conveyor for you after know your basic information.

Specification of Cheap overhead trolley chain conveyor powder coating UH-5075

MODEL ITEM	UH-5075-S Standard chain	UH-5075-HH Heavy-duty chain	UH-5075-HV Heavy-duty chain	UH-5075-HA Heavy-duty chain
Suspension Spacing (mm)	150+(150× N)	150+(150 × N)	150+(150 × N)	150+(150 × N)
Chain's Weight (kg/m)	4.2	4.58	4.83	5.3
Single-span Weight (≤kg)	35	40	45	50
Chain's Allowed Pull Force (≤kgf)	3000	3000	3000	3000
Chain's Catastrophic Pull Force (≥kgf)	5500	5500	5500	5500
Working temperature (≤°C)	250	300	300	400
Applicable Equipment	General conditions	Large bending; High temperature;	High temperature; Heavy work piece; Frequently lifted;	High temperature; Heavy work piece; Complicated route;
Material	16# Medium-carbon steel, Steel A3
Remark: The above technical data is for our usual hanging type conveyors: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements.

Cheap overhead trolley chain conveyor powder coating

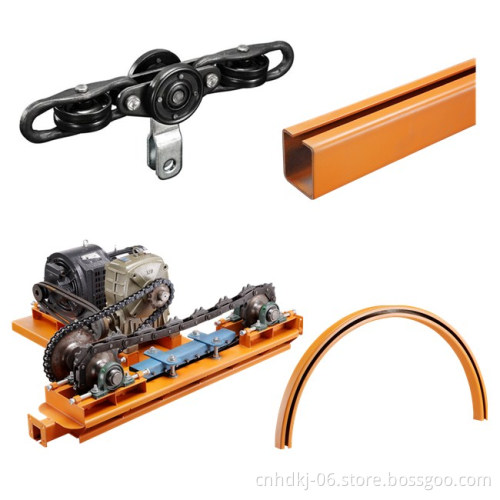

Other spare parts for Cheap overhead trolley chain conveyor powder coating

Track: Straight track, Bush track,Vertical track, Horizontal Track

Driver Device:Limit-load Caterpillar Driver Device, Caterpillar Driver Device, Sprocket Driver

Take up Device:Heavy Bob type take up device

Hanger:Cross type disk hanger, sprocket wheel hanger, Y type hanger, Cross type hanger, electroplating hanger,

U type Hanger,Bearing hanger

Other Accessories: hanger turner, track flange, track install hanger,check track, Manual /automatic oil feeding cup

Automatic oil sprayer

Cheap overhead trolley chain conveyor powder coating

Application of Cheap overhead trolley chain conveyor powder coating:

Conveyor chain is closeup continual conveying equipment widely applied for continual convey of various industrial work pieces,

such as surface treatment, powder coating, paint spraying, drying, oven, cooling room and plaing the finished products off the line, furniture factories, bicycle plants,electronic products factory, hardware factory.

Cheap overhead trolley chain conveyor powder coating

More product:

FAQ

Chain Material:16# Medium-carbon steel, Steel A3
Track material: Steel A3
The drive system better to be 5~7 meters after the adjust seat
If dont move, check if any straight and curve rails; check the motor and chain; check if use high temperature chain lubricant
If chain fall of the drive, check the driving wheel
