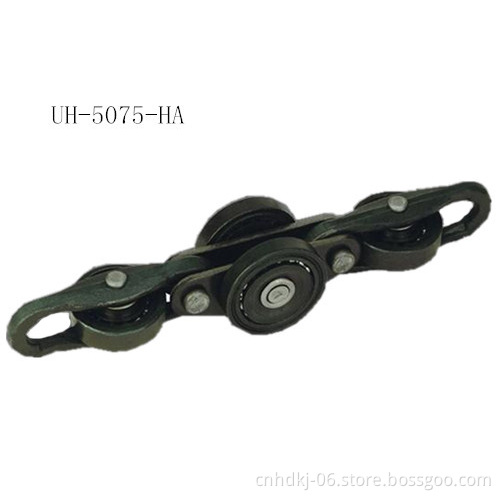

5 ton industrial powder coating line overhead conveyor chain system UH 5075 HA

MODEL

ITEM

 UH-5075-S

Standard chain

 UH-5075-HH

Heavy-duty chain

 UH-5075-HV

Heavy-duty chain

 UH-5075-HA

Heavy-duty chain

Suspension Spacing

(mm)

150+(150× N)

150+(150 × N)

 150+(150 × N)

150+(150 × N)

Chain's Weight

(kg/m)

 4.2

 4.58

 4.83

 5.3

Single-span Weight

(≤kg)

 35

 40

45

 50

Chain's Allowed

Pull Force (≤kgf)

 3000

 3000

3000

 3000

Chain's Catastrophic

Pull Force (≥kgf)

 5500

5500

 5500

5500

Working temperature

(≤°C)

 250

 300

 300

 400

Applicable Equipment

General conditions

Large bending;

High temperature;

High temperature;

Heavy work piece;

Frequently lifted;

High temperature;

Heavy work piece;

Complicated route;

Material

16# Medium-carbon steel, Steel A3

Remark: The above technical data is for our usual hanging type conveyors: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements.
