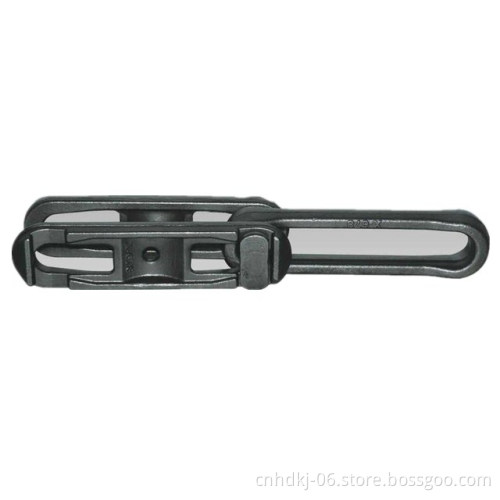

I beam trolley drop forged conveyor chain X348 X458 X678

I beam trolley drop forged conveyor chain X348 X458 X678

$15.00

≥100 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Express, Ocean, Land, Air

Port:: Shenzhen

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	50000 Meter/Meters per Month
Payment Type:	L/C,T/T,MoneyGram,Paypal
Transportation:	Express,Ocean,Land,Air
Port:	Shenzhen

Product Description

Product Name: I beam trolley drop forged conveyor chain X348 X458 X678

We produce I-Beam trolley overhead conveyor chain X348, X458, X678, which is for hanging 150KG~500KG single product.

Beside, we produce UH-5075 series, QXG200 series overhead conveyor chain, which is for hanging 30KG~50KG single product.

We also have all spare parts for whole system, such as driver device, take-up deivc/tensioner, straight track, curve track, up-down track/vertical track, check track, flange, oil sprayer, electric cabinet.

The overhead conveyor chain is mianly used for powder coating line, spray painting system, garment/clothes drying, surface treatment system, and other material handling conveyor system.

According to customers' drawing, we can calculate all need parts for whole system.

I beam trolley drop forged conveyor chain X348 X458 X678

Supply the regular overhead I-beam overhead conveyor chain

X348(150KG),F-100(300KG),X458(300KG),X678(500KG)

Specification of I beam trolley drop forged conveyor chain X348 X458 X678

Chain	X348	X458	X678
Separation of suspenison	T=76.6mm	T=102.4mm	T=153.2mm
Chain's catastrophic pull force	110KN	220KN	400KN
carriage limite load (kg)	300	500	800
Carriage allowable load	150	250	500
Track	I 10 / I 12	I 12 / I 14	I 14 / I 16
Minimum horizontal radius	R305	R317	R404
Minimum vertical bending	R1500	R2000	R3150
