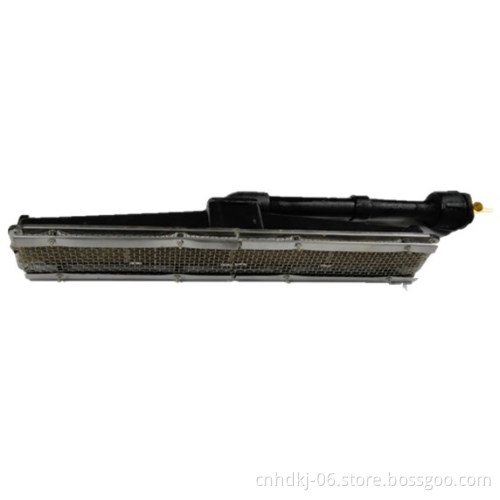

Natural gas fired infrared burners for powder coating oven and industrial dryer
Infrared gas burner specification:
| Model | Dimension | N.W | Gas Type | Material | Heat Output | Gas Consumption | ||
| L*W*H(mm) | KG | kw/h | Kcal/hr | NG(m3/h) | LPG(KG/h) | |||
| HD101 | 690*80*115 | 6.9 | NG/LPG | Cast iron,Ceramic plate | 3.9 |
3380 |
0.3 |
0.28 |
Other type gas burners specification:
| Model | Dimension | N.W | Gay Type | Material | Heat Output | Gas Consumption | ||
| L*W*H(mm) | kg | kw/h | kcal/h | NG(m3/h) | LPG(kg/h) | |||
| HD61 | 423*80*94 | 3.8 | NG/LPG/Propane | Cast iron,Ceramic plate | 2.4 | 2030 | 0.18 | 0.17 |
| HD81 | 555*80*115 | 5.8 | 3.1 | 2700 | 0.24 | 0.22 | ||
| HD82 | 219*164*108 | 4.8 | 3.1 | 2700 | 0.24 | 0.22 | ||
| HD101 | 690*80*115 | 6.9 | 3.9 | 3380 | 0.3 | 0.28 | ||
| HD162 | 570*130*175 | 8 | 6.3 | 5400 | 0.49 | 0.45 | ||
| HD242 | 840*130*175 | 11.7 | 9.4 | 8120 | 0.75 | 0.68 | ||
| HD262 | 930*130*175 | 13 | 10.9 | 9360 | 0.8 | 0.74 | ||
Product advantage:
1.Fast heating and flameless,start to work in 8 seconds.
2.Gas saving more than 20%.
3.Less Carbon monoxide and NOx pollution,less noise.
4.Can be used longer,about 11000 hours.
Black catalytic coating on the ceramic honeycomb plates:
Packing Details:
Please send us inquiry for more information
-
