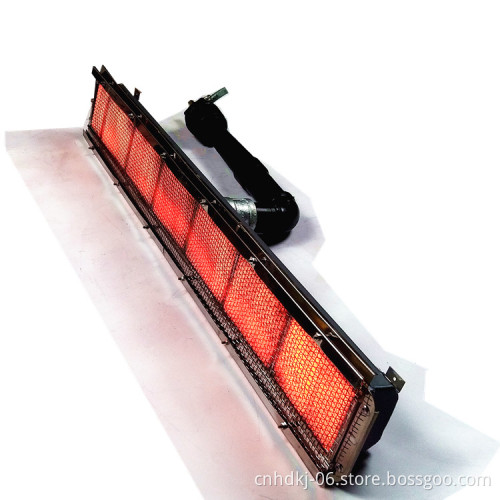

Gas fired infrared burners drying everything from animal food, paint, cereal & vegetable crops

Gas catalytic infrared burners for Drying after surface treatments

Infrared gas burners specification:

Gas catalytic infrared technology is compared to normal gas infrared stystem:

1.Ceramic burning surface can reach 850 Degrees Celsius,others can reach 500 degree celsius only.2.Harmless rare earth catalyst for the things are heated,and gas saving more than 15% to 20%.

3.Flameless reaction,can be used longer.

4.Homogenous heat distribution.

5.Intelligent PLC control.

6.Minimal emission of NOx or CO.

Features and Benefits:

Input fuel is converted to 75% infrared,25% convective energy.

Catalytic combustion makes more 15% to 20% gas saving.

Could be controled by thermostat with thermocouple.

Stainless steel spacer (slit orifice) to deliver an even air/gas mixture.

High temperature, corrosion resistant alloy side plates.

Machined cast iron body.

Modular burner sections with carbon steel orifice union connectors.

Replaceable ceramic refractory emitters.

Radiant heat is distributed uniformly.

High velocity radiant heat diffuses surfaces boundary layers on product process.

No ported holes to clog.

Longer wear resistance no dark areas on refractories.

Less warping, increased burner longevity.

Structural integrity in continuously operating ovens.

Quick and easy replacement of burner sections with uniform firing rate across entire burner length.

Lower stress design and cost effective maintenance.

This infrared gas burner fits for:

 Drying oven - animal foods, cereal and vegetable crops.

Curing oven - dry powder and wet paint coating applications, including stove enamelling and vitreous enamel

Plastic shrink wrapping.Powder coating or paint curing of oil filter housings, engine blocks, cylinder heads, pistons, other motor parts, steering columns

Heat walls - for textile, carpet and paper drying.

Heat treatment ovens.

Forced draught installations - fabrication,pre-heating.

Foundry mould and core dring.

Die heating bellow 500 degree.

Ceramic holloware and flatware - prior/post glazing.

Metal billet heating bellow 500 degree.

Metal annealing bellow 500 degree.

Rubber/plastic forming,glass anneal process,nonwoven fiber drying.
