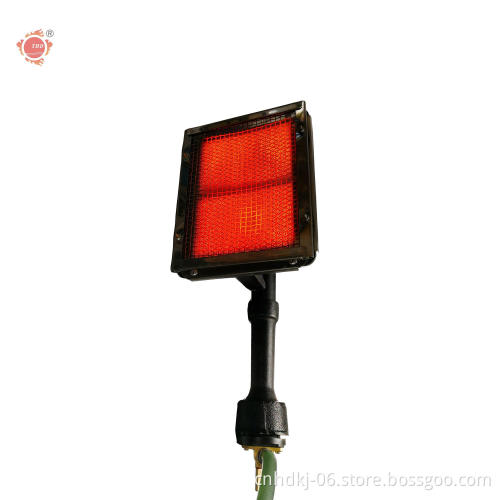

Professional Small curing oven industrial LPG natural gas burner

There are three ways to transfer heat: Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most of Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big.

But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, usually it can save 20% gas energy and cost.Professional Small curing oven industrial propane lpg gas burner.

1. Widely used in low pressure (below 6 Kpa)

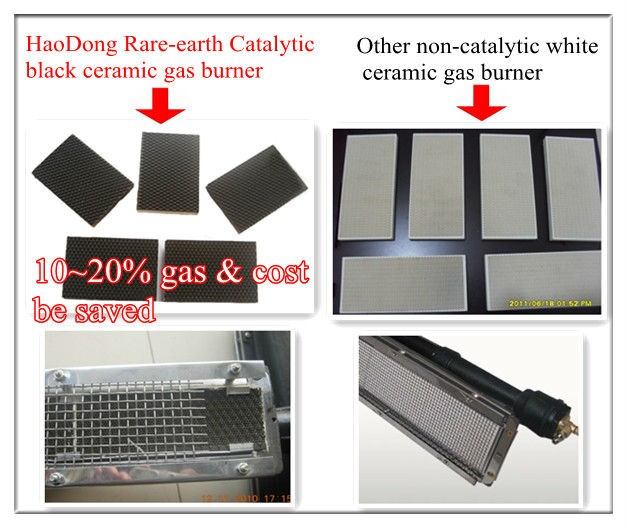

2. Adopting advanced technology of rare-earth catalyst on ceramic plate, about 10%~20% gas consumption

 will be saved.
3. Low gas consumption.
4. Even heating,
5. Much cheaper than metal fiber burner
6. Single product has separate control system, it will not influence work of each other
7. Flameless combustion, also suitable for powder products baking process
Energy saving:conversion rate:≥90%
Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
Long life:≥11000hr
Easily installed

 Notice
1. The inside casing measurement of oven should be confirmed when choose infrared catalytic burner model.
2. The intake-tube (or air blast pipe) and shell body can't be installed in the oven but bared in the air.

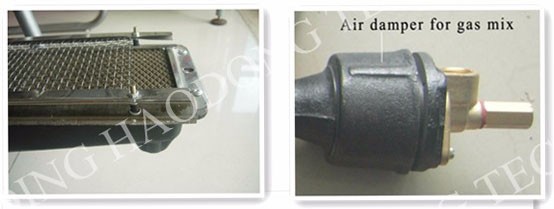

3. It is gas & air pre-mixed type, if baring air damper into air is unavailable, pls leave some hole for enough air in.

It needs to leave a 4-5cm space between oven wall and ignition pin for maintenance; Also keep the pinpoint distance from burner ceramic surface 2~5mm.

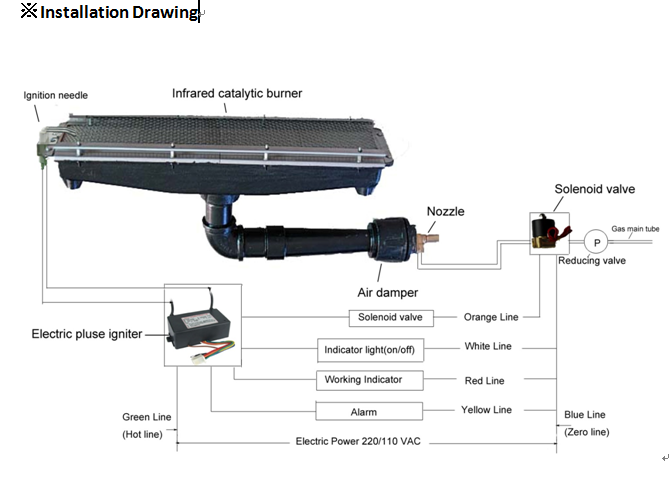

4. A set of standard configuration of infrared catalytic burner is infrared catalytic burner + ignition needle + pulse ignition + solenoid valves.
5. Any installed position is ok, but when the burner is on top or side, you should keep a 15° gradient between the wall and burner ceramic surface so that the heatwave will rise up smoothly.

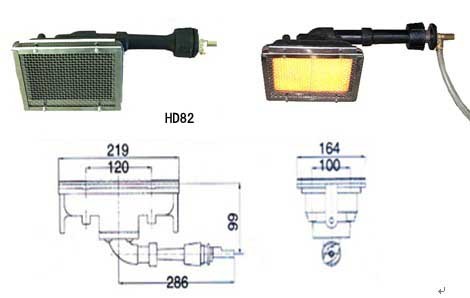

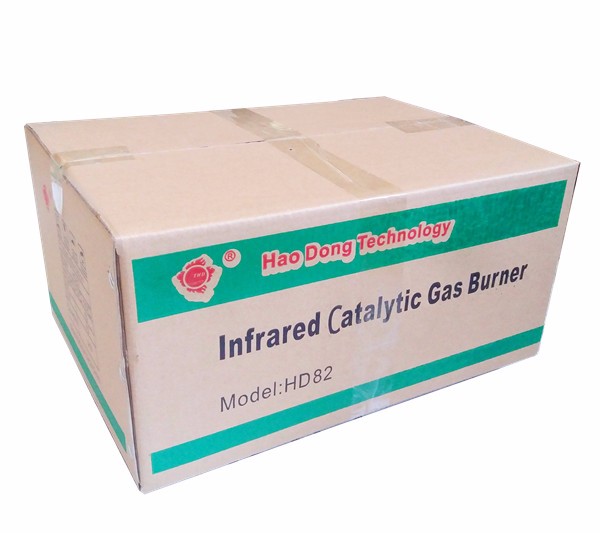

Professional Small curing oven industrial propane lpg gas burner HD82

Selling Units: Single Item

Carton Size : 460x330x230mm
one carton gross Weight: 12.3KG
Package Type: 2 Pieces packaged in one carton

1X20 FT CONTAINER,Iterm  HD82 quantities about 1437~1556pcs

1X40 FT  CONTAINER,Iterm HD82 quantities about 3234pcs

If you want use your own package ,  pls.contact  us in advance.
