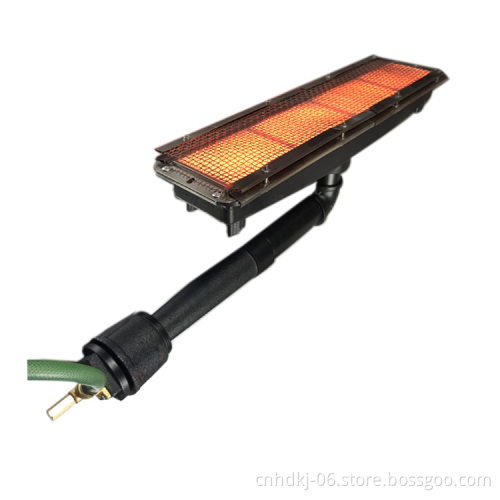

Cast Iron Flameless Industrial Infrared Catalytic Gas burner for powder coating oven

There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big.

But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, usually  cast iron flameless infrared Catalyst Industrial Gas burner can save 20% gas energy and cost.

1. Widely used in low pressure (below 6 Kpa)

2. Adopting advanced technology of rare-earth catalyst on ceramic plate, about 10%~20% gas consumption

 will be saved.
3. Low gas consumption.
4. Much cheaper than metal fiber burner
5. Single product has separate control system, it will not influence work of each other
6. Flameless combustion, also suitable for powder products baking process
Energy saving:conversion rate:≥90%
Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
Long life:≥11000hr
Easily installed

 Notice
1. The inside casing measurement of oven should be confirmed when choose infrared catalytic burner model.
2. The intake-tube (or air blast pipe) and shell body can't be installed in the oven but bared in the air.
3. It is gas & air pre-mixed type, if baring air damper into air is unavailable, pls leave some hole for enough air in.

It needs to leave a 4-5cm space between oven wall and ignition pin for maintenance; Also keep the pinpoint distance from burner ceramic surface 2~5mm.
4. A set of standard configuration of infrared catalytic burner is infrared catalytic burner + ignition needle + pulse ignition + solenoid valves.
5. Any installed position is ok, but when the burner is on top or side, you should keep a 15° gradient between the wall and burner ceramic surface so that the heatwave will rise up smoothly.

Cast iron flameless infrared Catalyst Industrial Gas burner application scope

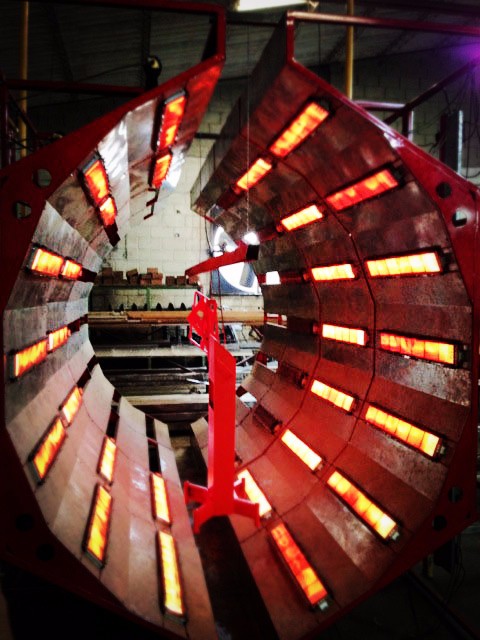

1.Indaustrial Surface Treatment:Liquefield/wet drying oven,spary painting oven, electrostatic powder coating oven,preheating treatment equipment etc.

2.Food Baking:Snack puffed food such as biscuit,bread,cookies,egg roll,rice cake etc.;Dehydration of fruit,grain,vegetable,spice;Roasting for fish,duck,chicken,sausage and other meat.

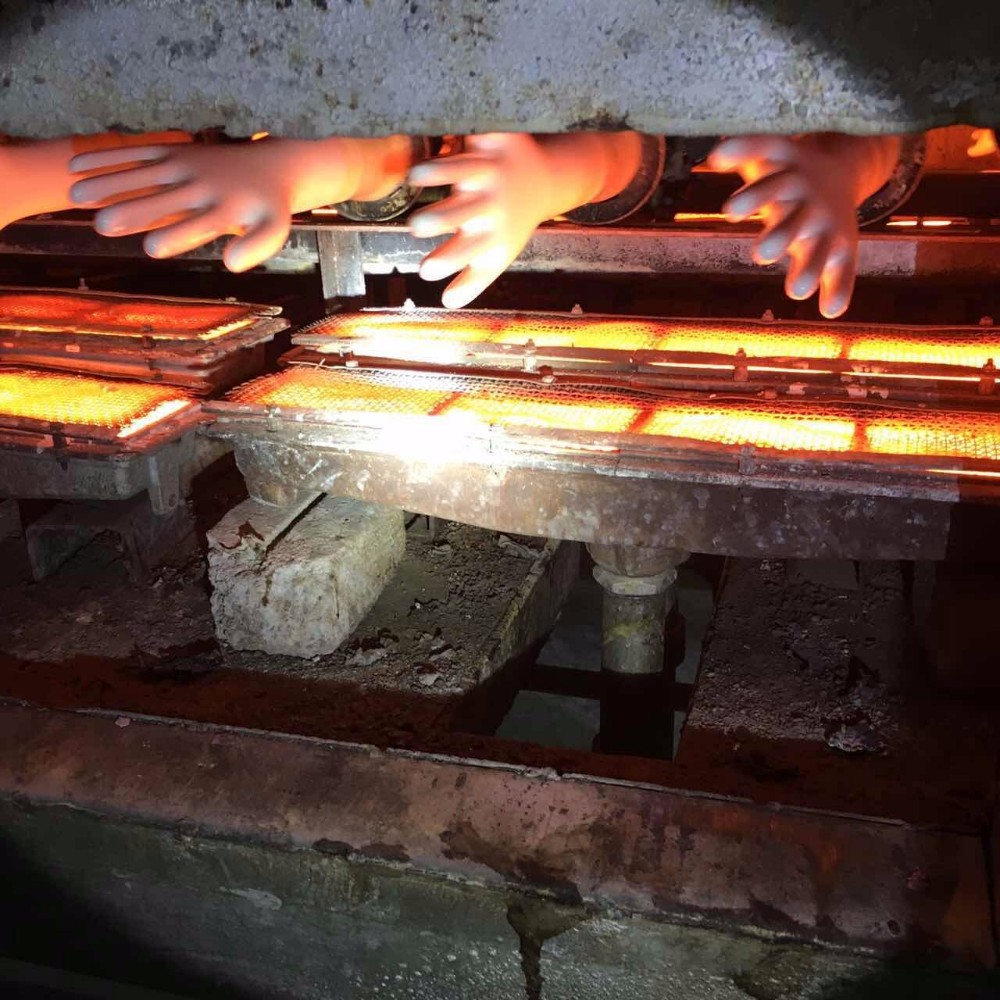

3.Other Industrial Heating: Rubber/plastic thermal forming craft,paper drying,nonwoven fiber drying,mould preheating,glass anneal process,laundry cloth drying plant etc.

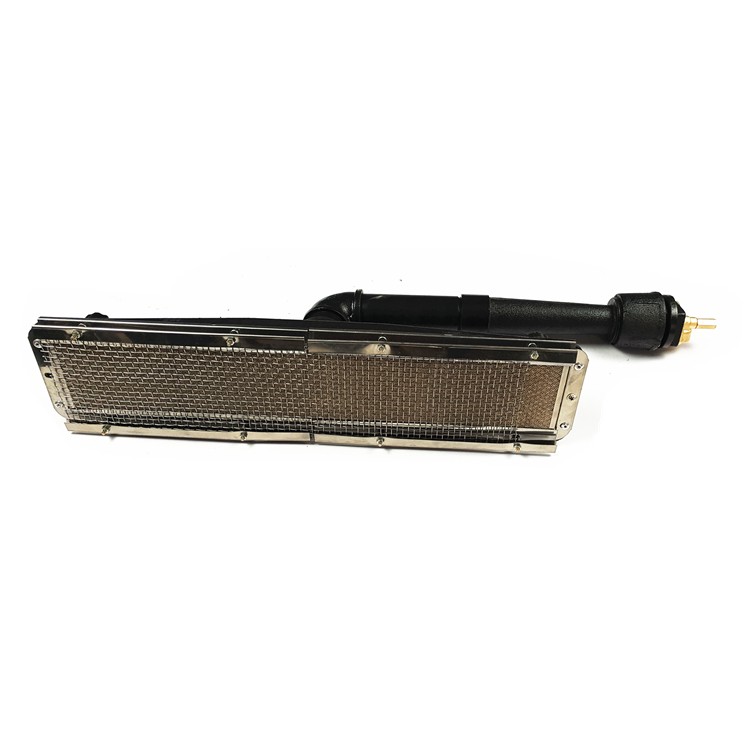

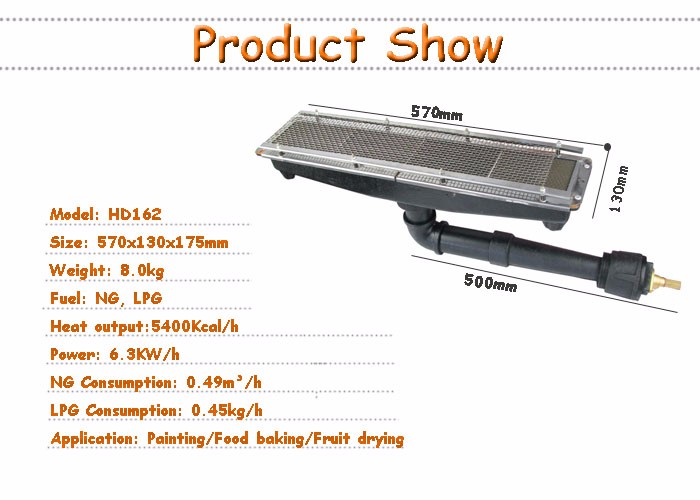

cast iron flameless infrared Catalyst Industrial Gas burner HD162

Selling Units: Single Item
Carton Size :610x250x290mm
Single gross Weight: 20.1KG
Package Type: 2pcs/ctn, inner individual carton and bubble bags
