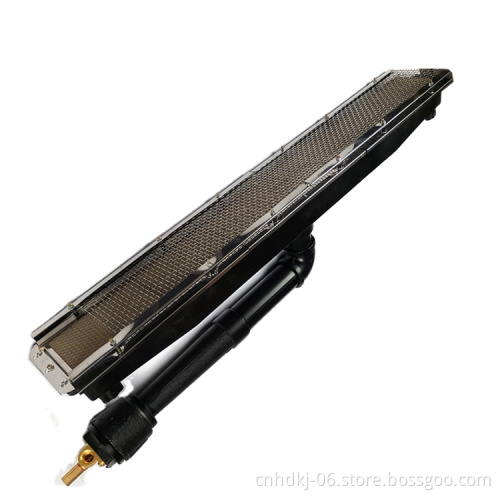

Industrial Infrared caralyst automatic Natural Gas Burner for biscuit baking

There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big.

But, differently, infrared catalytic gas burner covered with rare earth catalyst, and heat object directly by radiation and transfer rate will be much higher, usually Industrial Infrared caralyst automatic Natural Gas Burner can save 20% gas energy and cost.

1. Widely used in low pressure (below 6 Kpa)

2. Adopting advanced technology of rare-earth catalyst on ceramic plate, about 10%~20% gas consumption

 will be saved.
3. Low gas consumption.
4. Even heating,
5. Much cheaper than metal fiber burner
6. Single product has separate control system, it will not influence work of each other
7. Flameless combustion, also suitable for powder products baking process
Energy saving:conversion rate:≥90%
Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
Long life:≥11000hr
Easily installed

 Notice
1. The inside casing measurement of oven should be confirmed when choose Industrial Infrared caralyst automatic Natural Gas Burner model.
2. The intake-tube (or air blast pipe) and shell body can’t be installed in the oven but bared in the air.
3. It is gas & air pre-mixed type, if baring air damper into air is unavailable, pls leave some hole for enough air in.

It needs to leave a 4-5cm space between oven wall and ignition pin for maintenance; Also keep the pinpoint distance from burner ceramic surface 2~5mm.

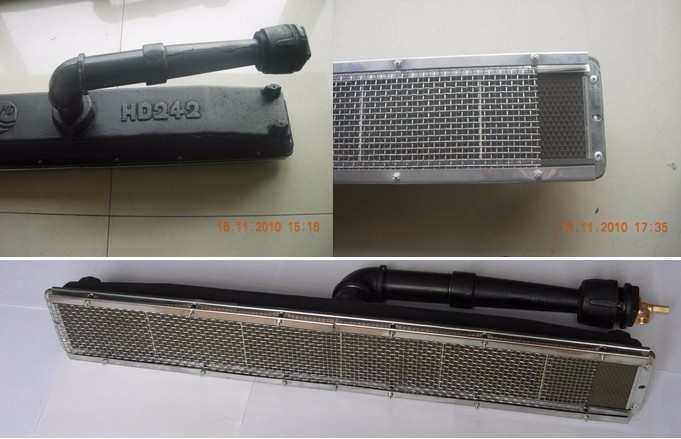

4. A set of standard configuration of Industrial Infrared caralyst automatic Natural Gas Burner is infrared catalytic burner + ignition needle + pulse ignition + solenoid valves.
5. Any installed position is ok, but when the burner is on top or side, you should keep a 15° gradient between the wall and burner ceramic surface so that the heatwave will rise up smoothly.

Industrial Infrared caralyst automatic Natural Gas Burner application scope
1.Indaustrial Surface Treatment:Liquefield/wet drying oven,spary painting oven, electrostatic powder coating oven,preheating treatment equipment etc.

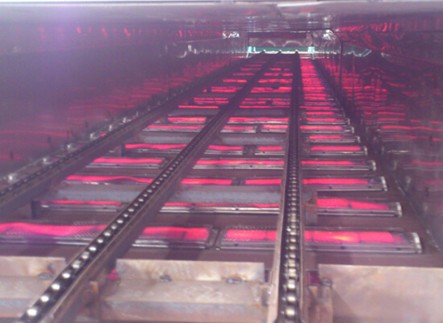

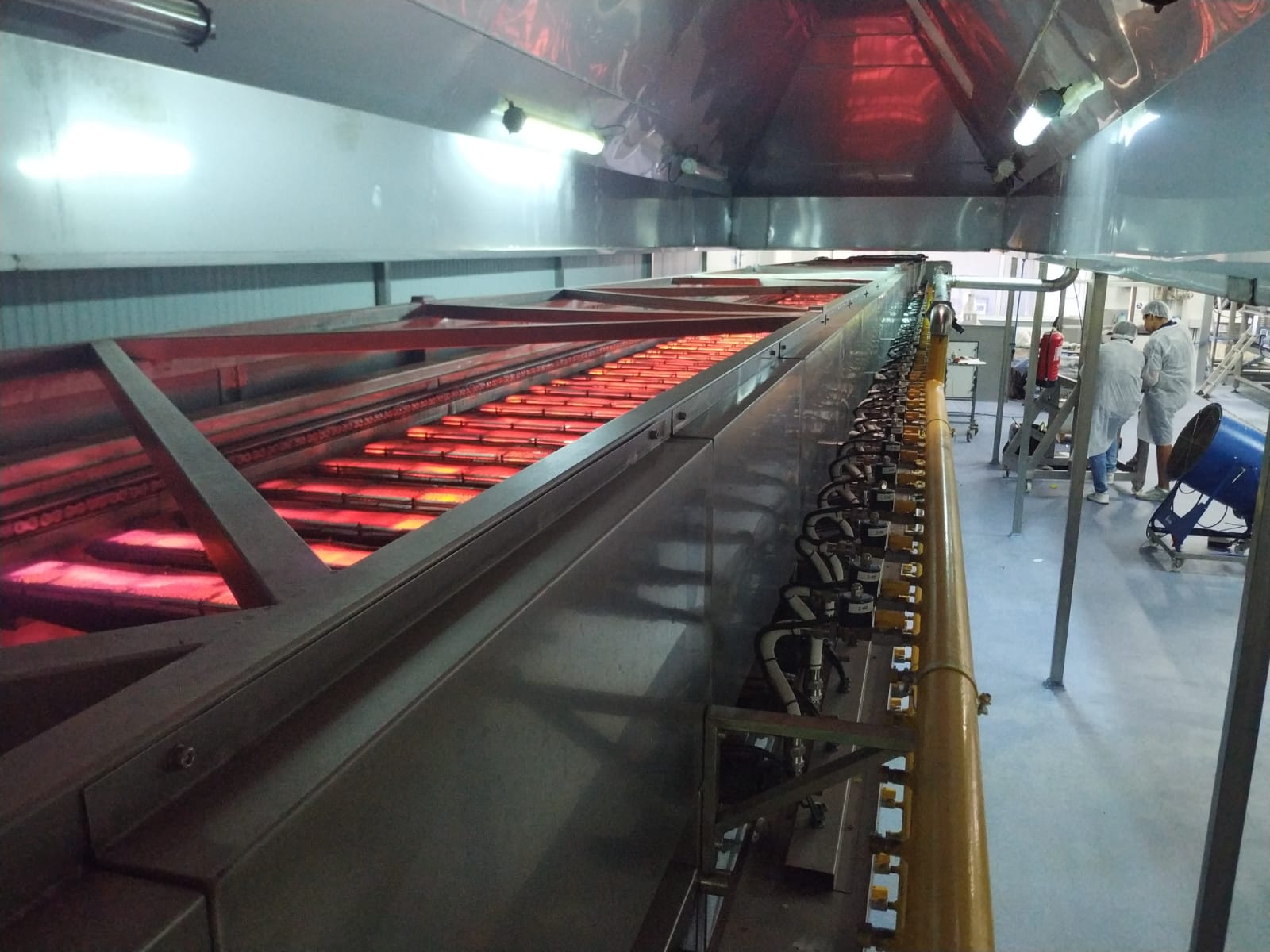

2.Food Baking:Snack puffed food such as biscuit,bread,cookies,egg roll,rice cake etc.;Dehydration of fruit,grain,vegetable,spice;Roasting for fish,duck,chicken,sausage and other meat.
3.Other Industrial Heating: Rubber/plastic thermal forming craft,paper drying,nonwoven fiber drying,mould preheating,glass anneal process,laundry cloth drying plant etc.

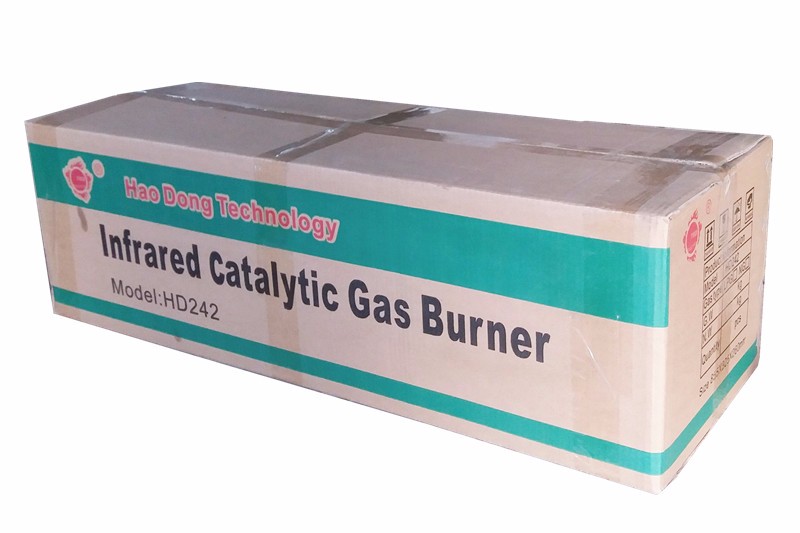

Industrial Infrared caralyst automatic Natural Gas Burner pakage

Selling Units: Single Item
Carton Size : 855x300x260mm
Single gross Weight: 29KG
Package Type: 2 Pieces packaged in one carton

1X20 FT CONTAINER,Iterm  HD262 quantities about 718-778pcs

1X40 FT  CONTAINER,Iterm HD262 quantities about 1619pcs

If you want use your own package ,  pls.contact  us in advance.

If you are interested in our products, welcome to contact us freely!!
We'll do our best to serve for you!!
