Industrial drying element infrared brass nozzle jet gas burners HD41

Industrial drying element infrared brass nozzle jet gas burners HD41

$24.00

100-499 Piece/Pieces
$21.00

≥500 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean

Port:: Any port of China.

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	5000 Piece/Pieces per Month
Payment Type:	L/C,T/T,Paypal
Transportation:	Ocean
Port:	Any port of China.

Product Description

Industrial drying element infrared brass nozzle jet gas burners details

There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.

Model	Dimension	Weight	Gas type	Heat Output		Consumption
Engine	mm	kg		KW/h	Kcal/h	NG (m3/h)	LPG (kg/h)
HD41	2808070	3.1	LPG/NG	2.1	1800	0.165	0.156
HD61	4238094	3.8	LPG/NG	2.4	2030	0.18	0.17
HD81	55580115	5.8	LPG/NG	3.1	2700	0.24	0.22
HD82	219164108	4.8	LPG/NG	3.1	2700	0.24	0.22
HD101	69080115	6.9	LPG/NG	3.9	3380	0.3	0.28
HD162	570130175	8	LPG/NG	6.3	5400	0.49	0.45
HD410	410175220	8	LPG/NG	6.3	5400	0.49	0.45
HD242	840130175	11.7	LPG/NG	9.4	8120	0.75	0.68
HD600	600175220	11.7	LPG/NG	9.4	8120	0.75	0.68
HD262	930130175	13	LPG/NG	10.9	9360	0.8	0.74

Materials:

1. Shell: Cast Iron
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
5.Working pressure: NG:2000~5000pa;LPG:2800~5000pa

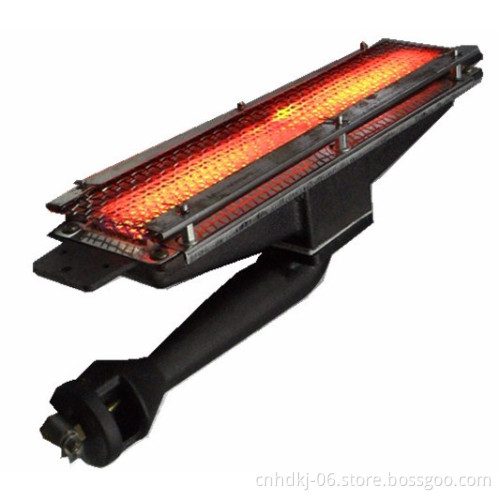

lpg burner photo
