Environmental protection industrial Infrared gas burner for exhaust gas treatment oven

Environmental protection industrial Infrared gas burner for exhaust gas treatment oven

$30.00 - $120.00/Piece/Pieces

Min. Order:: 2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	100000 Unit/Units per Year depending on the customer require
Payment Type:	L/C,T/T,Paypal, E-check, Ali-pay
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing, China

Product Description

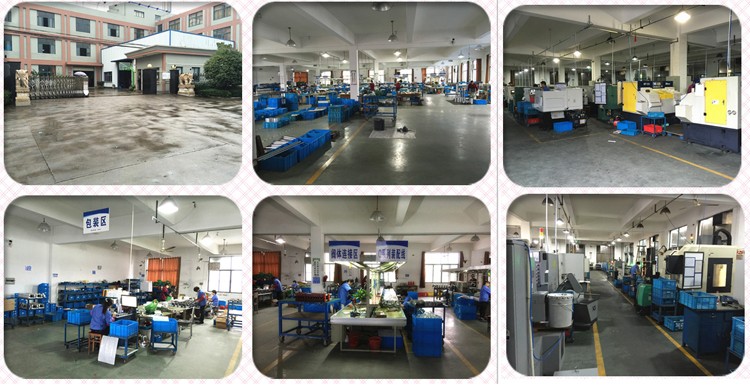

Our Company

Established in 2005, our company is a manufacturer ,specialized in the research, development and production of infrared catalytic gas burner and heater. We are located in chongqing with convenient transportation access.

Certifications

Product Description

There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, usually Industrial Infrared caralyst automatic Natural Gas Burner can save 10~20% gas energy and cost.our Industrial natural Gas burner .are very popular at home and abroad.

Infrared Catalyst Industrial Gas Burner Catalogue
MODEL	Dimension	Weight	Gas Type	Heat Output			Consumption
	mm	kg		KW/h	Kcal/hr	NG(m3/h)	LPG(kg/h)
HD61	4238094	3.8	NG/LPG	2.4	2030	0.18	0.18
HD82	219164108	4.8	NG/LPG	3.1	2700	0.24	0.24
HD101	69080115	6.9	NG/LPG	3.9	3380	0.3	0.29
HD162	570130175	8	NG/LPG	6.3	5400	0.49	0.47
HD410	410175220	8	NG/LPG	6.3	5400	0.49	0.47
HD242	840130175	11.7	NG/LPG	9.4	8120	0.75	0.71
HD600	600175220	11.7	NG/LPG	9.4	8120	0.75	0.71

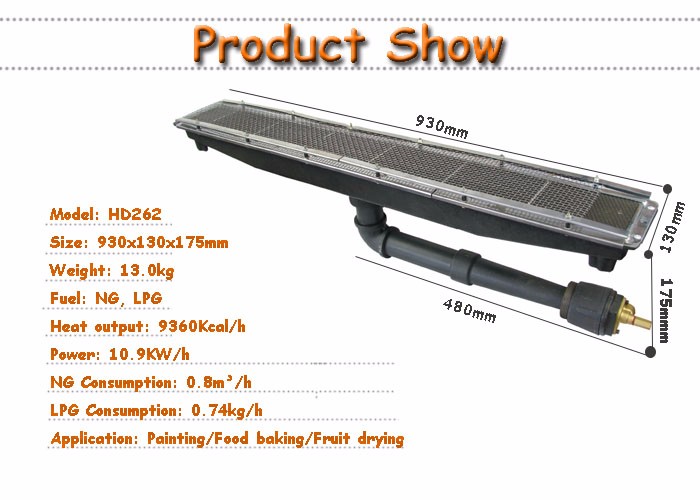

HD262	930130175	13	NG/LPG	10.9	9360	0.8	0.82

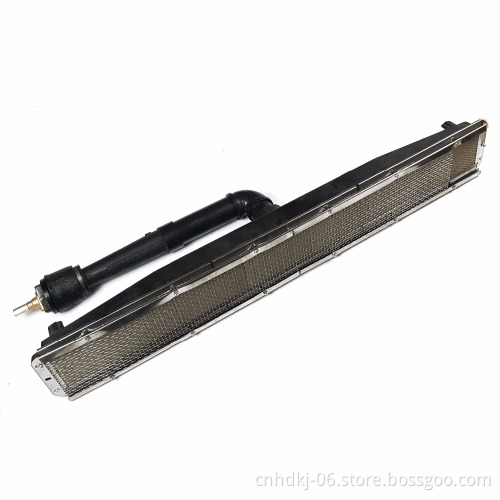

Detailed Image

Advantages

1. Widely used in low pressure (below 5 Kpa)

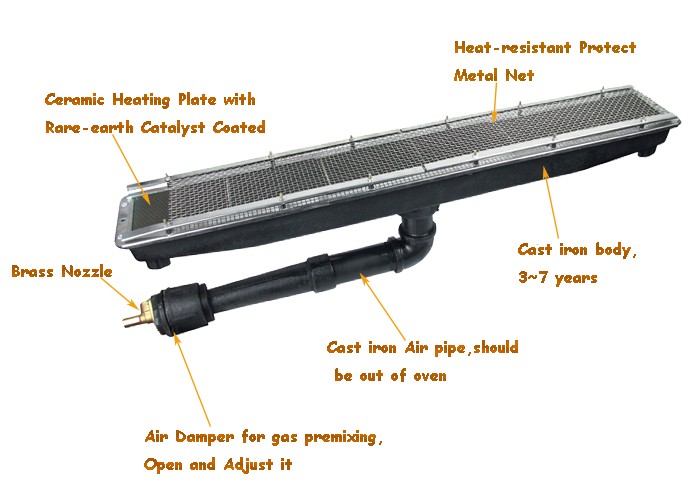

2. Adopting advanced technology of rare-earth catalyst on ceramic plate, about 20% gas will be saved.

3. Low gas consumption.
4. Much cheaper than metal fiber burner
5. Single product has separate control system, it will not influence work of each other

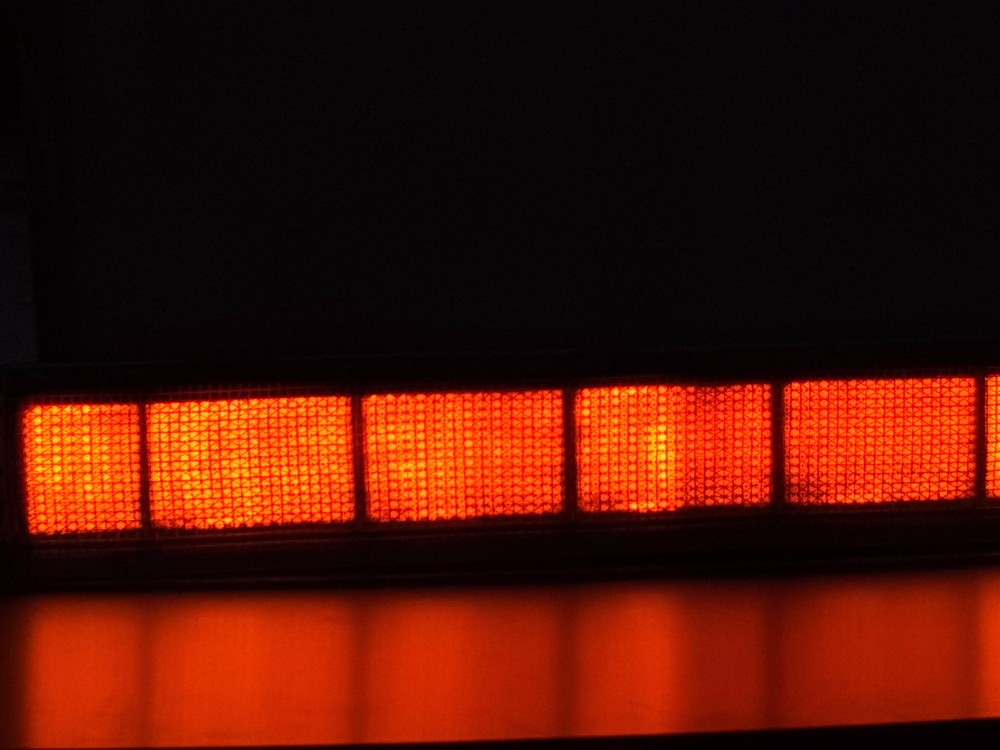

6. Flameless combustion, also suitable for powder products baking process
Energy saving:conversion rate:≥95%
Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
Long life:≥11000hr
Easily installed

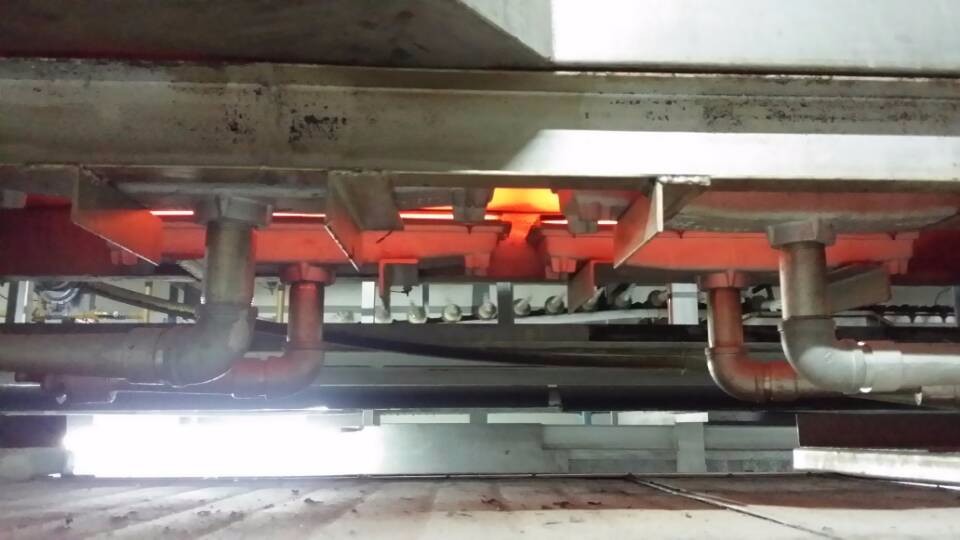

Installation Drawing

Notice
1. The inside casing measurement of oven should be confirmed when choose Industrial Infrared caralyst automatic Natural Gas Burner model.
2. The intake-tube (or air blast pipe) and shell body can't be installed in the oven but bared in the air.
3. It is gas & air pre-mixed type, if baring air damper into air is unavailable, pls leave some hole for enough air in.

It needs to leave a 4-5cm space between oven wall and ignition pin for maintenance; Also keep the pinpoint distance from burner ceramic surface 2~5mm.
4. A set of standard configuration of Industrial Infrared caralyst automatic Natural Gas Burner is infrared catalytic burner + ignition needle + pulse ignition + solenoid valves.
5. Any installed position is ok, but when the burner is on top or side, you should keep a 15° gradient between the wall and burner ceramic surface so that the heatwave will rise up smoothly.

Application

1.Indaustrial Surface Treatment:Liquefield/wet drying oven,spary painting oven, electrostatic powder coating oven,preheating treatment equipment etc.
2.Food Baking:Snack puffed food such as biscuit,bread,cookies,egg roll,rice cake etc.;Dehydration of fruit,grain,vegetable,spice;Roasting for fish,duck,chicken,sausage and other meat.
3.Other Industrial Heating: Rubber/plastic thermal forming craft,paper drying,nonwoven fiber drying,mould preheating,glass anneal process,laundry cloth drying plant etc.
