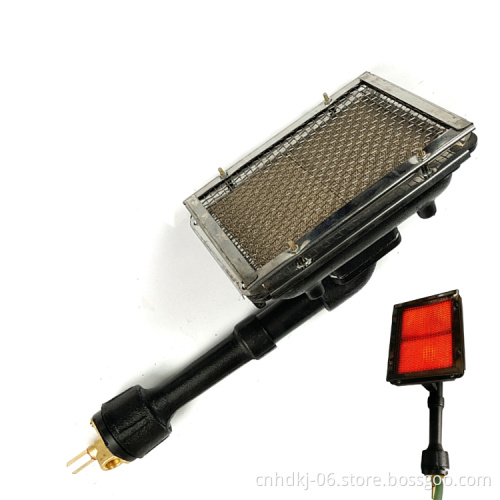

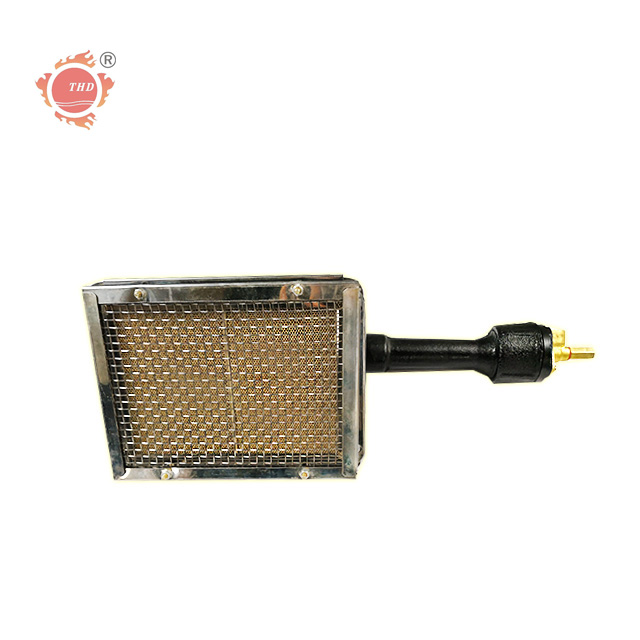

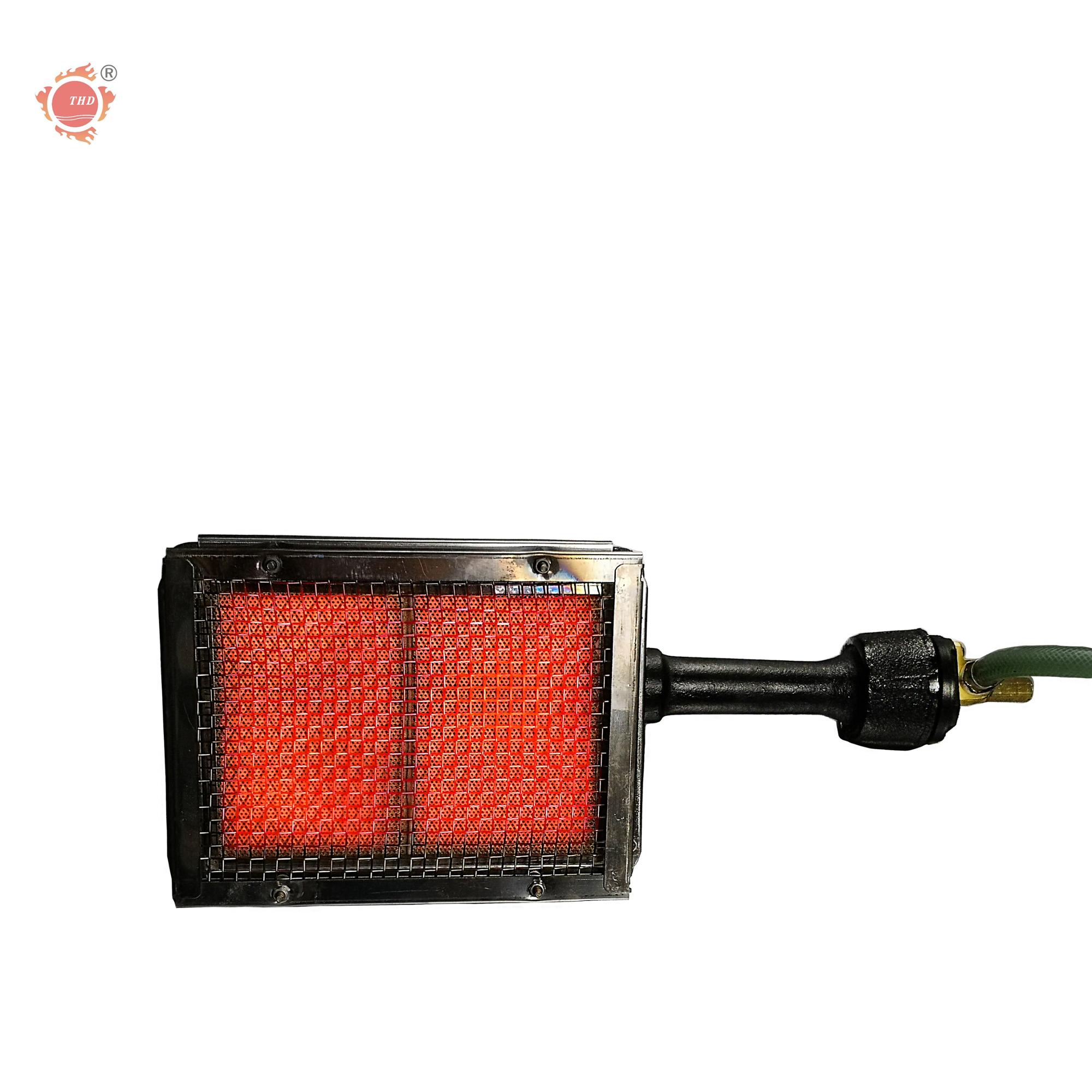

Automatic ignition industrial oven/line IR Radiant heater

ChongQing HaoDong Technology Co., Ltd has developed and produced successfullyautomatic ignition industrial IR Radiant heater, coating gas heater, foods drying and baking infrared gas burner. Drying process,heating at low and middle temperatures, warming, heat preservation and so on.

Our infared catalytic gas burner can save money for the users in process of producing and running and benefit the companies and the society a lot in economy and the environment protection.

1. Widely used in low pressure (below 6 Kpa)

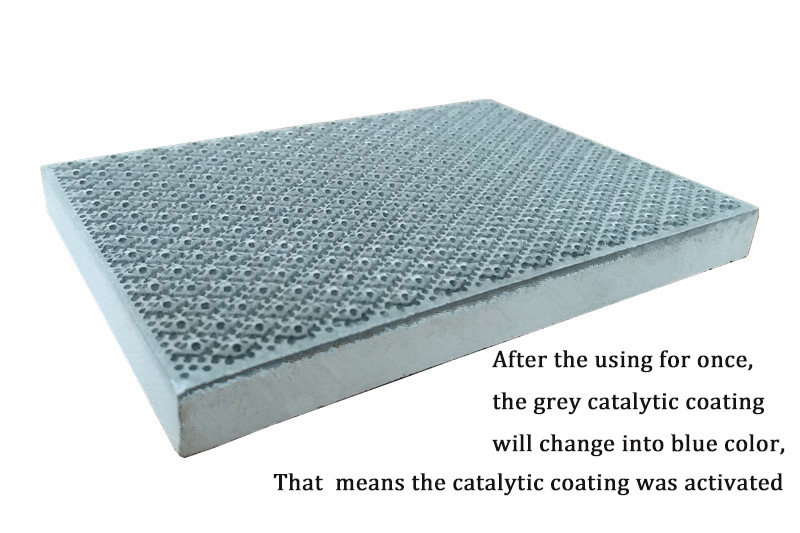

2. Adopting advanced technology of rare-earth catalyst on ceramic plate, about 10%~20% gas consumption

 will be saved.
3. Low gas consumption.
4. Even heating,
5. Much cheaper than metal fiber burner
6. Single product has separate control system, it will not influence work of each other
7. Flameless combustion, also suitable for powder products baking process
Energy saving:conversion rate:≥90%
Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
Long life:≥11000hr
Easily installed

 Notice
1. The inside casing measurement of oven should be confirmed when choose infrared catalytic burner model.
2. The intake-tube (or air blast pipe) and shell body can't be installed in the oven but bared in the air.
3. It is gas & air pre-mixed type, if baring air damper into air is unavailable, pls leave some hole for enough air in.

It needs to leave a 4-5cm space between oven wall and ignition pin for maintenance; Also keep the pinpoint distance from burner ceramic surface 2~5mm.
4. A set of standard configuration of infrared catalytic burner is infrared catalytic burner + ignition needle + pulse ignition + solenoid valves.
5. Any installed position is ok, but when the burner is on top or side, you should keep a 15° gradient between the wall and burner ceramic surface so that the heatwave will rise up smoothly.

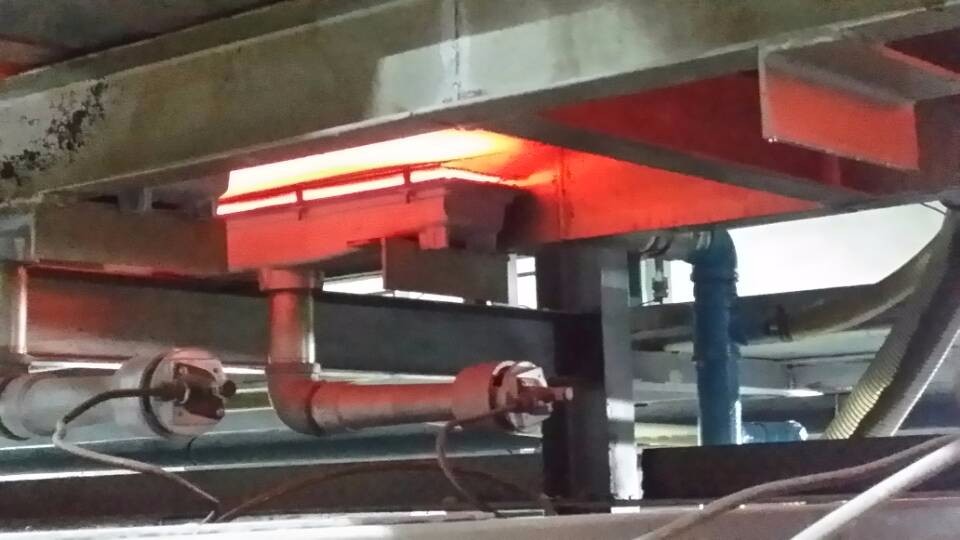

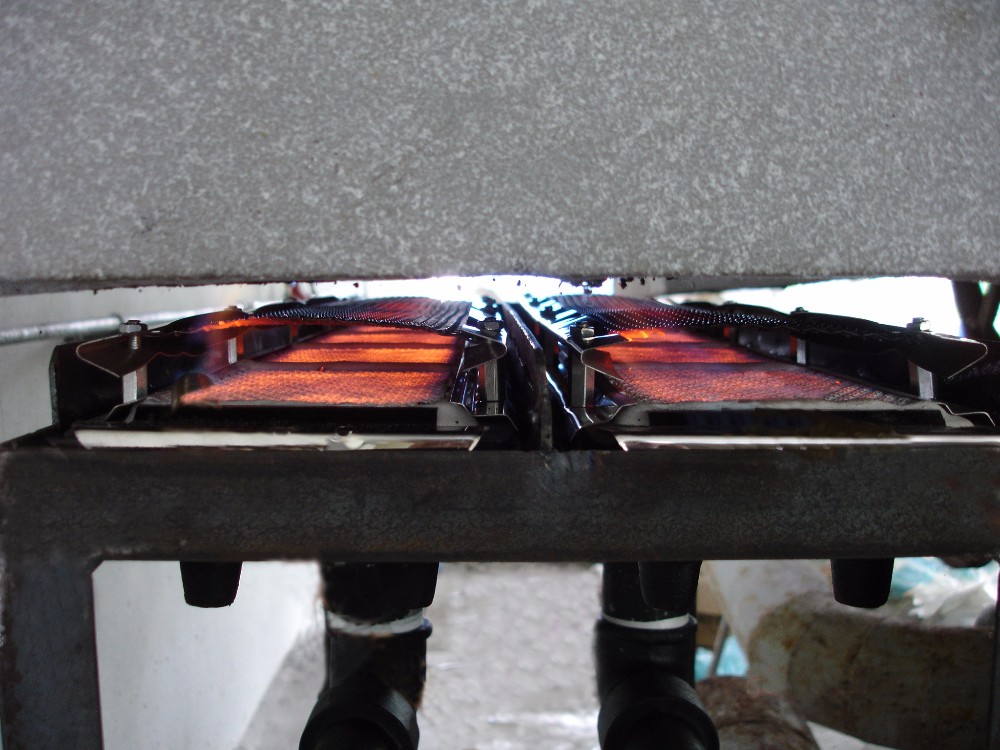

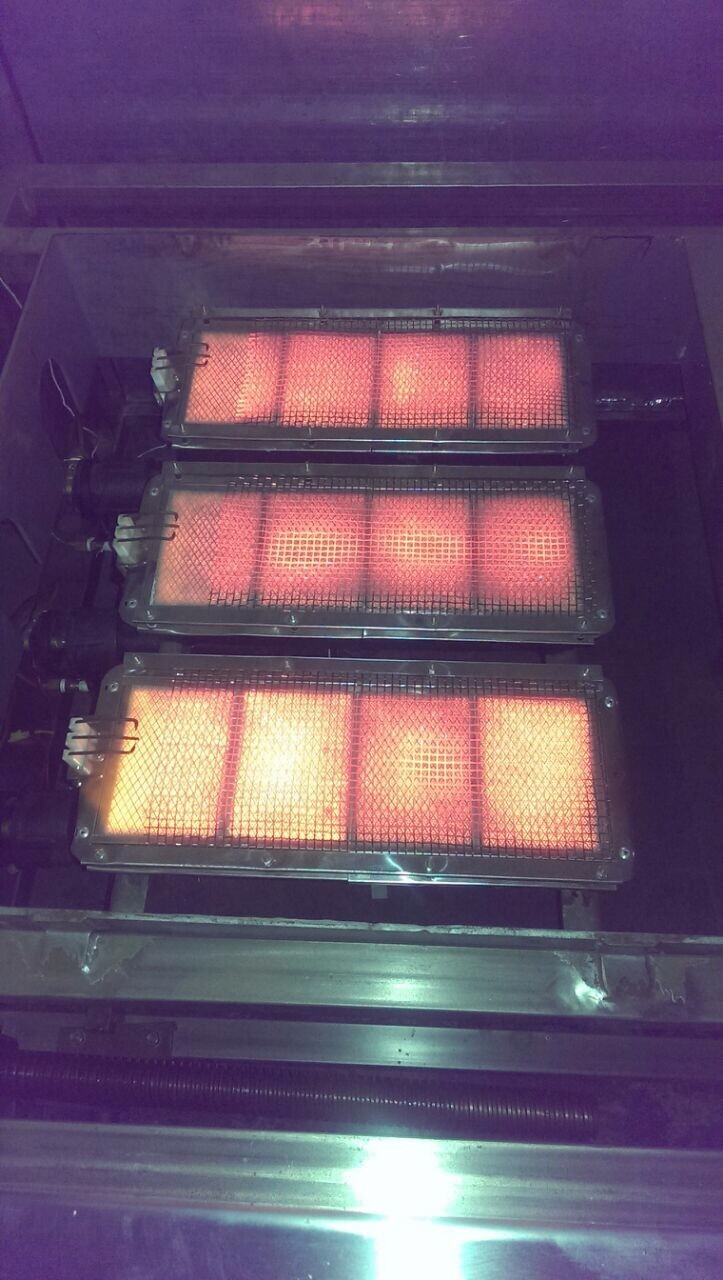

1.automatic ignition industrial IR Radiant heater Surface Treatment:Liquefield/wet drying oven,spary painting oven, electrostatic powder coating oven,preheating treatment equipment etc.
2.Food Baking:Snack puffed food such as biscuit,bread,cookies,egg roll,rice cake etc.;Dehydration of fruit,grain,vegetable,spice;Roasting for fish,duck,chicken,sausage and other meat.
3.Other Industrial Heating: Rubber/plastic thermal forming craft,paper drying,nonwoven fiber drying,mould preheating,glass anneal process,laundry cloth drying plant etc.

Industrial ceramic infrared gas heater HD82

Selling Units: Single Item
Carton Size : 219*164*108mm
Single gross Weight: 12.3KG
Package Type: 2 Pieces packaged in one carton
