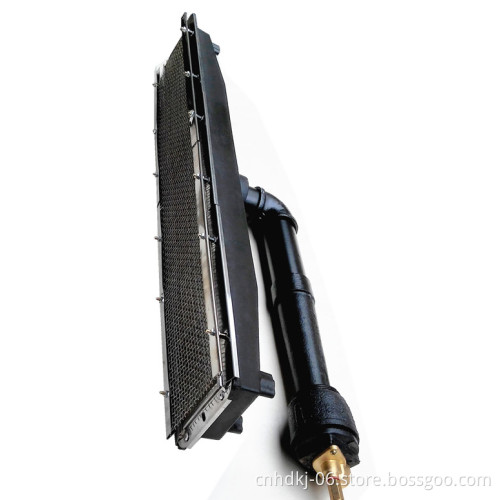

Professional baking oven infrared gas burners for pizza conveyor oven
Infrared gas burner specification:
| Model | Dimension | N.W | Gas Type | Material | Heat Output | Gas Consumption | ||
| L*W*H(mm) | KG | kw/h | Kcal/hr | NG(m3/h) | LPG(KG/h) | |||
| HD242 | 840*130*175 | 11.7 | NG/LPG | Cast iron,Ceramic plate | 9.4 |
8120 |
0.75 |
0.68 |
Other type gas burners specification:
| Model | Dimension | N.W | Gay Type | Material | Heat Output | Gas Consumption | ||
| L*W*H(mm) | kg | kw/h | kcal/h | NG(m3/h) | LPG(kg/h) | |||
| HD61 | 423*80*94 | 3.8 | NG/LPG/Propane | Cast iron,Ceramic plate | 2.4 | 2030 | 0.18 | 0.17 |
| HD81 | 555*80*115 | 5.8 | 3.1 | 2700 | 0.24 | 0.22 | ||
| HD82 | 219*164*108 | 4.8 | 3.1 | 2700 | 0.24 | 0.22 | ||
| HD101 | 690*80*115 | 6.9 | 3.9 | 3380 | 0.3 | 0.28 | ||
| HD162 | 570*130*175 | 8 | 6.3 | 5400 | 0.49 | 0.45 | ||
| HD242 | 840*130*175 | 11.7 | 9.4 | 8120 | 0.75 | 0.68 | ||
| HD262 | 930*130*175 | 13 | 10.9 | 9360 | 0.8 | 0.74 | ||
Product advantage:
1.Fast heating and flameless,start to work in 8 seconds.
2.Gas saving more than 20%.
3.Less Carbon monoxide and NOx pollution,less noise.
4.Can be used longer,about 11000 hours.
Working principle:
- These infrared gas burners can be ignition by electric pulse igniter,the igniter also can control solenoid valve to make gas open or shut off,all igniters can be connected in one control box.
Application:
Black catalytic coating on the ceramic honeycomb plates:
Packing Details:
Please send us inquiry for more information
