Industrial surface treatment infrared LPG gas heater

Established in 2005, our company is a manufacturer, specialized in the research, development and production of infrared catalytic ceramic gas burner&heater. Applications include ovens, furnaces, powder coating, food baking and industrial surface treatment, poultry farm heating, BBQ grill etc.

Our infrared catalytic ceramic gas burner covered with rare earth catalyst on the surface of the ceramic tile, which can save 20% gas energy.

1. Widely used in low pressure(2800pa-5000pa)

2. Adopting advanced technology of rare-earth catalyst on ceramic plate, about 20% gas consumption

 will be saved.
3. Low gas consumption.
4. Much cheaper than metal fiber burner
5. Single product has separate control system, it will not influence work of each other
6. Flameless combustion, also suitable for powder products baking process
Energy saving:conversion rate:≥90%
Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
Long life:≥11000hr
Easily installed

Notice
1. The inside casing measurement of oven should be confirmed when choose food baking Industrial surface treatment infrared lpg heaters model.
2. The intake-tube (or air blast pipe) and shell body can't be installed in the oven but bared in the air.
3. It is gas & air pre-mixed type, if baring air damper into air is unavailable, pls leave some hole for enough air in.

It needs to leave a 4-5cm space between oven wall and ignition pin for maintenance; Also keep the pinpoint distance from burner ceramic surface 2~5mm.

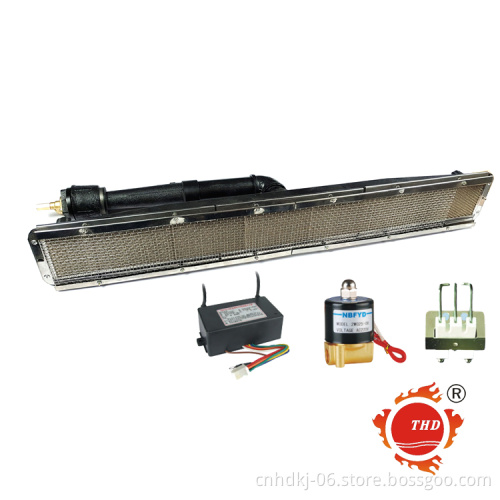

4. A set of standard configuration of Industrial Infrared powder coating gas stove heater is infrared catalytic burner + ignition needle + pulse ignition + solenoid valves.
5. Any installed position is ok, but when the burner is on top or side, you should keep a 15° gradient between the wall and burner ceramic surface so that the heatwave will rise up smoothly.

 application scope

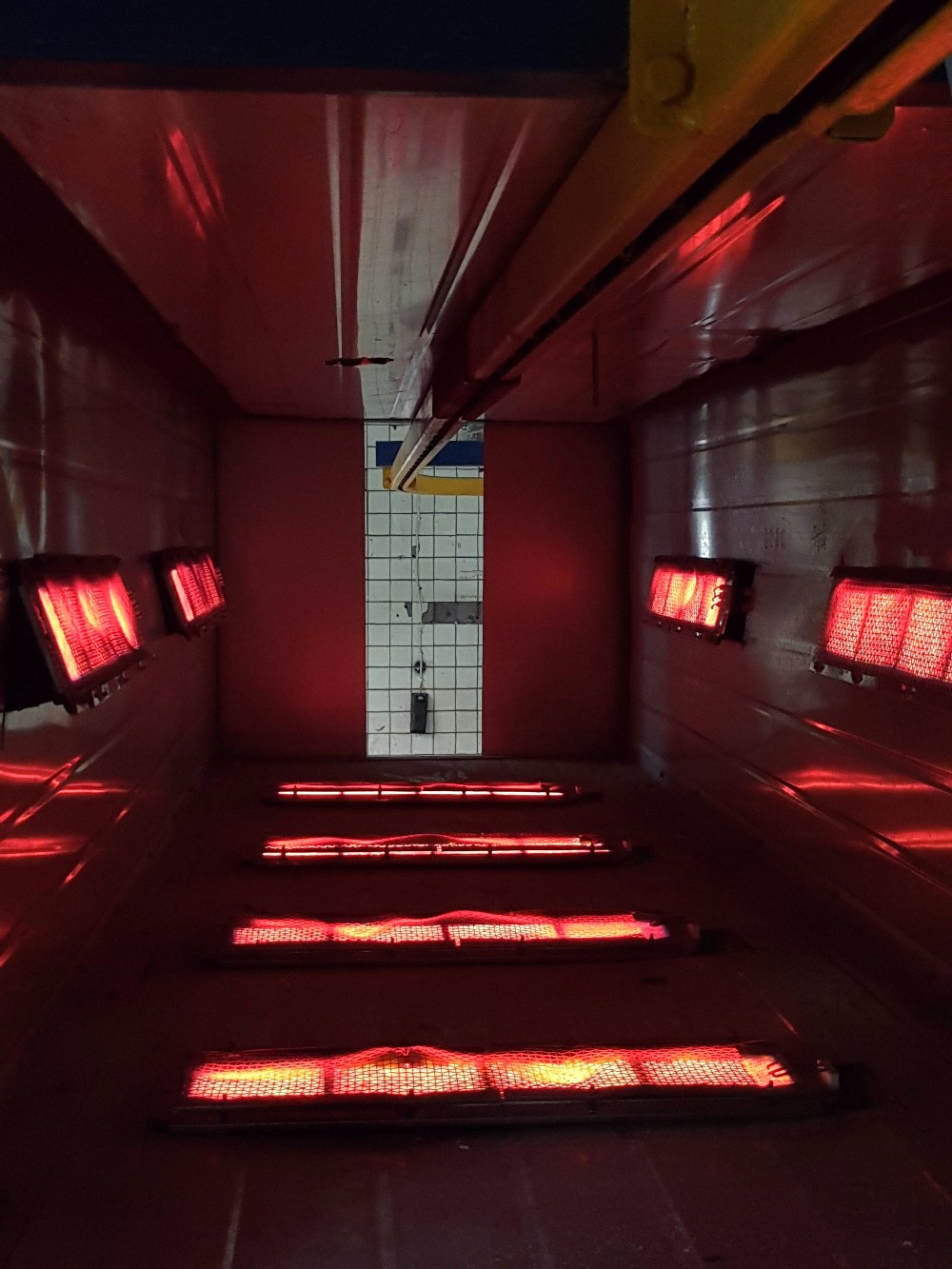

1.Indaustrial Surface Treatment:Liquefield/wet drying oven,spary painting oven, electrostatic powder coating oven,preheating treatment equipment etc.
2.Food Baking:Snack puffed food such as biscuit,bread,cookies,egg roll,rice cake etc.;Dehydration of fruit,grain,vegetable,spice;Roasting for fish,duck,chicken,sausage and other meat.
3.Other Industrial Heating: Rubber/plastic thermal forming craft,paper drying,nonwoven fiber drying,mould preheating,glass anneal process,laundry cloth drying plant etc.

food baking Industrial surface treatment infrared lpg heaters

Selling Units: Single Item
Carton Size : 855x300x260mm
Single gross Weight: 29KG
Package Type: 2 Pieces packaged in one carton
