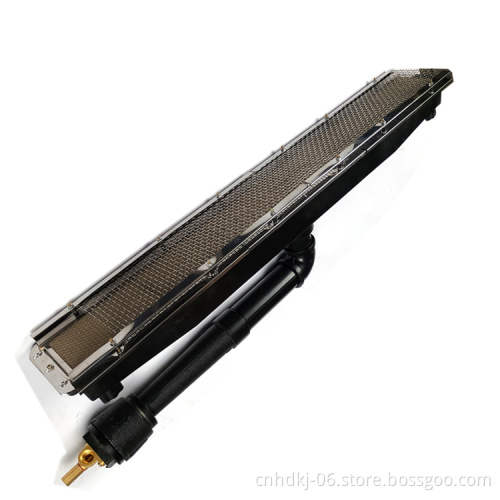

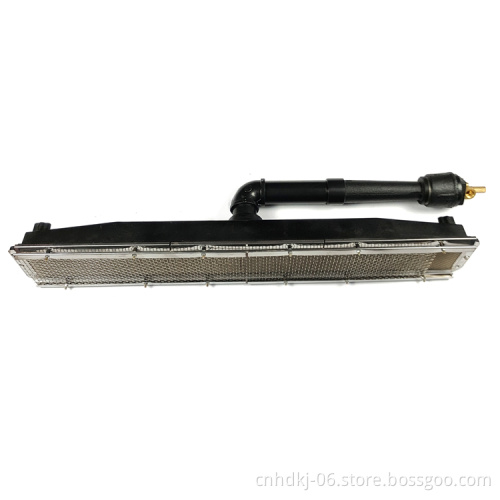

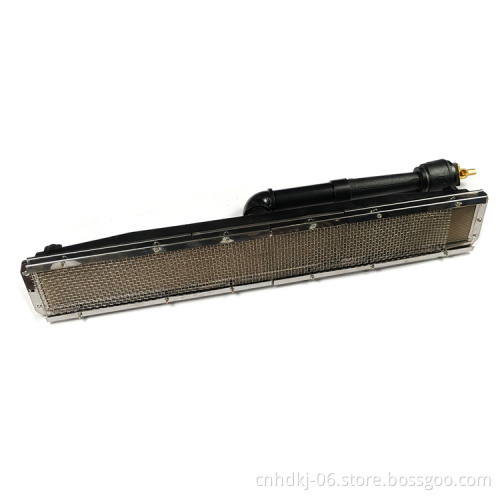

HD242 cast iron infrared gas burner for fish vegetable fruit drying dehydration

HD242 cast iron infrared gas burner for fish vegetable fruit drying dehydration

$30.00 - $90.00/Piece/Pieces

Min. Order:: 2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	50000 Unit/Units per Year
Payment Type:	L/C,T/T,Paypal, E-check
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing, China

Product Description

Certifications

Product Description

There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big.

But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, infrared gas burner can save 20% gas energy and cost. HD242 cast iron infrared gas burner for drying fish are very popular at home and abroad market.

Infrared Catalyst Industrial Gas Burner Catalogue
MODEL	Dimension	Weight	Gas Type	Heat Output			Consumption
	mm	kg		KW/h	Kcal/hr	NG(m3/h)	LPG(kg/h)
HD61	4238094	3.8	NG/LPG	2.4	2030	0.18	0.18
HD82	219164108	4.8	NG/LPG	3.1	2700	0.24	0.24
HD101	69080115	6.9	NG/LPG	3.9	3380	0.3	0.29
HD162	570130175	8	NG/LPG	6.3	5400	0.49	0.47
HD410	410175220	8	NG/LPG	6.3	5400	0.49	0.47

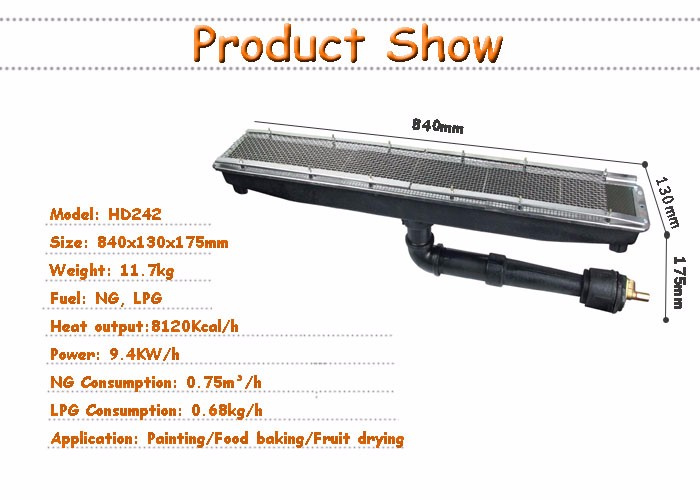

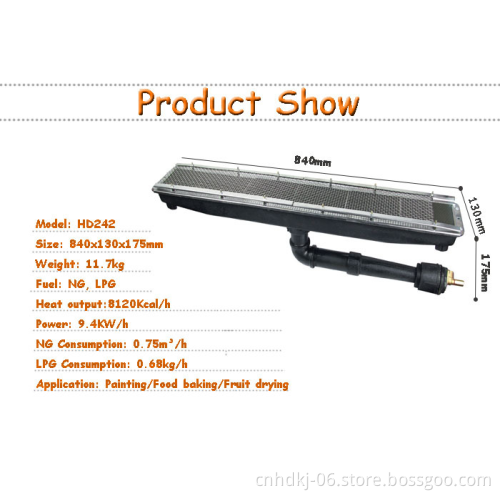

HD242	840130175	11.7	NG/LPG	9.4	8120	0.75	0.71
HD600	600175220	11.7	NG/LPG	9.4	8120	0.75	0.71
HD262	930130175	13	NG/LPG	10.9	9360	0.8	0.82

Advantages

1. Widely used in low pressure (below 6 Kpa)

2. Adopting advanced technology of rare-earth catalyst on ceramic plate, about 10%~20% gas consumption

will be saved.
3. Even heating,
4. Much cheaper than metal fiber burner
5. Single product has separate control system, it will not influence work of each other
6. Flameless combustion, also suitable for powder products baking process
Energy saving:conversion rate:≥90%
Environmental protection:CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Taking full usage of heat:95% of energy released in the form of infrared ray ;heating the objects directly
Long life:≥11000hr
Easily installed

Application

cast iron ceramic infrared gas burner application scope
1.Indaustrial Surface Treatment:Liquefield/wet drying oven,spary painting oven, electrostatic powder coating oven,preheating treatment equipment etc.

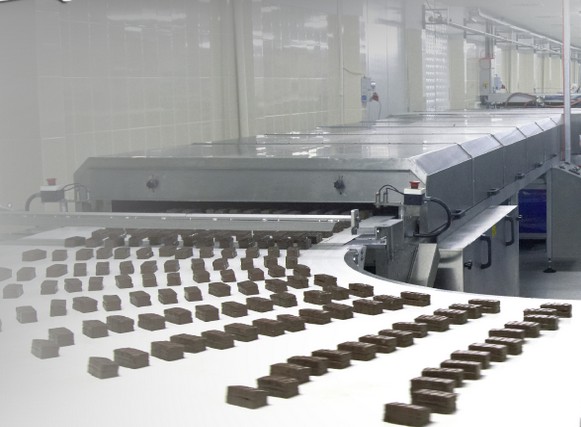

2.Food Baking:Snack puffed food such as biscuit,bread,cookies,egg roll,rice cake etc.;Dehydration of fruit,grain,vegetable,spice;Roasting for fish,duck,chicken,sausage and other meat.
3.Other Industrial Heating: Rubber/plastic thermal forming craft,paper drying,nonwoven fiber drying,mould preheating,glass anneal process,laundry cloth drying plant etc.

Packing & Delivery
