LPG,Gas Industrial Infrared IR Catalytic Burner,Heater for Powder Coating Oven and Paint Drying Oven HD262

LPG,Gas Industrial Infrared IR Catalytic Burner,Heater for Powder Coating Oven and Paint Drying Oven HD262

$77.00

1-9 Set/Sets
$73.00

10-49 Set/Sets
$66.00

≥50 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Products Description

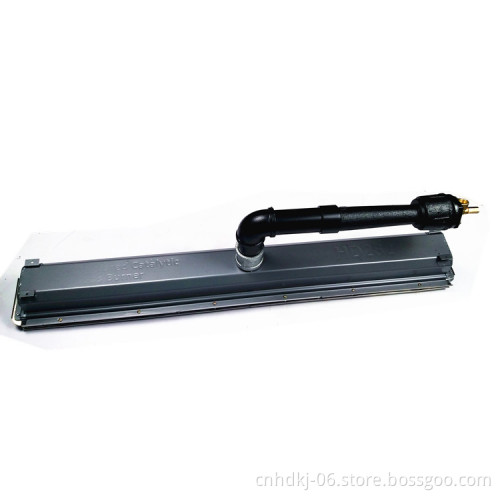

Infrared Ceramic Catalytic Gas,LPG Industrial Burner,Heater for Industrial Drying Oven HD262

Haodong Infrared Burner covers a process rare earth as catalyst, make the flameless

burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.

Gas Infrared Burner Technical Parameters

SN	Items	Technical Parameters
1	Kinds of Gas	NG/LPG/Oil Field Gas/Artificial Gas
2	Perfect Combustion Temperature	≤380℃
3	Heat Source Temperature	850℃
4	Heating-up Temperature Range	35℃-380℃
5	Wavelength Range	4 um -15 um
6	Working Pressure	2000pa(NG)~5000pa 2800pa(LPG)~~5000pa
7	Life Span	Above 11000hrs
8	Waste Gas Emission	CO≤80ppm;NOx≤10ppm;CHx≤50ppm
9	Conversion Rate	Above 90%

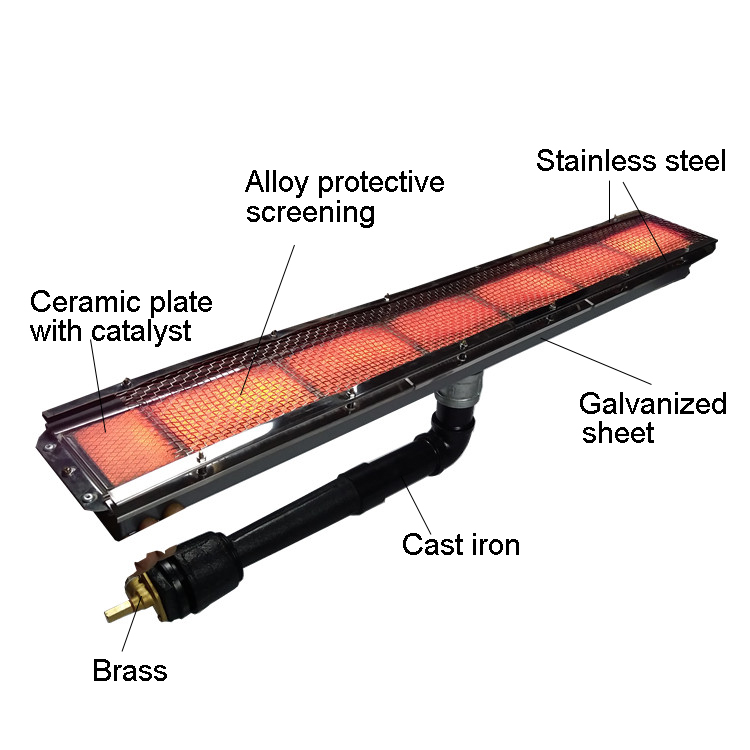

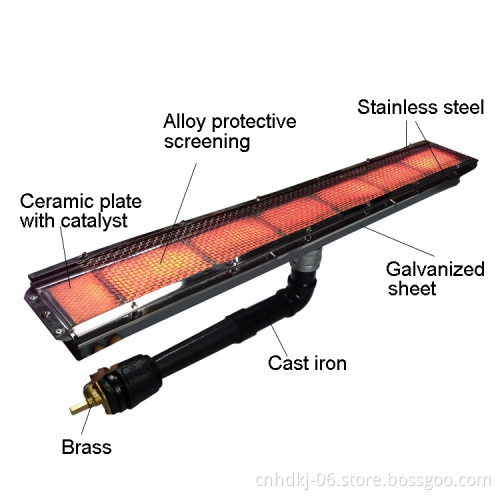

Gas Industrial Infrared Burner,Heater Main Material:

1. Shell Body: Cast Iron,Galvanized Sheet
2. Air blast pipe: Cast Iron
3. Radiant Part: Rare earth ceramic heating part
4. Nozzle: Brass
5. Up cover: Stamped stainless iron

Gas Industrial Infrared Burner,Heater Main Specification:

Model	Outer Dimension	Weight	Gas Type	Heat Output			Consumption
	mm	kg		KW/h	Kcal/hr	NG(m3/h)	LPG(kg/h)
FY41	2808070	3.1	NG/LPG	2.1	1800	0.165	0.156
HD61	4238094	3.8	NG/LPG	2.4	2030	0.18	0.17
HD81	55580115	5.8	NG/LPG	3.1	2700	0.24	0.22
HD82	219164108	4.8	NG/LPG	3.1	2700	0.24	0.22
HD101	69080115	6.9	NG/LPG	3.9	3380	0.3	0.28
HD162	570130175	5.9	NG/LPG	6.3	5400	0.49	0.45
HD410	410175220	8.1	NG/LPG	6.3	5400	0.49	0.45
HD242	840130175	7.3	NG/LPG	9.4	8120	0.75	0.68
HD600	600175220	10.5	NG/LPG	9.4	8120	0.75	0.68

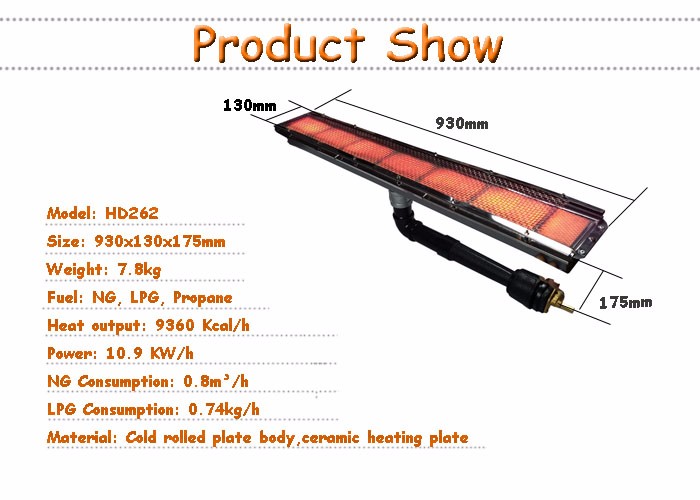

HD262	*930130175*	7.8	NG/LPG	10.9	9360	0.8	0.74

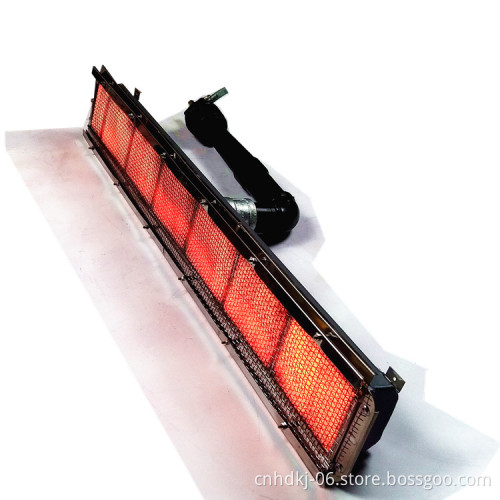

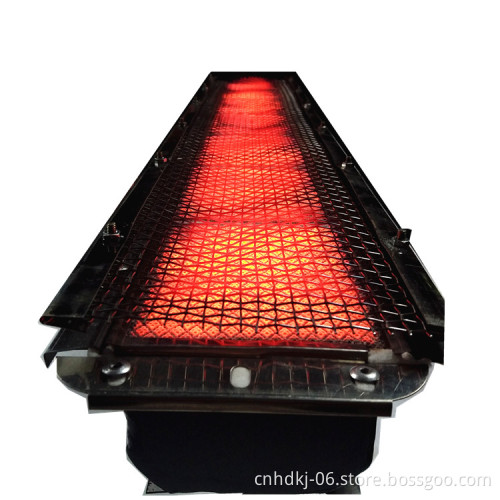

Details Images

Our Advantages

1.High energy transfer rate:above 95%,other gas burner only 75%-80%
2.High Efficiency:start work in 8 seconds
3.Individual operation:Each burner has individual ignition control system,some problem will not affect other burner’s working
4.IR heating directly : heat direct by Radiant Infrared Ray,no need combusion chamber ,blower
5.Environment protecting: Low pollution

More products

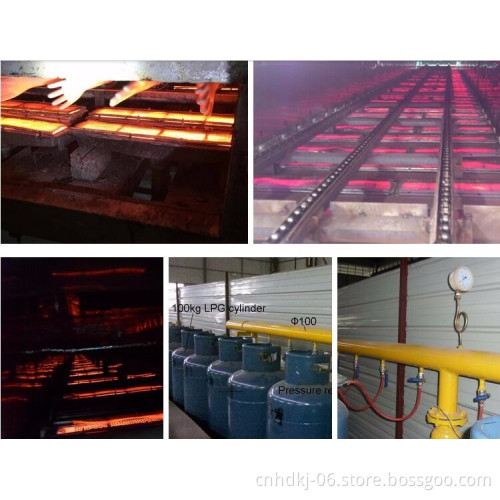

Appliation

This infrared gas burner fits for:

Drying oven - animal foods, cereal and vegetable crops.
Curing oven - dry powder and wet paint coating applications, including stove enamelling and vitreous enamel
Plastic shrink wrapping.
Heat walls - for textile, carpet and paper drying.
Heat treatment ovens.
Forced draught installations - fabrication,pre-heating.
Foundry mould and core drying.
Die heating.
Ceramic holloware and flatware - prior/post glazing.
Metal billet heating.
Metal annealing.
Rubber&plastic forming,glass anneal process,nonwoven fiber drying.
