Ceramic plate infra-red gas heater for chick broiler farm

Ceramic plate infra-red gas heater for chick broiler farm

$68.00

10-99 Piece/Pieces
$64.00

100-299 Piece/Pieces
$55.00

≥300 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Chonqging

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	3000 Piece/Pieces per Month
Payment Type:	L/C,T/T,paypal
Transportation:	Express,Ocean,Land,Air
Port:	Chonqging

Product Description

Ceramic plate infra-red gas heater for chick broiler farm

Infrared body offers cost effective and can install in all direction. Our infrared plaques (Ceramic fiber, Cordierite and Cordietire REE) offer high intensity medium-long wave and low gas consumption up to 20%

It widly be used in the farm to keep the livestock warm.

Burner catalogue

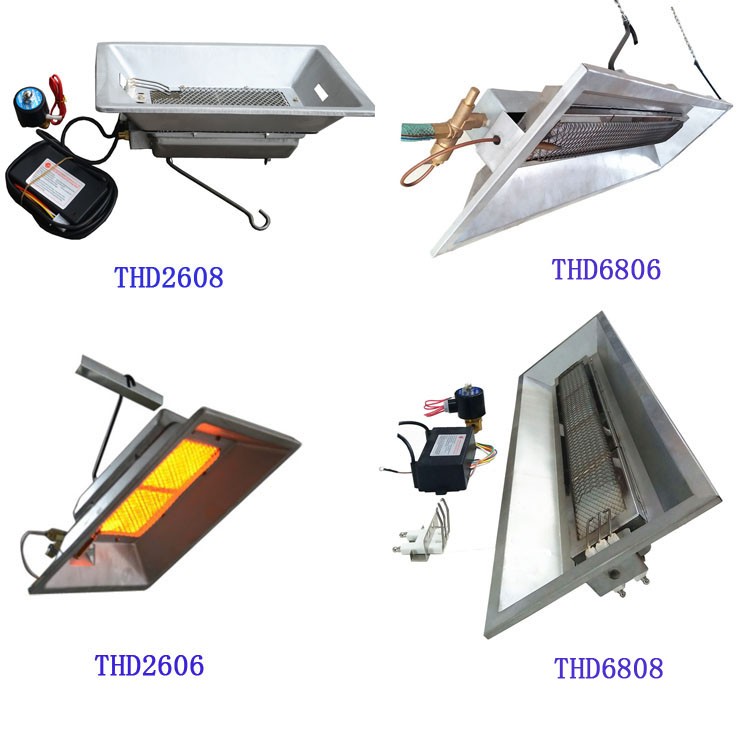

We have different model ofCeramic plate infra-red gas heater for chick broiler farm with different size, please feel free to ask as if not sure which size suit for you.

Model	weight	Dimension	Gas Consumption			Heat Output
	KG	mm	NG(m3/h)	LPG(KG/h)	KW/h	Kcal/h
Manual ignition
THD2606	1.7	heater cover 320279130 ceramic plate 188*135	0.2	0.15	2.9	2500
THD6806	2.8	heater cover 67523595 ceramic plate 500*68	0.42	0.29	3.9	3400
Electric ignition

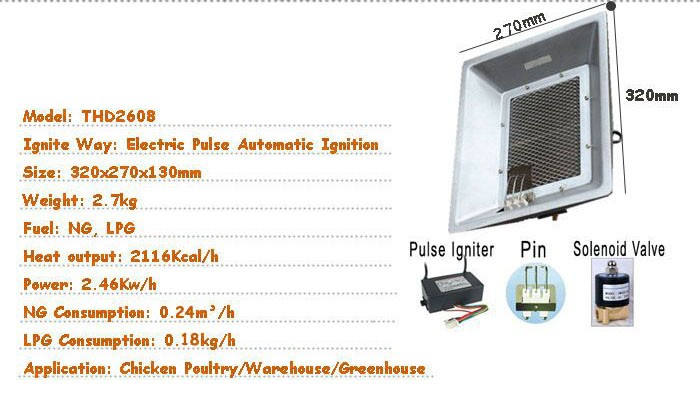

THD2608	2.7	heater cover 320279130 ceramic plate 188*135	0.2	0.15	2.9	2500
THD6808	3.7	heater cover 67523595 ceramic plate 500*68	0.42	0.29	3.9	3400
		Electric pulse igniter	220VAC/50hz or 110VAC/60hz
		ignition pin	3-pin type
		soelnoid valve	220VAC/50hz or 110VAC/60hz

Use Guide

The poultry gas brooder use guide:

There are manual ignition and automatical ignition type for this poultry gas brooder, 1 gas heater could supply heat for 25 sqm and about 600~800 chicks.
Gas heater installation height from ground is about 1~1.5m.

Detailed Images

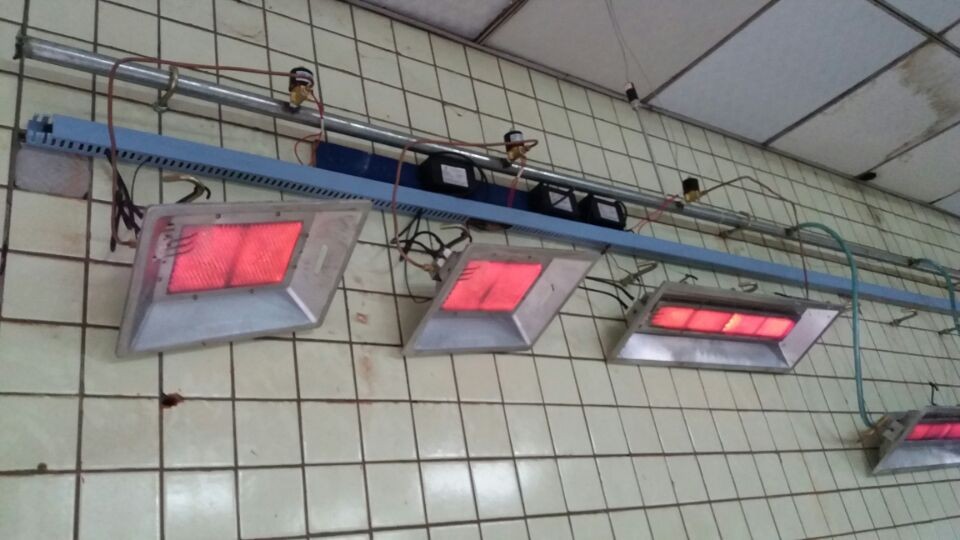

Burner Usage

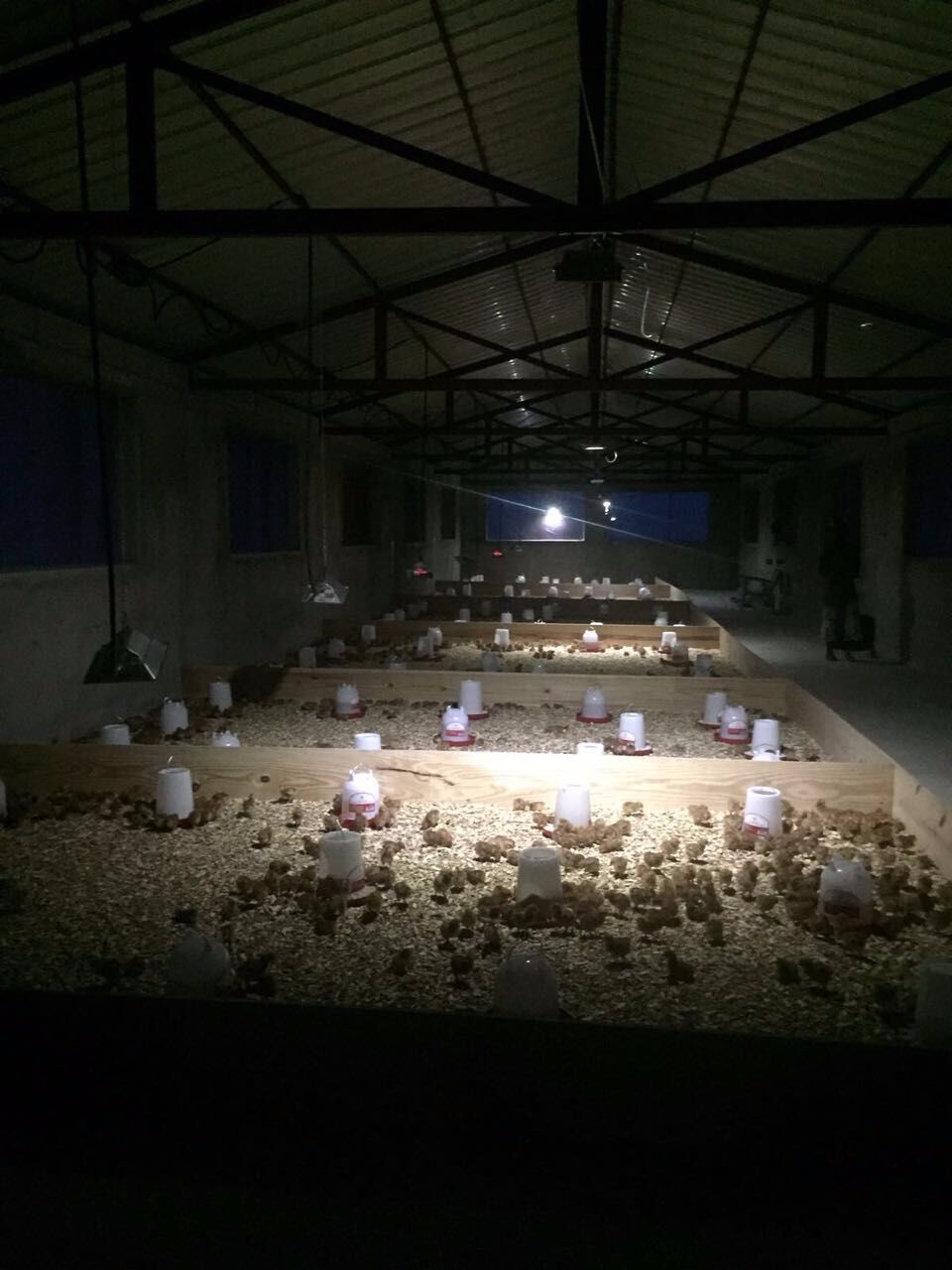

The broiler gas brooder be used in the farm

for chicken farm warming

The broiler gas brooder

The heater be used in the our door with electric ignition

Outdoor infrared gas heater

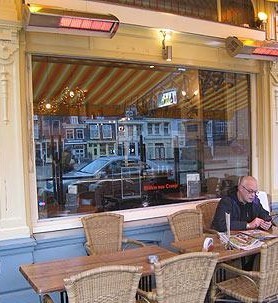

The gas heater be used in the coffee shop

Infrared gas burner are various applications recommend for infrared system such as infrared grill & cooking, paint baking oven, industrial surface treatment, infrared brooder, asphalt road repair and ect.

Our Company

Chonqqing Haodong Technology co.,ltd

hongqing Haodong Technology Co., Ltd was established in March 2005, over 11 years we focus on infrared catalytic combustion technology promotion and application in industrial and civil fields. To electric heater, our infrared catalytic gas burner will save 15%~20% operating cost for customers.

Golden customers from USA, Germany, Colombia, Venezuela, Brazil, Mexico, Australia, India, Philippines, Malaysia, Indonesia and other 20 countries and regions, so appreciated with good reputation.
