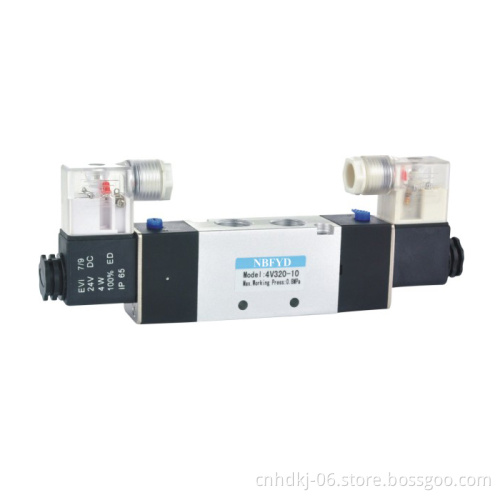

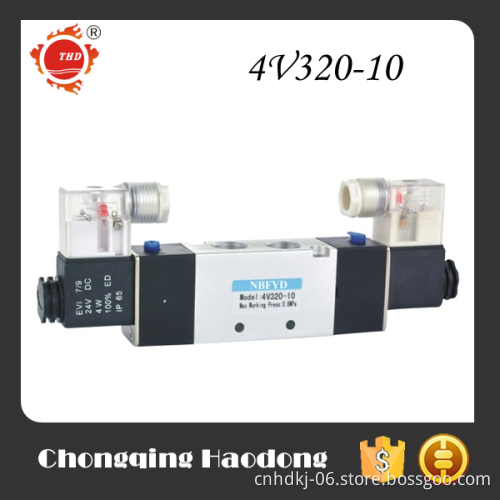

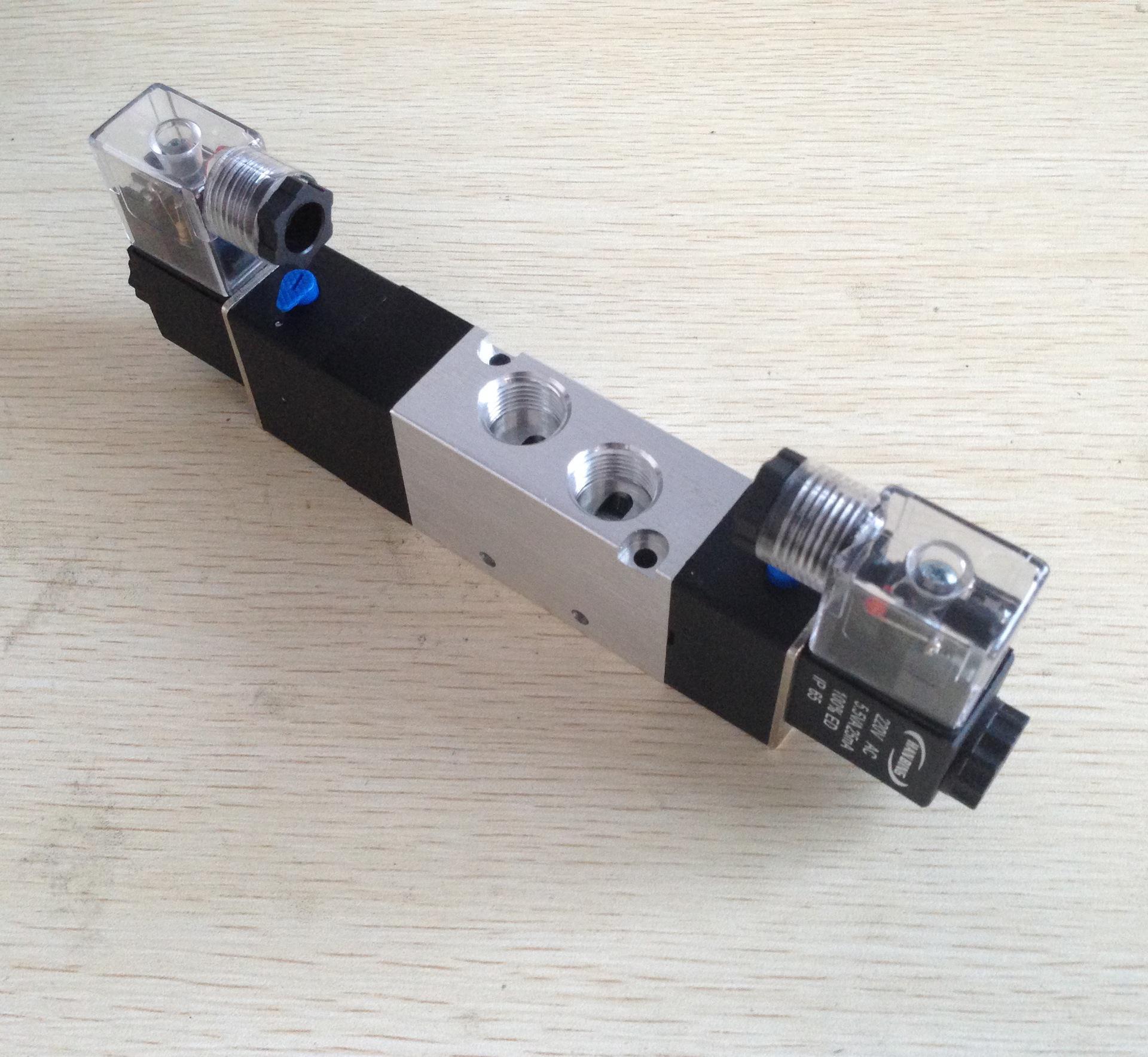

4V320-10-DC 12V 3/8" NPT 4 Way 2 Position Double Solenoid Valve
- Min. Order:
- 10 Unit
- Min. Order:
- 10 Unit
- Transportation:
- Ocean
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 100000 Piece/Pieces per Month |
|---|---|
| Payment Type: | T/T |
| Transportation: | Ocean |
| Port: | Shenzhen |
4V210-08-AC 24V 1/4" NPT 4W/2P Solenoid Directional Valve
Our 4 Way 2 Position valves feature 5 ports on the valve body. These valves are commonly used for double acting cylinders in which the energized air output ports switch between Output and Exhaust function. The valves in this series requires a minimum of 22 PSI to operate.
Markings on Valve Body:
P: Supply Port
A: Energized Air Output
B: Energized Air Output
R: Exhaust Port (Exhaust for A Port)
S: Exhaust Port (Exhaust for B Port)
The 4 Way 2 Position Valve; has two states
Neutral/Power Off/1st Position: The Supply Port (P) allows air to flow to Energized Air Output Port (A). Then Port (B) is connected to the Exhaust Port (S). Commonly used to retract the piston of a double acting cylinder to the starting position.
Energized/Power On/2nd Position: The Supply Port (P) port allows air to flow to Energized Air Output Port (B). Then Port (A) is connected to the Exhaust Port (R). Commonly used to extend the piston of a double acting cylinder to the extreme extended position.
(You can also reverse the hook up of Port A and Port B if you wish for your work piece to operate differently.)
Product Specifications:
| Category | Pneumatic Valves |
| Type | 5 Ports 4 Way 2 Position single solenoid valve with spring return,manual override |
| Model | 4V320-10 DC 12V |
| Coil | DC 12V,LED light |
| Ports | 3/8" NPT |
| Exhaust | 1/4" NPT |
| Folw rate | 0.89 |
| Pressure | 22-116 PSI |
| Body Material | Aluminum |
Features:
Effective Section Area:16mm² (CV=0.89)
Air Inlet=Air Outlet=3/8"NPT ; Exhaust=1/4"NPT
Working Media:40 Micron Filtered Air
Motion Pattern:Inner Guide Type
Operating Pressure:22-116 PSI
Max. Pressure Resistance:174 PSI
Operating Temperature:5 to + 50ºC / 41-122ºF
Allowable Voltage Fluctuations:±10% of Rated Voltage
Power Consumption AC: 5.5VA / DC: 4.8W
Insulation and Protection Class:F Class / IP65
Wiring Form Lead:Wire or Connector Type
Highest Action Frequency:5 Cycles/Second
Shortest Excitation Time:0.05 Second
List of Available Model
| Model | Description | Type | Connection | Port Size | Exhaust | Voltage |
| 4V210-08 | 5 Ports 4 Way 2 Position Valve | Single Solenoid | DIN Connector | 1/4" NPT | 1/8" NPT | 380V AC 220V AC 110V AC 36V AC 24V AC 24V DC 12v DC |
| 4V220-08 | 5 Ports 4 Way 2 Position Valve | Double Solenoid | DIN Connector | 1/4" NPT | 1/8" NPT | |
| 4V230C-08 | Double Solenoid | DIN Connector | 1/4" NPT | 1/8" NPT | ||
| 4V310-10 | 5 Ports 4 Way 2 Position Valve | Single Solenoid | DIN Connector | 3/8" NPT | 1/4" NPT | |
| 4V320-10 | 5 Ports 4 Way 2 Position Valve | Double Solenoid | DIN Connector | 3/8" NPT | 1/4" NPT | |
| 4V330C-10 | Double Solenoid | DIN Connector | 3/8" NPT | 1/4" NPT | ||
| 4V410-15 | 5 Ports 4 Way 2 Position Valve | Single Solenoid | DIN Connector | 1/2" NPT | 1/2" NPT | |
| 4V420-15 | 5 Ports 4 Way 2 Position Valve | Double Solenoid | DIN Connector | 1/2" NPT | 1/2" NPT | |
| 4V430C-15 | 5 Ports 4 Way 3 Position CLOSED Center Valve | Double Solenoid | DIN Connector | 1/2" NPT | 1/2" NPT | |
| 4V110-06 | 5 Ports 4 Way 3 Position CLOSED Center Valve | Single Solenoid | Wire Leads | 1/8" NPT | 1/8" NPT | |
| 4V120-06 | 5 Ports 4 Way 3 Position CLOSED Center Valve | Double Solenoid | Wire Leads | 1/8" NPT | 1/8" NPT | |
| 4V130C-06 | 5 Ports 4 Way 3 Position CLOSED Center Valve | Double Solenoid | Wire Leads | 1/8" NPT | 1/8" NPT |
For more information,please send us inquiry
