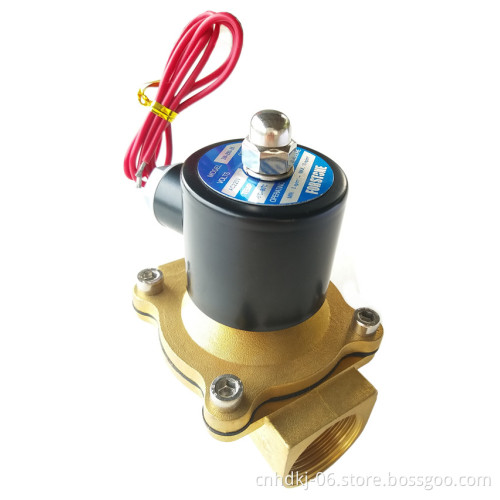

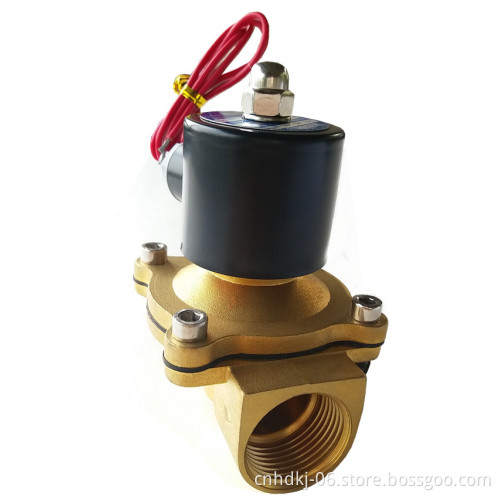

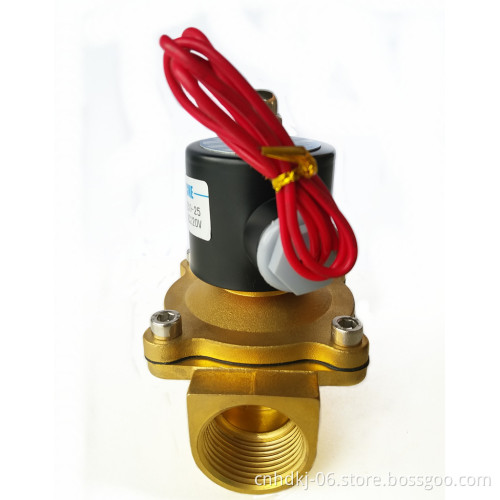

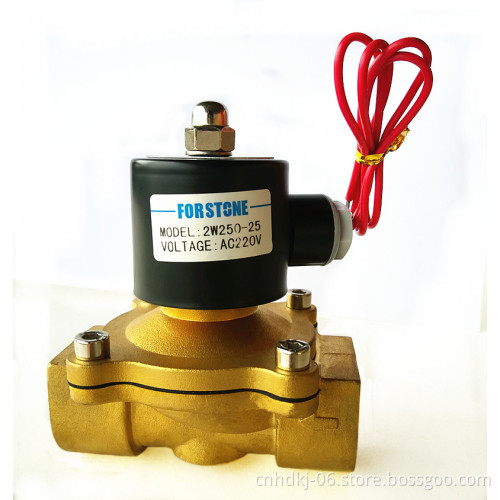

220V AC Orifice Electronic 25mm solenoid valve for water

Our General Service Valves control the flow of neutral gases. They are known for their long life and fast response time. They are available in multiple mounting configurations.

The solenoid is an electromagnetic part of a valve, comprised of a coil, core tube, core and enclosure. We offers the world’s largest selection of 2-way, 3-way and 4-way solenoid valves, designed to handle the most demanding fluid control applications.

Our 2-Way solenoid valves have one inlet and one outlet, and are used to permit and shut off fluid flow. The two types of operations are Normally Closed (NC) and Normally Open (NO). Two types of constructions apply to 2-way solenoid valves, which are direct acting and internally piloted.
With Direct acting constructions, the solenoid is energized, the core directly opens the orifice of a Normally Closed valve or closes the orifice in a Normally Open Valve. The valve will operate at pressures from 0 psi to its rated maximum.
Internally piloted constructions use line pressure to assist operation. When the coil is de-energized (on a Normally Closed Valve), the pilot orifice is closed and line pressure is applied to the top of the piston or diaphragm through the bleed orifice, closing the valve.

Specifications and available list we can offer:

Model	2w025-06	2w025-08	2w040-10	2w160-15	2w200-20	2w250-25	2w350-35	2w400-20	2w500-50
Service Medium	Air,water,oil,liquid and gas
Operation Model	Direct acting and internally piloted(Pilot Piston)
Flow Model	Normal closed type (Uni-Directional)
Aperture of flow rate(mm)	2.5		4	16	20	25	35	40	50
CV Value	0.23		0.6	4.8	7.6	12	24	29	48
Joint Pipe Bore	1/8″	1/4″	3/8″	1/2″	3/4″	1″	1+1/4″	1+1/2″	2″
Operational fluid viscosity	Below 20 CST
Working Pressure(kgf/cm²)	0 to 7			For Water:0 to 5.For Air:0 to 7.For Oil:0 to 5. For Gas:0 to 7
Max pressure Resistance(kgf/cm²)	10			10.5
Working temperature range(°C)	5 to 80
Voltage range	±10%
Material of body	Brass
Material of oil seal	NBR:EPDM or VITON

How to order solenoid valves?

2W	025	10	AC110V	D
Speccification code	Aperture of flow rate	Joint pipe bore	Standard Volatge	Wiring Form
2W:2 position and 2 way solenoid valve(Direct drive type)	025=2.5mm 040=4.0mm 160=16mm 200=20mm 250=25mm 350=35mm 400=40mm 500=50mm	06=1/8″ 08=1/4″ 10=3/8″ 15=1/2″ 25=1″ 35=1+1/4″ 40=1+1/2″ 50=2″	DC12V DC24V AC24V 50/60HZ AC36V 50/60HZ AC110V 50/60HZ AC220V 50/60HZ AC380V 50/60HZ	Blank:Lead wire type
				D:Join connector
				E:Blast proof coil
				G:Water proof coil

Why choose our solenoid valves?(Compare our solenoid valve parts with other suppliers in China)

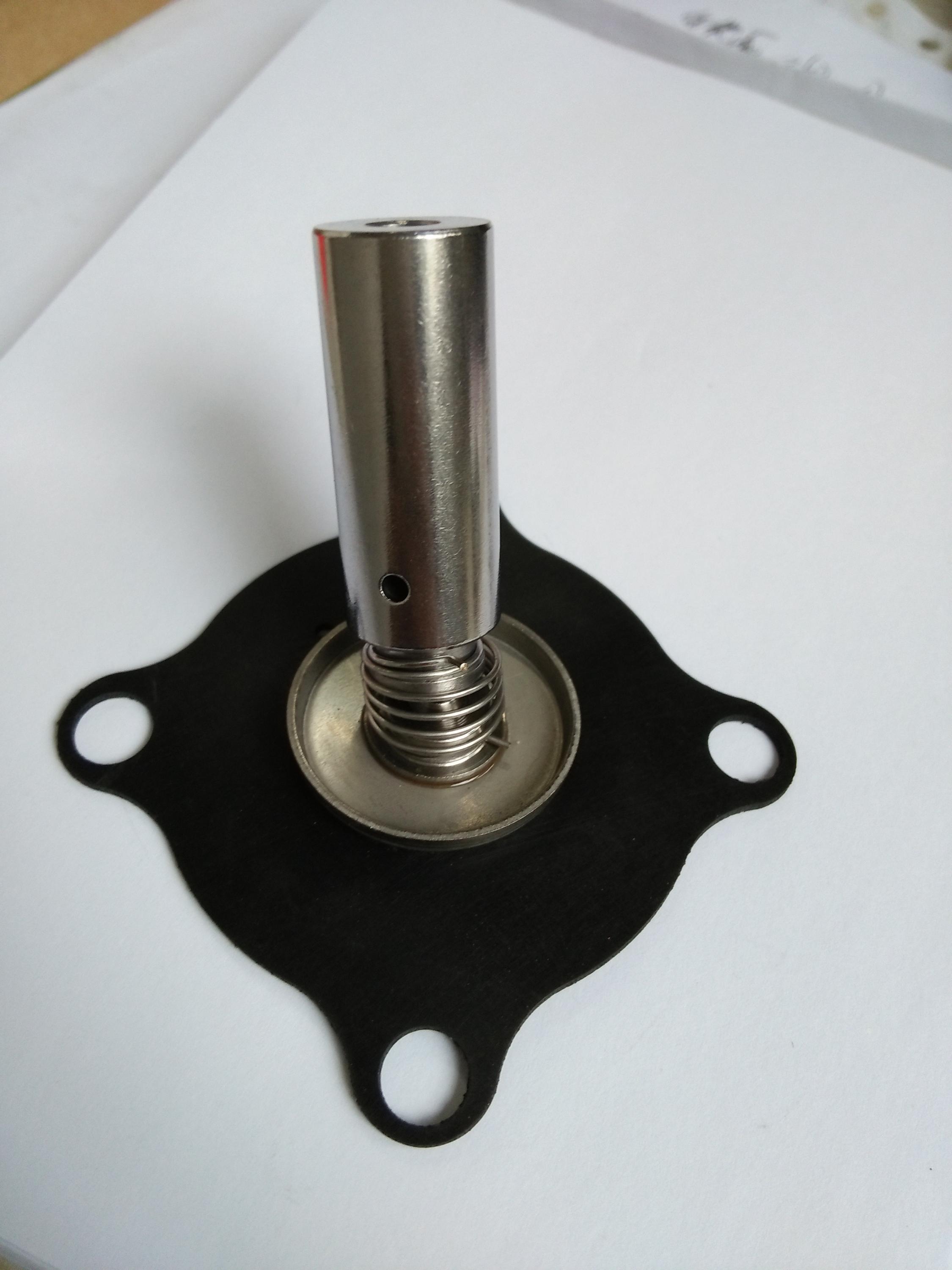

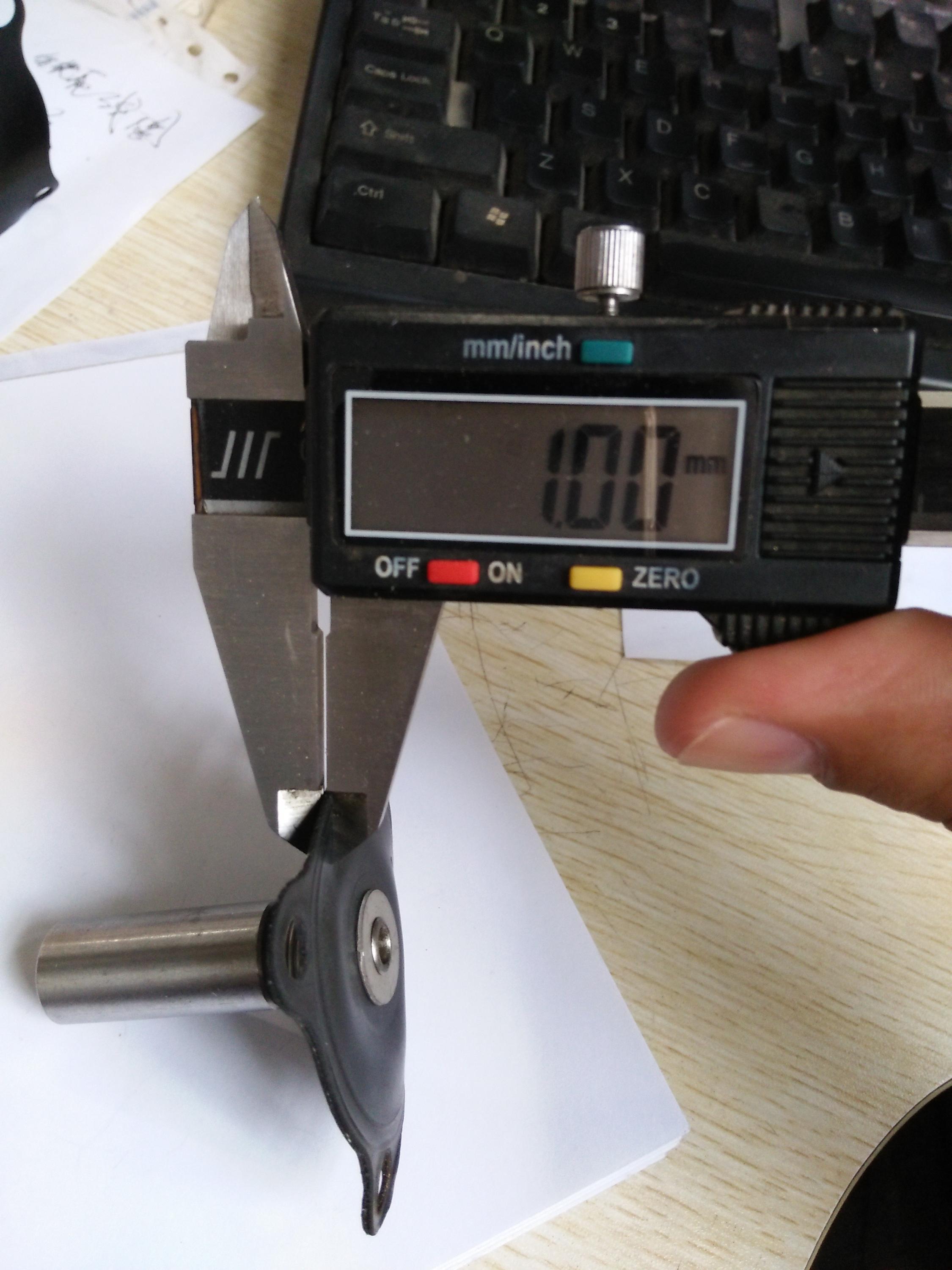

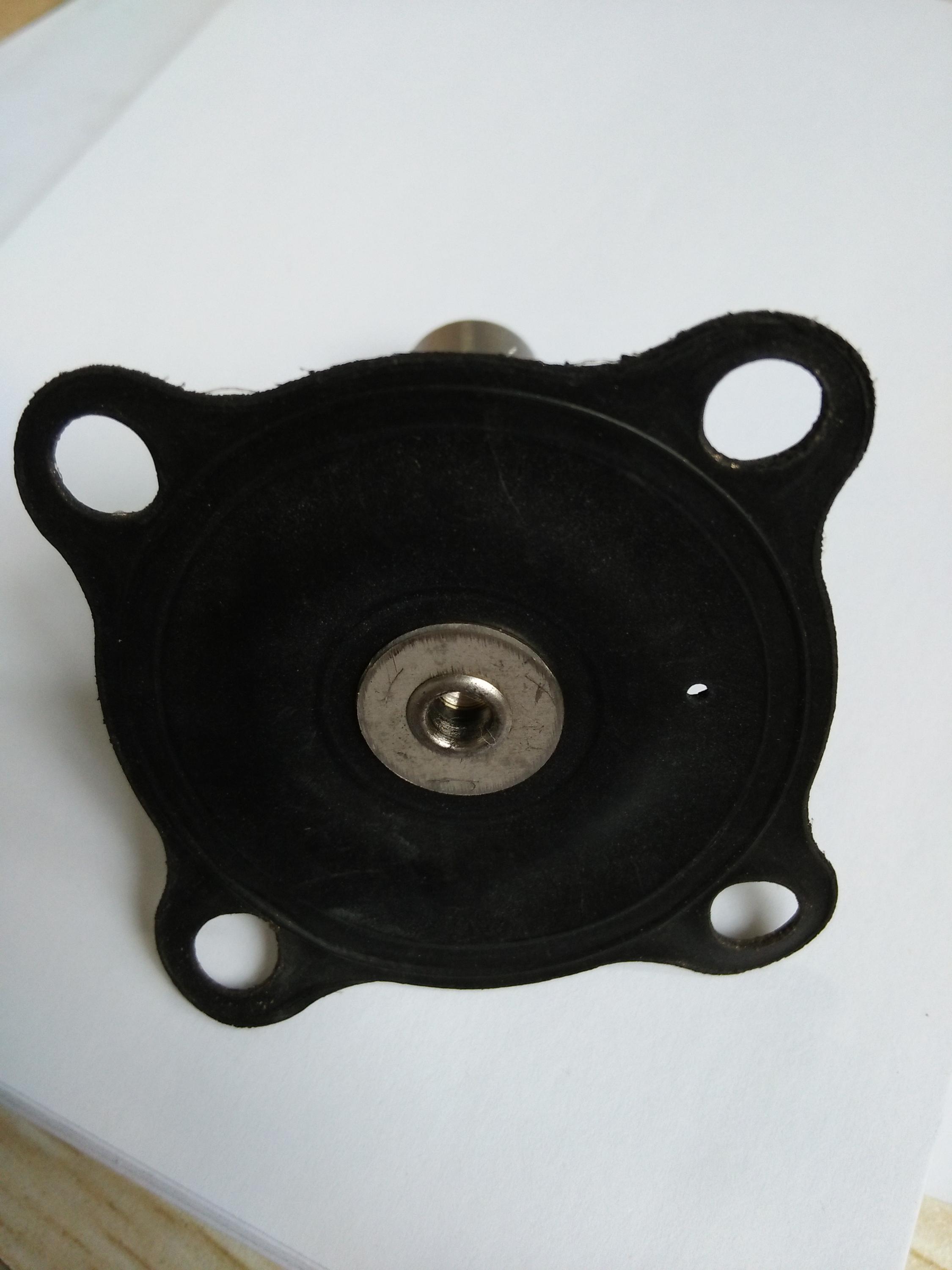

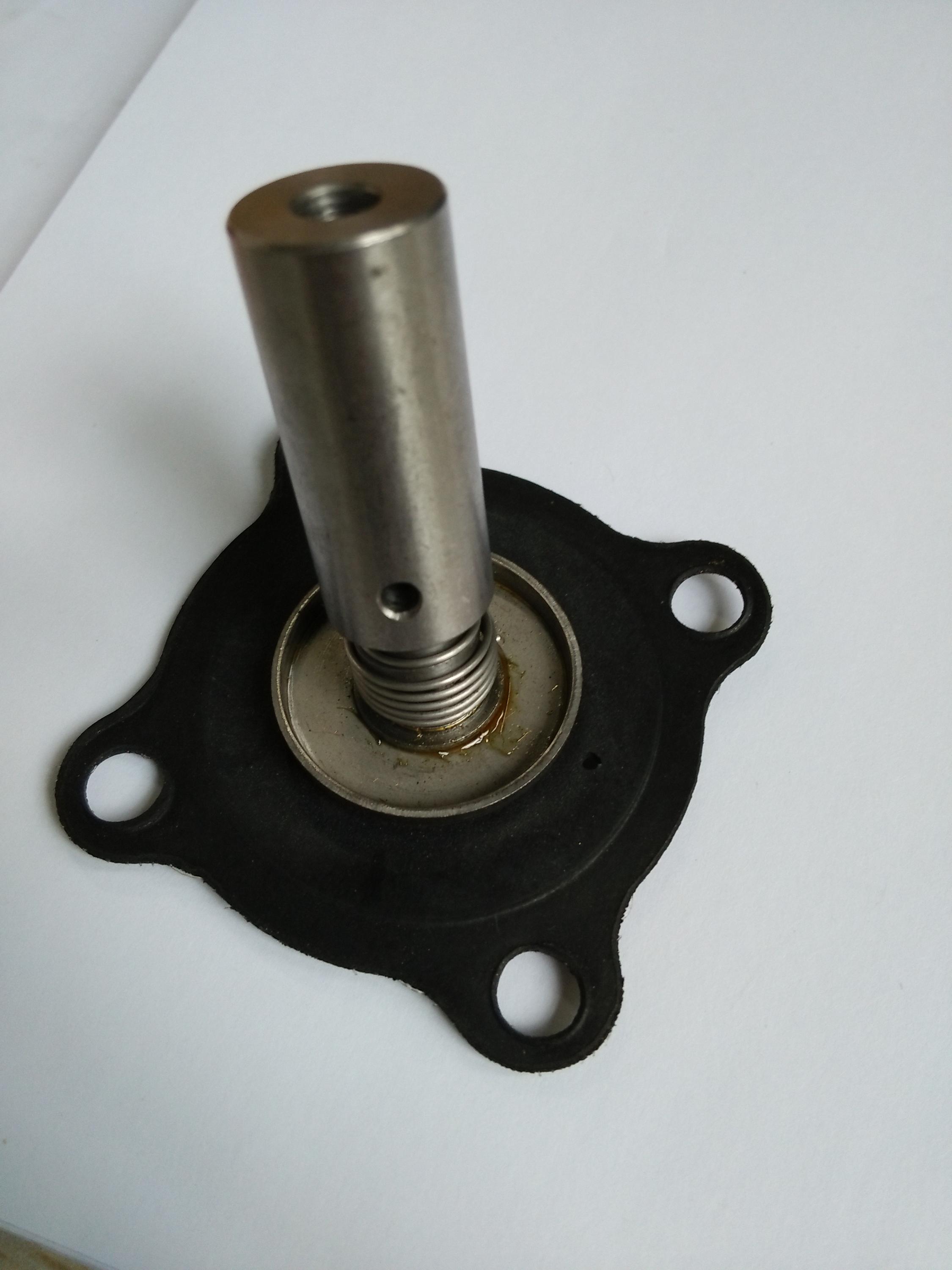

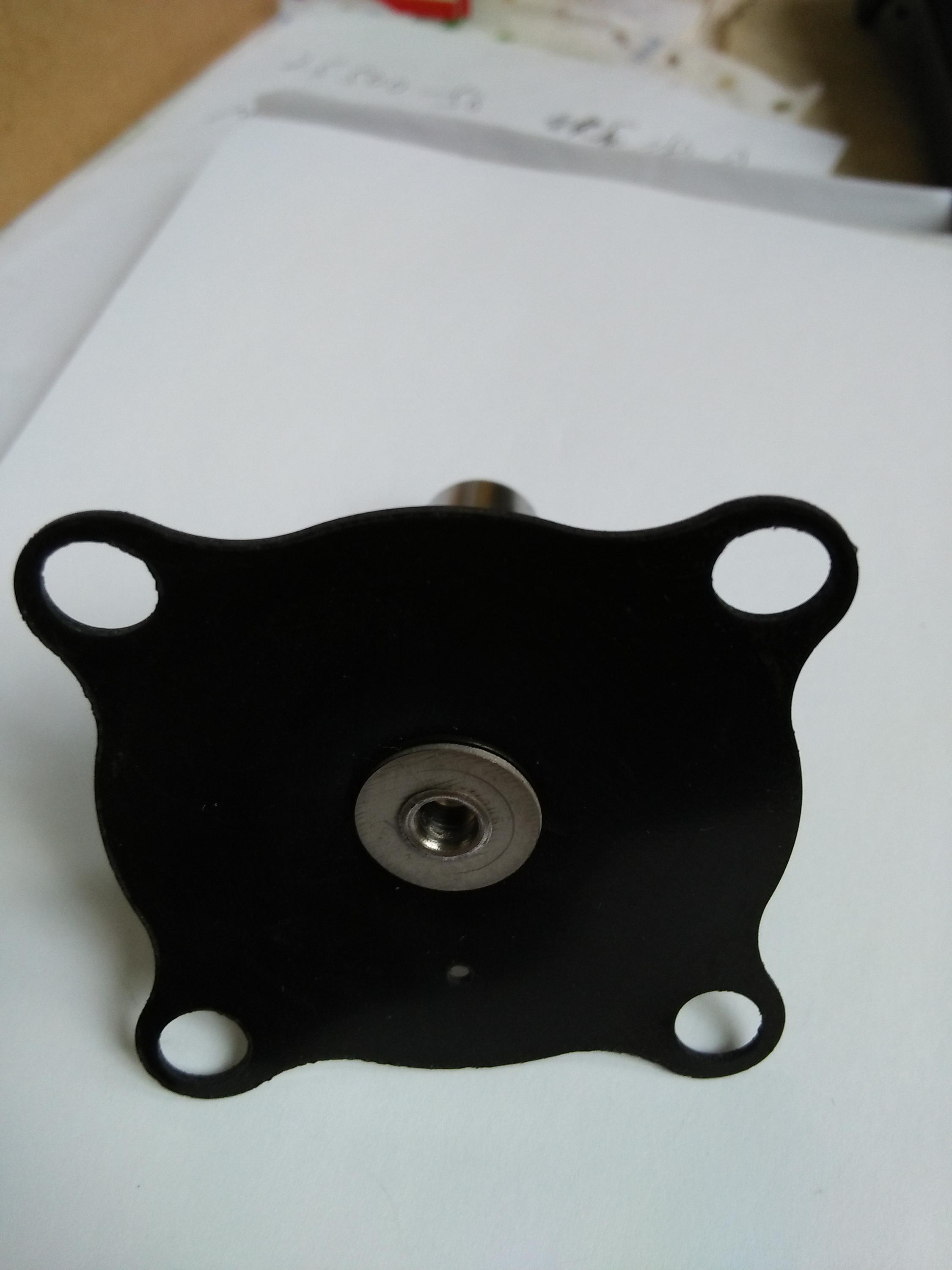

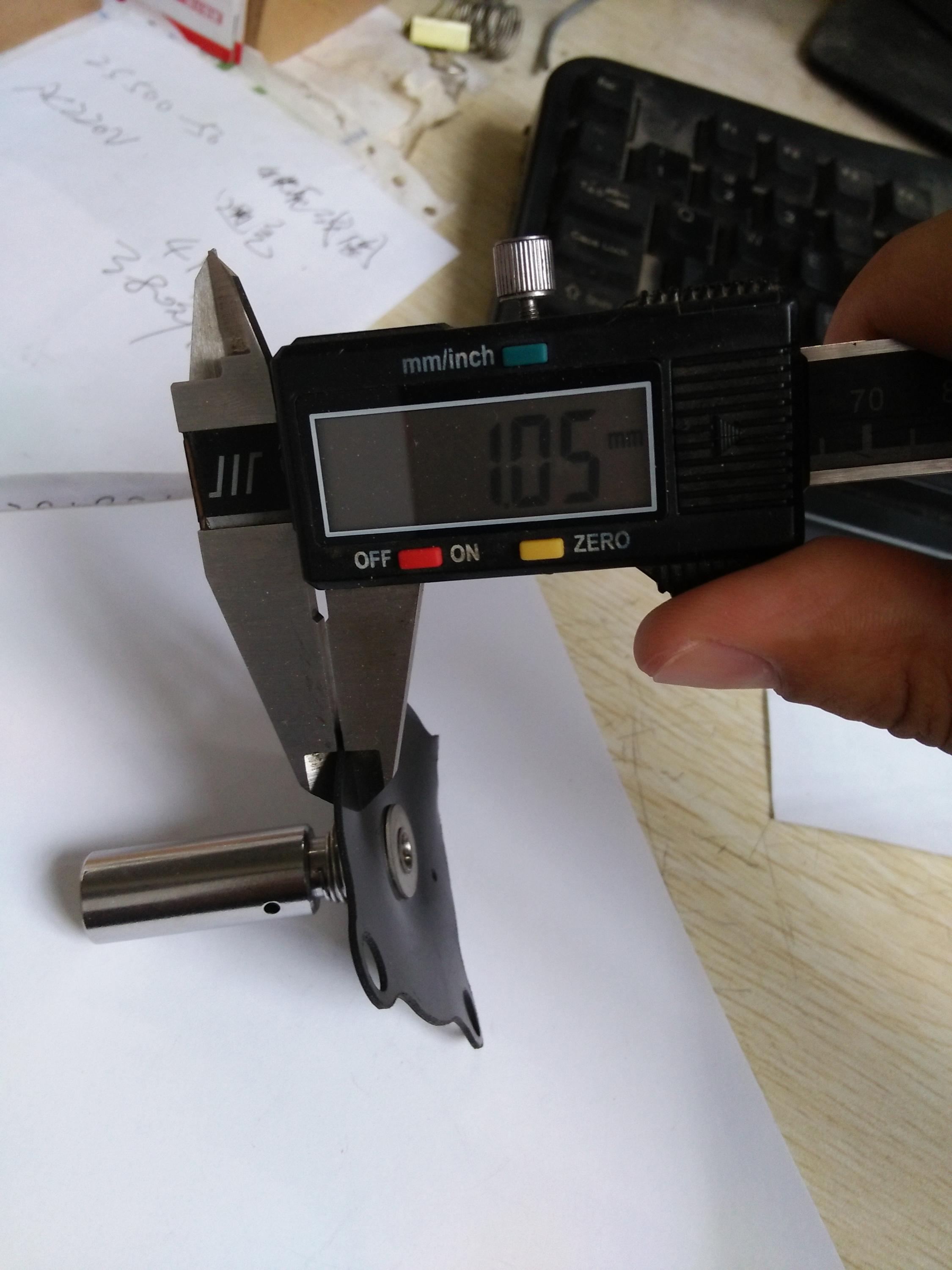

1.Our moving core in the solenoid valve is more luster, drilling more sophisticated, the diaphragm of the stainless steel plate is clean and no glue and oil residue.(Up is other suppliers,down is ours)
