24V,110V,220V Solenoid Valve for Gas, Water,Oil

24V,110V,220V Solenoid Valve for Gas, Water,Oil

$8.00 - $25.00/Piece/Pieces

Min. Order:: 5 Piece/Pieces

Min. Order:: 5 Piece/Pieces

Transportation:: Express, Ocean, Land, Air

Port:: Chongqing, China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	50000 Piece/Pieces per Month depending on customers
Payment Type:	L/C,T/T,PAYPAL
Transportation:	Express,Ocean,Land,Air
Port:	Chongqing,China

Product Description

Products Description

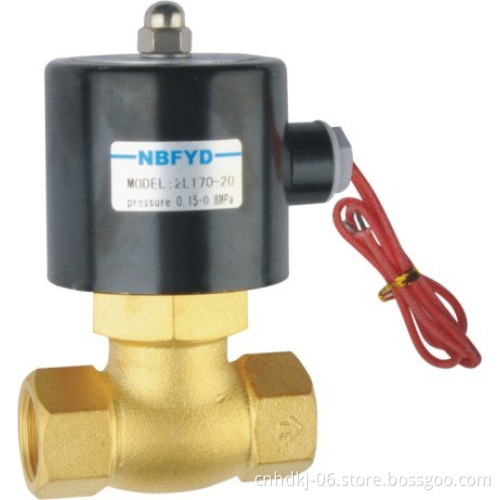

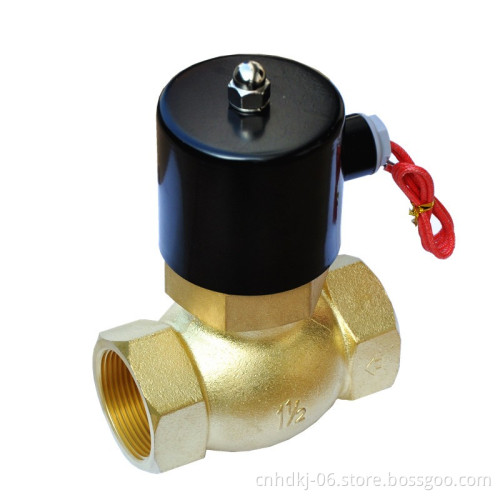

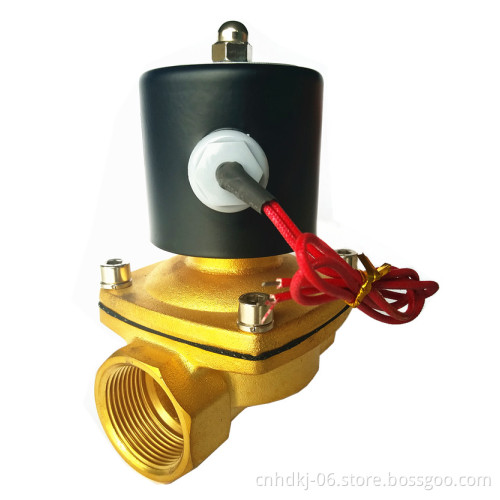

Solenoid Valve for Air, Gas ,Water,Oil

2W /2L series solenoid valve are 2/2way, direct action type, are most popular valves for many conditions, especially in the water treatment system, such as water heater. It can start working at zero differential pressure. This type of valve can change the coils to be as explosion-proof solenoid valve or water-proof solenoid valve to be used in water.

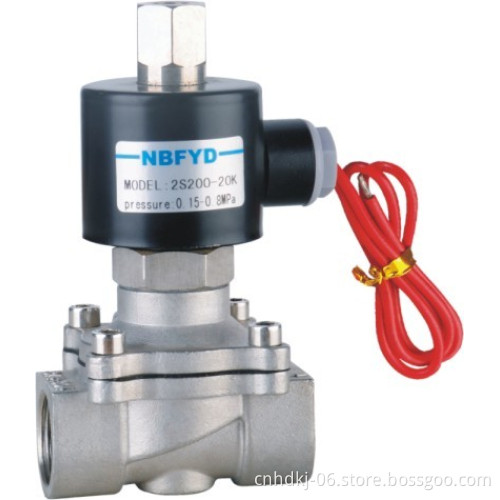

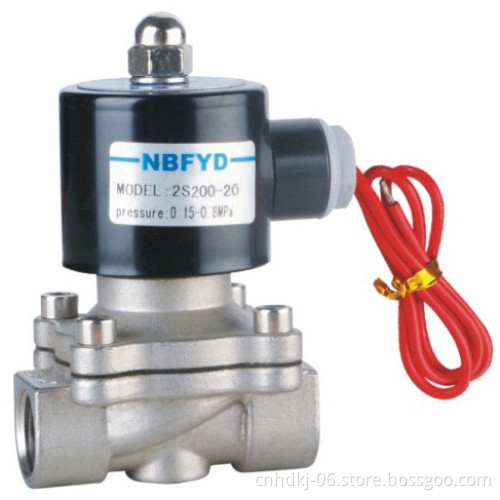

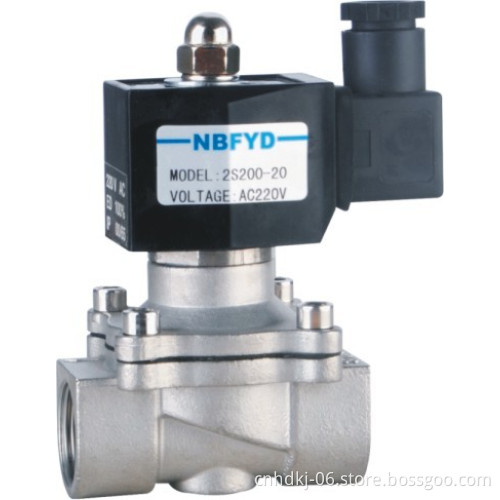

Details Images

Solenoid Valve Character

1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of DIN plug coil
4.Medium:Air, City Gas, Water, Oil, Petroleum, steam,etc.
5.Pressure: 0.00MPa ~ 1.0MPa.
6.Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1

Temperature and Port Size:
1.NBR Seal: 14F to 176F , -10 to 80C
2.EPDM Seal: 14F to 250F , -10 to 120C
3.VITON Seal : 14F to 300F, -10 to 150C.
4.Port Size:3/8,1/2,3/4,1,1 1/4,1 1/2,2
5.Orifice (mm): 12,15,20,25,32,40,50

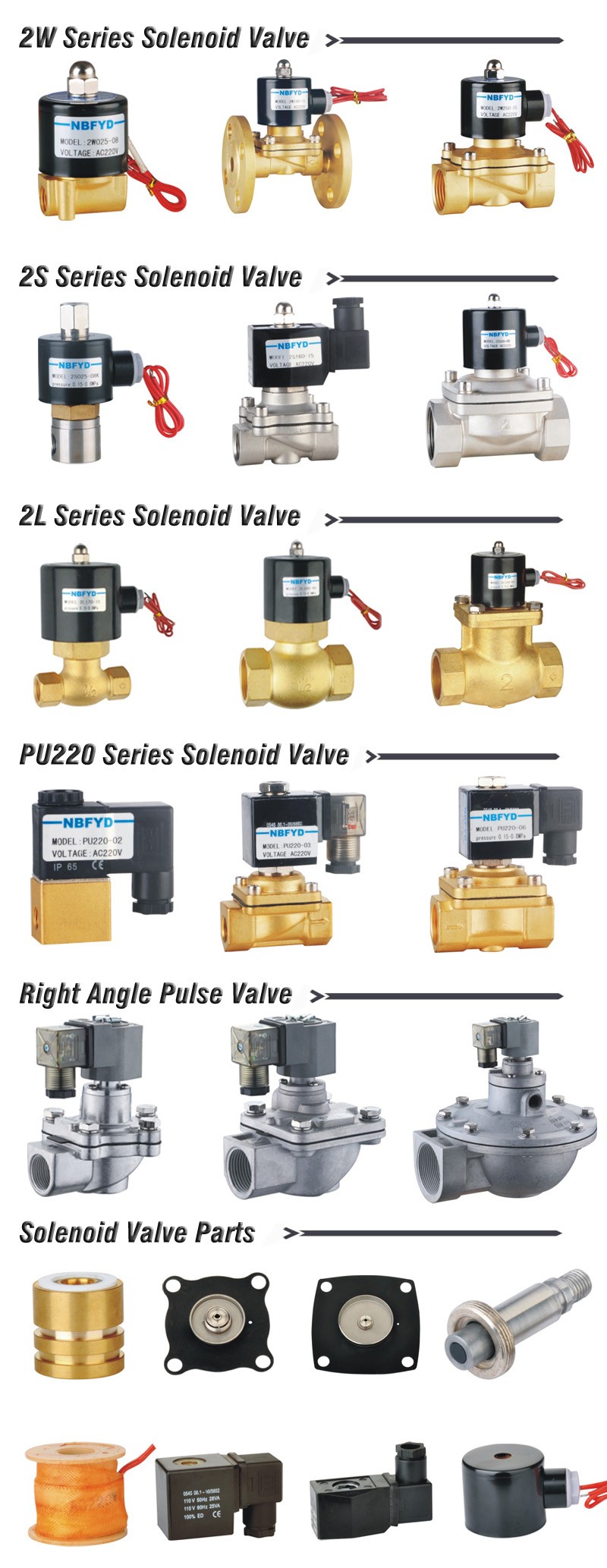

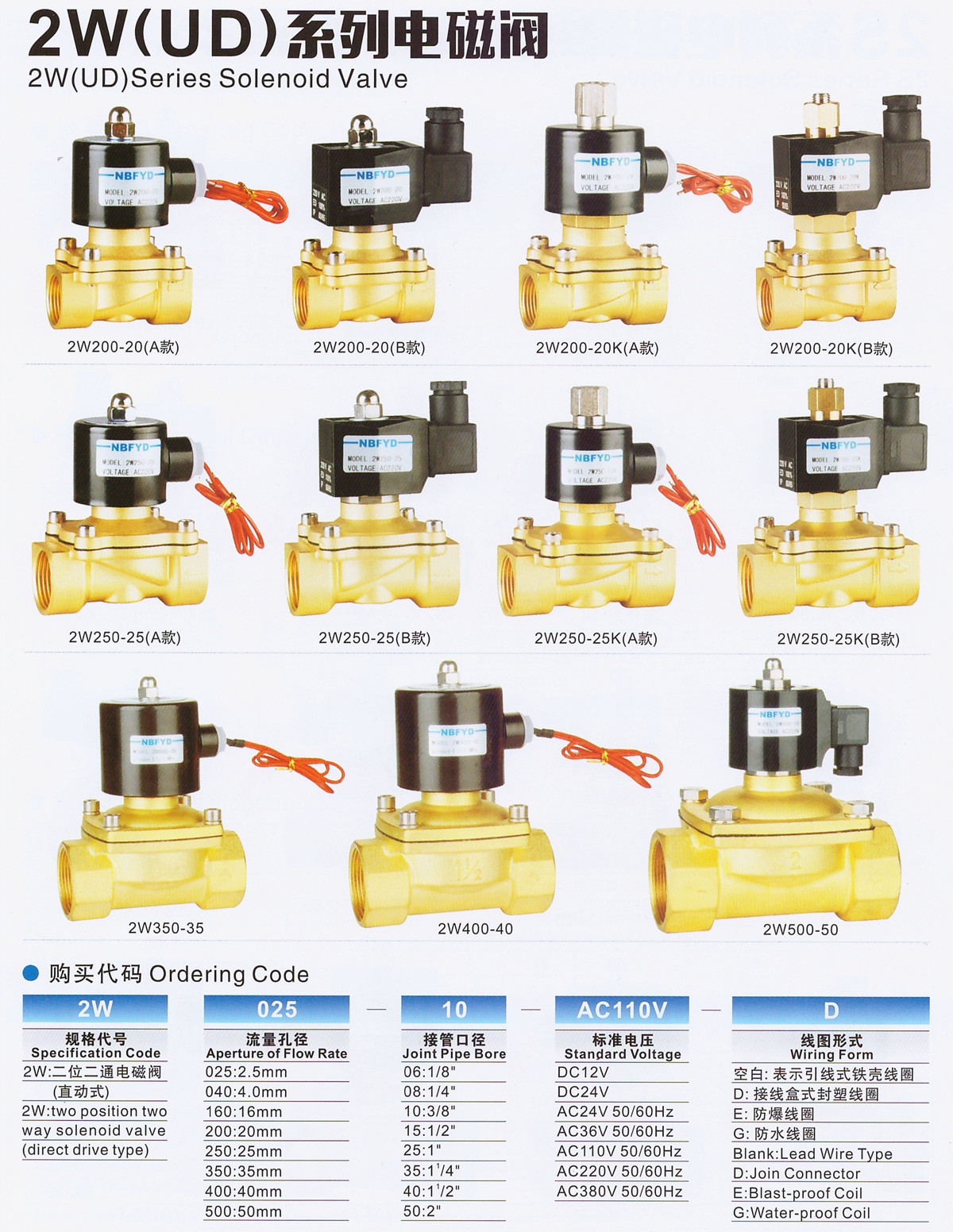

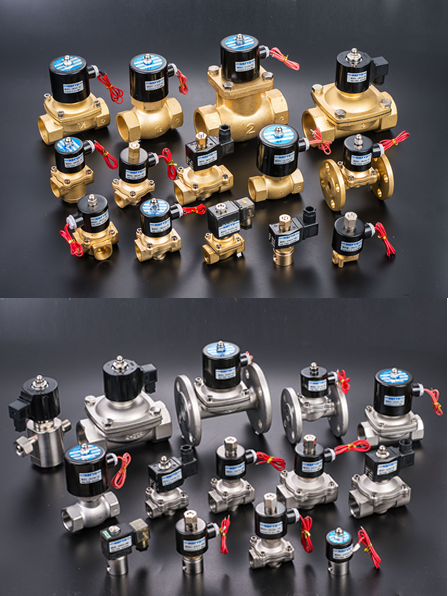

More products

Our Advantages

1) Fluid: air, water and oil
2) Joint pipe bore: G1/8"-G2"
3) Working-pressure range: 0.15-0.8MPa
4) Operating temperature range: -5 ~ +60°C

Exhibition

Company Profile

Chongqing Haodong Technology Co., Ltd is a professional integration of industry and trade who was built in 2005.
We supply the solenoid valve, pipe fitting & connector, kitchen valve, electric infrared heater, water tap faucet and conveyor chain parts etc.
Good quality and reputation makes our products popular in both domestic and overseas markets.

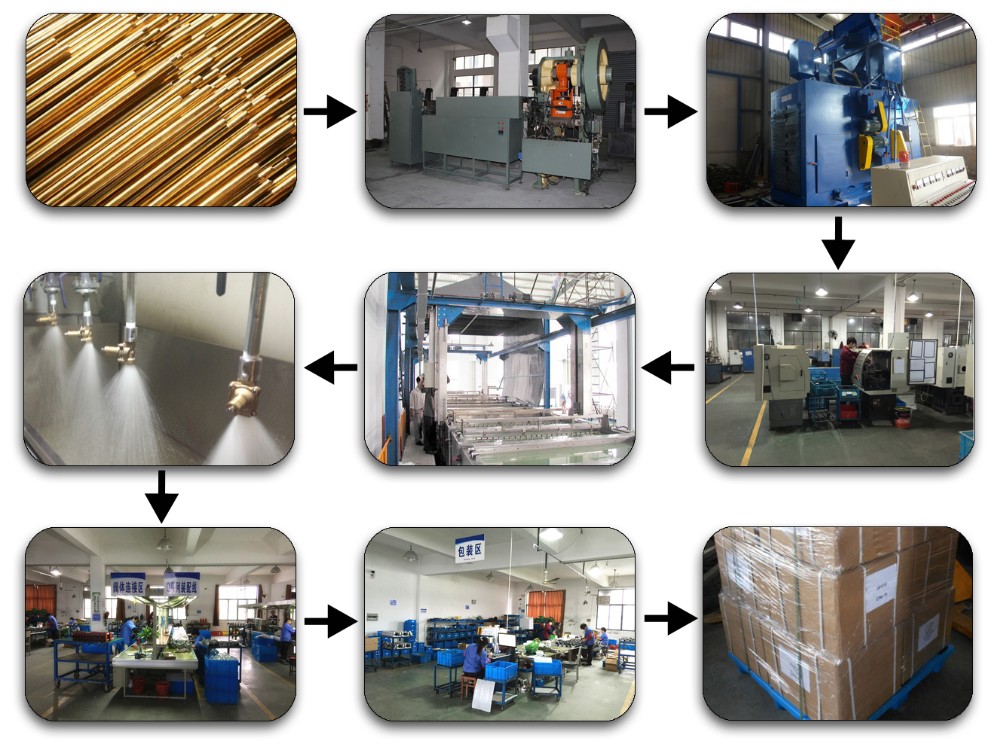

Located in Chongqing City, southwest of China, and has a branch factory in Zhejiang. We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities.
