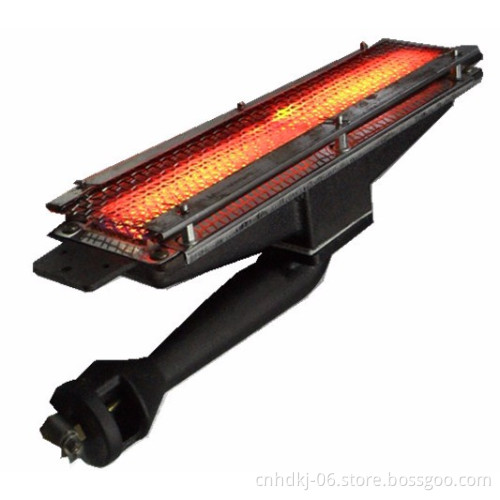

Commercial infrared ceramic NG gas burner details
As we know, usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.
For common ceramic burner, it heats ceramic plate and then ceramic plate release infrared ray. But Haodong infrared burner covers a process rare earth as catalyst, make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.
Model | Dimension | Weight | Gas type | Heat Output | Consumption | ||
Engine | mm | kg | KW/h | Kcal/h | NG (m3/h) | LPG (kg/h) | |
HD61 | 423*80*94 | 3.8 | LGP/NG | 2.4 | 2030 | 0.18 | 0.17 |
HD81 | 555*80*115 | 5.8 | LGP/NG | 3.1 | 2700 | 0.24 | 0.22 |
HD82 | 219*164*108 | 4.8 | LGP/NG | 3.1 | 2700 | 0.24 | 0.22 |
HD101 | 690*80*115 | 6.9 | LGP/NG | 3.9 | 3380 | 0.3 | 0.28 |
HD162 | 570*130*175 | 8 | LGP/NG | 6.3 | 5400 | 0.49 | 0.45 |
HD410 | 410*175*220 | 8 | LGP/NG | 6.3 | 5400 | 0.49 | 0.45 |
HD242 | 840*130*175 | 11.7 | LGP/NG | 9.4 | 8120 | 0.75 | 0.68 |
HD600 | 600*175*220 | 11.7 | LGP/NG | 9.4 | 8120 | 0.75 | 0.68 |
HD262 | 930*130*175 | 13 | LGP/NG | 10.9 | 9360 | 0.8 | 0.74 |
Commercial infrared ceramic NG gas burner materials:
1. Shell: aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Advantages:
Chongqing Haodong Technology Co., Ltd is a professional integration of industry and trade who was built in 2005.
We supply the solenoid valve, pipe fitting & connector, kitchen valve, electric infrared heater, water tap faucet and conveyor chain parts etc.
Good quality and reputation makes our products popular in both domestic and overseas markets.
Located in Chongqing City, southwest of China, and has a branch factory in Zhejiang. We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities.
Elaborately material selection, professional design, excellent workmanship, sincerely service, what you want will be available in our company.
Sincerely to establish good, cooperative relations with customers on the basis of equality, mutual benefit and common development.
1.MOQ of Infrared ceramic gas burner?
MOQ is 50pcs.
2. Could I have a sample to test first?
Yes, trail order is OK.
3. Is the Infrared ceramic gas burner easy to install?
Yes. It connect with gas cylinder directly and use.
4.what's payment way ?
Paypal, west union, T/T, trade assurance,L/C.
