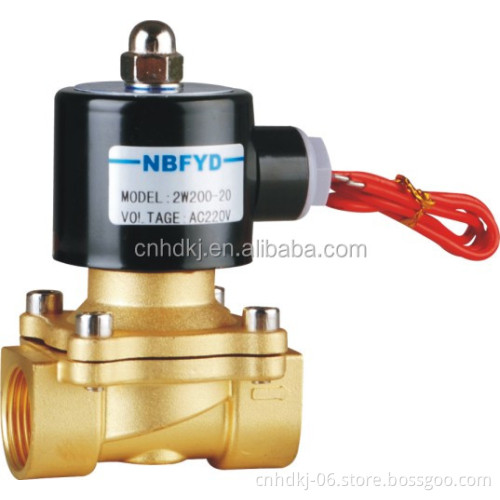

2W Series AC220V DC24V water solenoid valve can change the coils to be as explosion-proof solenoid valve
- Min. Order:
- 100 Piece/Pieces
- Min. Order:
- 100 Piece/Pieces
- Transportation:
- Ocean
- Port:
- Ningbo
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 50000 Piece/Pieces per Month water solenoid valve |
|---|---|
| Payment Type: | L/C,T/T,PAYPAL, TRADE ASSURANCE |
| Transportation: | Ocean |
| Port: | Ningbo |
2W/2S series solenoid valve are 2/2way, direct action type, are most popular valves for many conditions, especially in the water treatment system, such as water purification treatment equipment. It can start working at zero differential pressure. This type of valve can change the coils to be as explosion-proof solenoid valve or water-proof solenoid valve to be used in water.
Specification of solenoid valves:
Model | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
2S025-06 | 2S025-08 | 2S040-10 | 2S160-10 | 2S160-15 | 2S200-20 | 2S250-25 | 2S350-35 | 2S400-40 | 2S500-50 | |
Medium | Air, Water, Oil, Gas | |||||||||
Action | Direct Acting | |||||||||
Type | Normally closed type | |||||||||
Aperture of flow rate | 2.5mm | 4 mm | 16 mm | 20 mm | 25 mm | 35 mm | 40 mm | 50 mm | ||
Cv value | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||
Port size | G1/8” | G1/4” | G3/8” | G3/8” | G1/2” | G3/4” | G1” | G1 ¼” | G1 ½” | G2” |
Operation Fluid viscosity | <20CST | |||||||||
Working pressure | 0~7bar (0~101.52psi) | Air/Gas: 0~7bar, Water/Oil: 0~5bar | ||||||||
Temperature range | -5~80°C | |||||||||
Voltage range | DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, AC380. Voltage range ±10% | |||||||||
Body material | Brass, Stainless Steel | |||||||||
Seal material | NBR, EPDM or VITON | |||||||||
Chongqing Haodong Technology Co., Ltd is a professional integration of industry and trade who was built in 2005.
We supply the solenoid valve, pipe fitting & connector, kitchen valve, electric infrared heater, water tap faucet and conveyor chain parts etc.
Good quality and reputation makes our products popular in both domestic and overseas markets.
Located in Chongqing City, southwest of China, and has a branch factory in Zhejiang. We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities.
Elaborately material selection, professional design, excellent workmanship, sincerely service, what you want will be available in our company.
Sincerely to establish good, cooperative relations with customers on the basis of equality, mutual benefit and common development.
