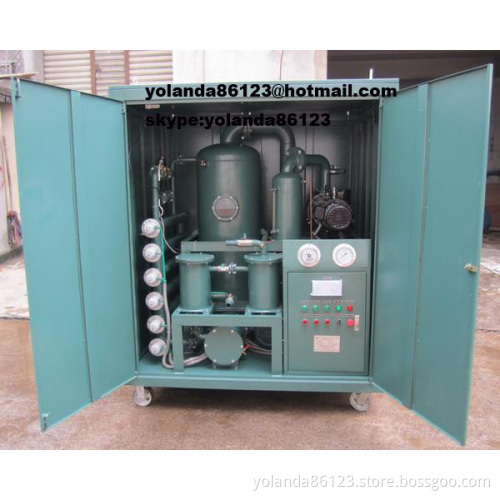

Double-stage vacuum Transformer oil filtration machine Series ZYD

Application:
The machine can remove the water, gas and impurities in insulation oil high-efficiently, increasing the pressure force and quality of oil, make sure the electric device running safely. The machine is mainly used for electric power department and industries to deal with various oils such as transformer oil, mutual oil, switch oil and so on. The machine is especially for purifying the insulation oil in all kinds of large power equipments that are above 110KV, especially for the altitude is over 500 meters.

Feature:
1. High vacuum limiting vacuum less than 5pa, working vacuum less than 35pa.
2. High absorption speed, absorption speed power more than 333L/Sr.
3. Duplex 3D stereo-evaporation technology, eliminating the liquid water very effectively.
4. UK G technology by which the trace water that is show chain, such

as dissolved water, can be removed effectively.
5. Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.

6.Especially applied to vacuum oiling and drying for power transmission equipments that are over 110kv.

7.Can be operated both on-load and off load.
8. Carbon fiber infrared heating system that can make the oil contains zero sum of ethyne after treatment.
9.can be used to dry the electric equipment and input the oil into the electric equipment under the vacuum state.

10..The machine adopts the double-infrared liquid automatic controller, sensitive automatic pressure protector and the high effective equipment for degas, so it is easy to operate.

Advantage:
Comparing with the single-stage vacuum oil purifier, this machine dewater, degas and removes the impurities more quickly, more completely, and makes the oils limiting voltage-withstand value much higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.
