Ultra High Vacuum Transformer Oil Processing Unit | Oil Purification Plant | Dielectric Oil BDV Improving Filter

Ultra High Vacuum Transformer Oil Processing Unit | Oil Purification Plant | Dielectric Oil BDV Improving Filter

Get Latest Price

Payment Type:: T/T, L/C

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Productivity:	100
Supply Ability:	1000
Payment Type:	T/T,L/C
Certificate:	CE,ISO,SGS

Product Description

Application:

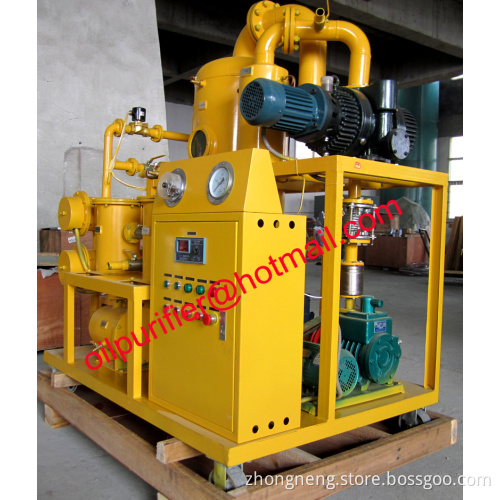

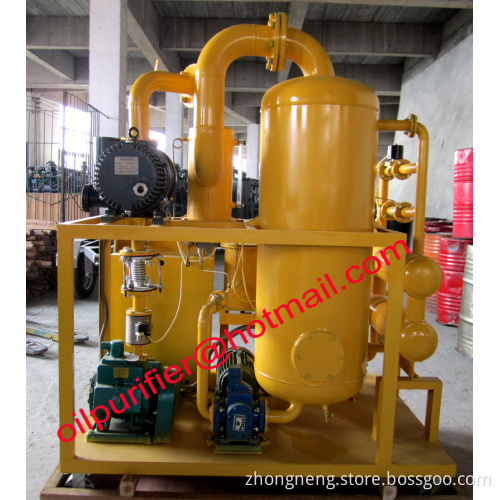

ZYD Doulbe Stage Transformer Oil Treatment Machine, Oil Filtering, Oil Purifier ZYD-100is special for filtering the used and old transformer oil, mutual oil, switch oil. Comparing with the single-stage type, this machine adopts the double stages vacuum system, which can improve the machine's working vacuum value highly, so it can dewater, degas and remove the impurity more deeply and effectively. The dielectric value of treated oil is higher than 75KV. It is very suitable for the large electric & insulation equipments.

Feature:
1. High vacuum: High point-Vacuum≤5pa Working-vacuum≤35pa
2. High absorption speed: Absorption speed power≥333L/Sr.
3. Duplex 3D stereo-evaporation, eliminating the liquid water quickly
4. Distinctive removing impurity system which filters the impurity through double FH trapezoidal network and absorbs the impurity by high polymer without the mechanical power.
5. Carbon fiber infrared heating system that can have the oil contain zero sum of ethyne after the treatment.
6. Especially applied to vacuum filling oil and drying for power transmission equipments which power are over 110KV.
7. Any insulating oil can be treated on-line at the working site.
