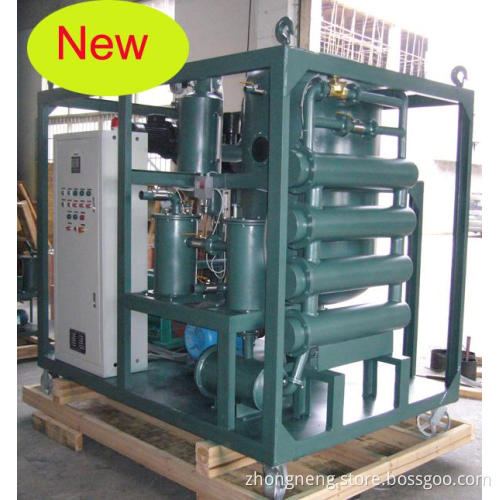

Ultra-High Voltage Insulating Oil Purifier Machine

Application & Function

Ultra-high Voltage Grid is regarded as Electric High Way which features big capacity, distance and low loss. Until now, there are 750KV, 1000KV, 660KV, 800KV direct current in our nation's ultra-high voltage grids. Considering its safety, it has extremely requirement on insulating oil in transformer, mutual inductor and reactor, the ZYD-I Series Ultra-High Voltage Oil Treatment Equipment, manufactured by our company is effective in particles refining, vacuum degassing and oil-water separation. This equipment has been successfully applied in 750KV alternating current and 800KV key projects. And every oil treatment index reaches the national ultra-high voltage oil purification standard.

Features:

1. High vacuum: Ultimate vacuum ≤2 pa, Working vacuum ≤ 30 pa.

2. Can be operated both on-load and off-load.

3. With UK G technology, this machine can dissolve and remove the water, trace water effectively and completely.

4. The treated transformer oil by this oil purifier, its oil breakdown voltage ≥75 KV; and moisture content ≤ 3 ppm; air content ≤ 0.3 %; and the filtering accuracy can be 05 μm.

According to flow rate of oil treatment, series ZYD-I have following models:

ZYD-I-100 and ZYD-I-150 and ZYD-I-200, ZYD-I-300 etc. The dimension and weight will be changed with changing the technical specification.
