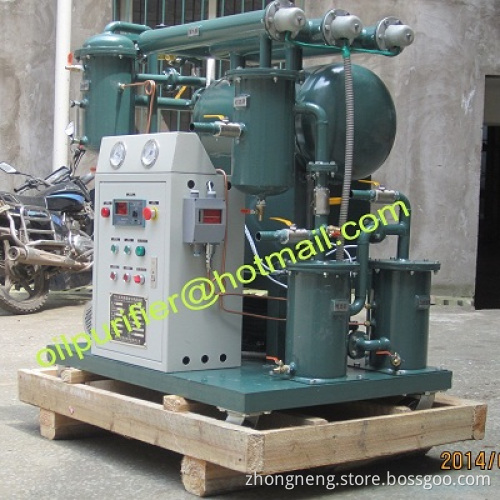

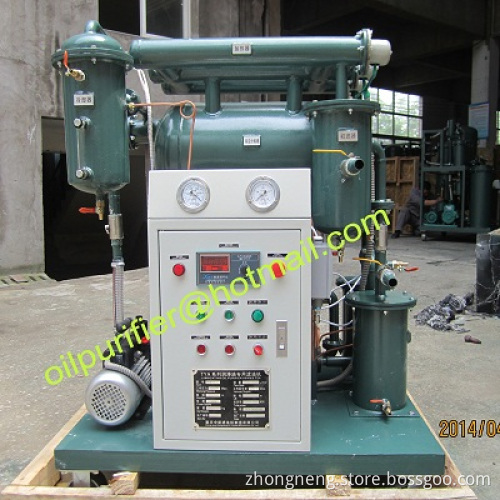

Portable Insulating oil purifier, Transformer oil purification machine

Portable Insulating oil purifier, Transformer oil purification machine

Get Latest Price

Payment Type:: T/T, L/C

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 10 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Chongqing,China
Productivity:	100
Supply Ability:	1000
Payment Type:	T/T,L/C
Certificate:	CE,ISO,SGS
Transportation:	Ocean,Land,Air

Product Description

Application:

This type of machine can degas, dewater, removing the impurities of TTinsulating oilT quickly and effectively. It improves the value of oil breakdown voltage value and make sure electrical equipment work safely. It is used to deal with Transformer oil, , mutual inductorTT oil, switch oil and so on.

Feature:

1, This machine is small, hi-efficient conveniently. And it can live operated with electrical, vacuum oiling the power equipment and dry moisture of power equipment.

2, This machine equips with infrared liquid auto-control device, which can have the balance the quantity of outlet oil and inlet oil, so this machine can operate on-line without person.

3. It adopt Duplex 3D stereo-evaporation technology, dewatering and degassing very effectively.

4. Distinctive removing impurities technology filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power.

5. Adopt Germany`s 3UG3 Phase Relay.

6. A trinity of interlocked preventive device.

7. The usage life of the oil purifier is greatly prolonged with application of advanced dielectric condensation device.

8. Our machine use the Carbon fiber heating system which can heat the oil speedy and uniform.

Model & Specification

Parameters		Unit	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150	ZY-200	ZY-300
Flow rate		L/H	600	1200	1800	3000	6000	9000	12000	18000
Working vacuum		MPa	-0.06 ~ -0.095
Working pressure		MPa	0.4	0.4	≤0.4	0.5	0.5	0.5	0.5	0.5
Breakdown voltage		KV	≥70	≥70	≥70	≥75	≥75	≥75	≥75	≥75
Moisture		PPM	≤3
Gas content		%	≤0.1
Impurity content		μ	≤1~5
Temperature range			10 ~ 100
Power supply			50HZ380V(being regulated according to customer`s option)
Working noise		dB(A)	61	63	70	70	75	70	70	70
Heating power		KW	11	13	15	30	48	52.5	57.5	60
Total power		KW	12.5	14.5	16.5	33.5	51.5	57.5	65.5	68
Inlet/outlet caliber		mm	φ25	φ25	φ25	φ32	φ42	φ50	φ50	φ60
Weight		Kg	150	200	260	300	400	450	550	600
Size	L	mm	1050	1050	1100	1200	1450	1600	1800	1900
	W	mm	750	750	800	950	950	1100	1200	1200
	H	mm	1350	1350	1400	1500	1650	1800	1900	1900
