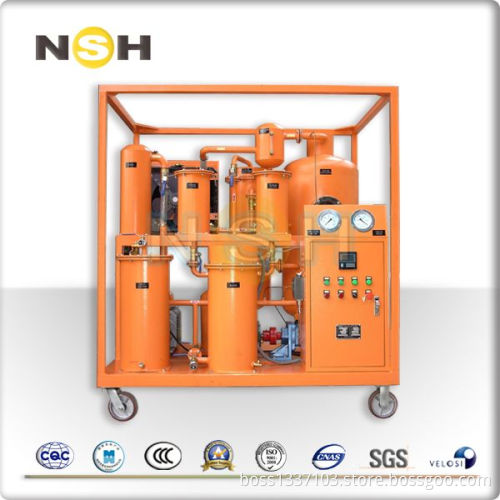

Sino-NSH-LV is a dehydration and degassing unit with thermal and vacuum processing. It is multifunctional purifier which can treat various kinds of lubricant oils.
Sino-NSH-LV is mainly used to remove dissolved and free water , and particulate impurities effectively so as to increase special indexes of lubricant oil. Combining with vacuum system, the multi-stage filtration system adopts a high dehydration efficiency. It has a strong anti-emulsifying capability, which could separate the large amount of water from oil and the trace water from oil. The clearness of final oil can be under 6 NAS and water can be under 100PPM after processing with our machine.
Sino-NSH-LV maintains an optimized structure and safe controls so as to meet comprehensive requirement of transformer manufacturers and service companies.
Sino-NSH-LV maintains:
-Hole user-friendly design
-Four main security and protecting system to ensure safe operation
-Adopting delamination gradual-close filtering technology
-Online working
-High efficiency, low noise
-Environmentally friendly design
-Low maintenance cost
| Parameter | Value | |||||||
| LV-10 | LV-20 | LV-30 | LV-50 | LV-100 | LV-150 | LV-200 | ||
| Capacity,liters/hours | 600 | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | |
| Heating Power,kW | 15 | 18 | 30 | 45 | 90 | 120 | 180 | |
| Total Power,kW | 17 | 21 | 35 | 50 | 96 | 126 | 186 | |
| Power supply | Fully customizable | |||||||
| Inlet Diameter,mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 | |
| Outlet Diameter,mm | 20 | 20 | 20 | 25 | 40 | 50 | 65 | |
|
Dimensions (without trailer) |
Length,mm | 1350 | 1500 | 1550 | 1900 | 2200 | 2400 | 2900 |
| Width,mm | 1100 | 1200 | 1250 | 1400 | 1500 | 1600 | 1800 | |
| Height,mm | 1700 | 1750 | 1800 | 1800 | 1850 | 1900 | 2000 | |
| Weight(without trailer),kg | 600 | 80 | 900 | 1150 | 1500 | 1700 | 2400 | |
| Processed Oil Spec | Water content,ppm | ≤ 100 | ||||||
| Cleanliness(NAS 1638) | ≤ 6 | |||||||
| Filtration fineness,um | ≤ 5(or 1-5 as needed) | |||||||
