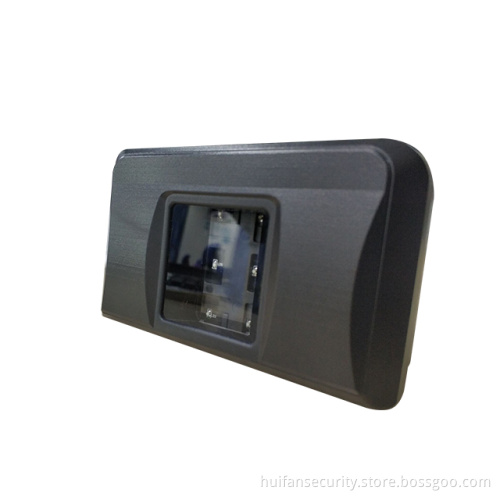

HF-OS300 Optical Sensor Biometric Fingerprint ScannerWith SDK
-
$99.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 100000/month |
|---|---|
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union,Others |
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | shenzhen |
HF-OS300 is dual & rolling fingerprint scanner, optical sensor, USB interface
charging and communication port. A large optical capture area was applied for fingerprint collection.
It can be used in wide variety of identity authentication system.
- Effective window size: 32.5*32.5
- Capture window size: 38mm*38mm
- Resolution: 500 DPI (-0.5%~+0.5%)
- Image size: 640*640 pixels
- Image distortion: ≤1%
- Dimension:114mm(L)*64mm(W)*37mm(H)
- OS:Linux, Windows, Android
|
Electrical Parameter |
|
|
Power Voltage |
5.0V±5% supplied by USB |
|
Power voltage |
|
|
Working current |
<200 mA |
|
interface |
USB 2.0 |
|
Working Environment |
|
|
Temperature |
0°C - 55°C |
|
Storage Temp |
-10°C - 60°C |
|
Humidity |
10% - 90% |
|
Storage humidity |
20%(±3) - 90%(±3) |
|
Fingerprint |
|
|
Resolution |
500 DPI (-0.5%~+0.5%) |
|
Capture window size |
38mm*38mm |
|
Effective window size |
32.5mm*32.5mm |
|
Image size |
640*640 pixels |
|
Capture time |
≥25 FPS(≤66ms) |
|
Image distortion |
≤1% |
|
Grayscale |
8-bit, 256 |
|
Gray level |
225-255 |
|
Illumination |
≤300lx |
|
Weight |
146g |
|
Dimension |
114mm(L) *64mm(W) * 37mm(H) |
|
OS |
Linux, Windows, Android |
