MC02 Dual Light Thermal Imaging Thermometer
-
$500.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Land, Ocean, Air, Express, Others
- Port:
- shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 100000/month |
|---|---|
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union,Others |
| Incoterm: | EXW |
| Transportation: | Land,Ocean,Air,Express,Others |
| Port: | shenzhen |

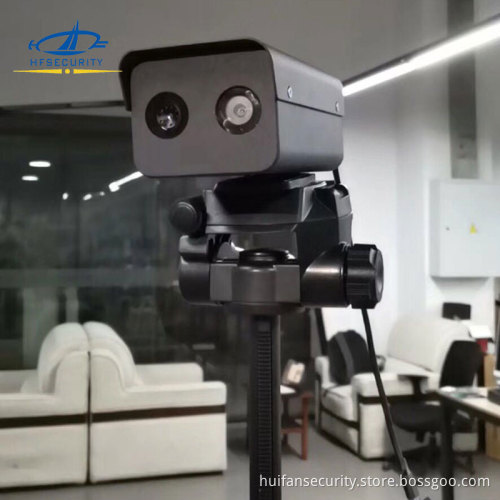

MC02 Quare Classic Dual Light Thermal Imaging Thermometer
1. Can use pc-free temperature measurement, two modes with pc temperature measurement to minimize on-site installation
2. Visible light、 Infrared dual synchronization for human detection, visible light to recognize human faces, infrared for accurate forehead positioning
3. Dual light infrared thermal imaging supports 320 * 240 resolution
4. Fusion of dual-light infrared thermal image and visible light image
5. Visible light 、 Infrared can delimit different areas simultaneously
6. Image output mode: connect computer via Ethernet, or wifi、Mobile phone
7. Support face recognition, body recognition
8. Intelligent positioning personnel forehead temperature, accuracy error is less than 0.5 ° c
If the temperature exceeds the limit, you can alarm locally and upload the data to confirm the fever to the command center
The product has the following interfaces:
1. Secondary temperature calibration software, which can be calibrated on-site by thecustomer according to different regional environments
2. For people with extremely high temperature, visible and infrared photos can be automatically taken and archived for easy traceability
3. For temperature measurement information, it can be reported to the government statistics center in real time to achieve quick understanding of the information
| Parameter | Index | |
|
Infrared Thermal Imaging |
Resolution | 320x240 |
| Working Band | 8~14um | |
| Frame Rate | 9Hz | |
| NETD | 70mK@25℃ | |
| Field of View | 34.4 horizontal, 25.8 vertical | |
| Lens | 6.5mm | |
|
Temperature Measurement Range
|
1°C~120℃ | |
|
Temperature Measurement Accuracy
|
(0.5 ℃ (indoor) | |
| Temperature Measurement | Can set temperature measurement area and center point | |
| Swatch | Enhanced iron red, white heat, black heat, iron red, rainbow, red heat, cold blue, etc. | |
|
Universal |
Interface | Standard Micro USB 2.0 power supply and data transmission |
| Visible light | 1024*780 | |
| Language | Simplified Chinese | |
| Operating temperature | -20 ° c ~ + 60 ° c (According to the requirements of accurate temperature measurement of the human body, it is recommended to be the best at an ambient temperature of 10-30 degrees) | |
| Storage Temperature | -40°C~+85°C | |
|
Waterproof and dustproof
|
IP54 | |
| Product Size | 129mm x 73mm x 61mm (length x width x height) | |
| Net Weight | 295g | |
| Picture storage | Bmp、 Format | |
