HFSecurity OS1000 FAP20 Fingerprint Optical USB Fingerprint scannerHFSecurity OS1000 FAP20 Fingerprint Optical USB Fingerprint s
-
$99.001-49 Piece/Pieces
-
$96.00≥50 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 100000/month |
|---|---|
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union,Others |
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | shenzhen |
- Lightweight and durable design for easy integration
- High-quality fingerprint image
- ANSI 378,ISO 19794 template options
- IP54 rated dust and water protection design
- Standard USB interface, plug&play device
-
Description

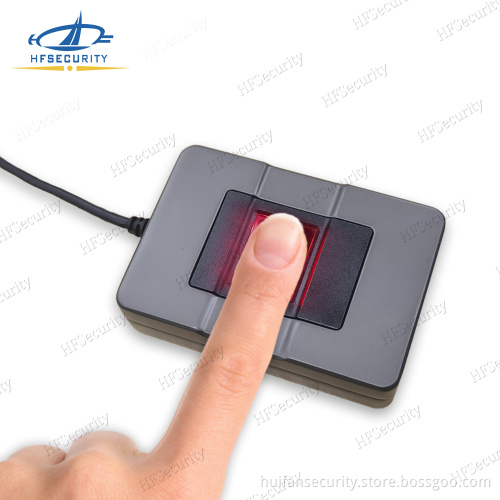

HFSecurity Optical USB Fingerprint Scanner
OS1000 FAP20 Fingerprint scanner device is a optical Fingerprint Scanner.
It's a compact & portable fingerprint collection device for easy integration with new or existing applications.
Powered by USB 2.0/3.0 and supports Windows, Linux and Android operating systems.
Ideal for biometric authentication and personal identity verification programs
- Lightweight and durable design for easy integration
- High-quality fingerprint image
- ANSI 378,ISO 19794 template options
- IP54 rated dust and water protection design
- FAP20 Fingerprint SCANNER, CE, FBI
- Standard USB interface, plug&play device
HFSecurity Biometric Fingerprint Scanner is Optical fingerprint scanner, support FC, CE, IP54 Cerficated.
HFSecurity Biometric Fingerprint scanner support fingerprint recognition, hf cloud database, usb2.0 interface can
suitable for windows, android system, linux system are also support
Biometric Fingerprint scanner use ARM9 CPU, falsh memory are 2G, can save many fingerprint template and fingerprint image

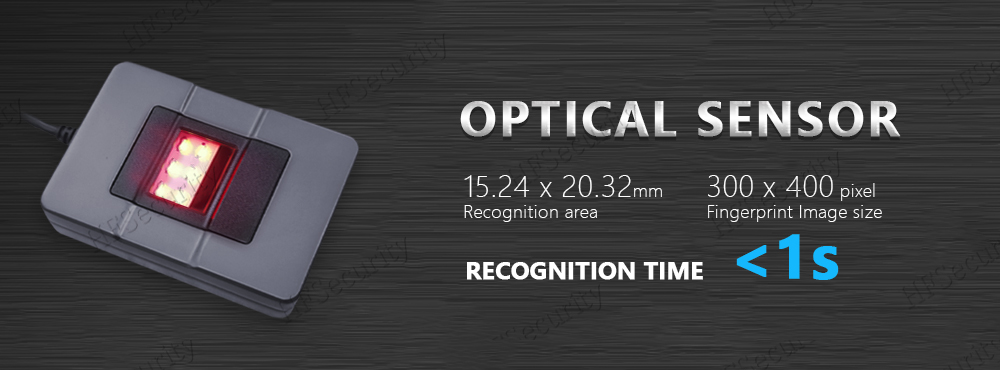

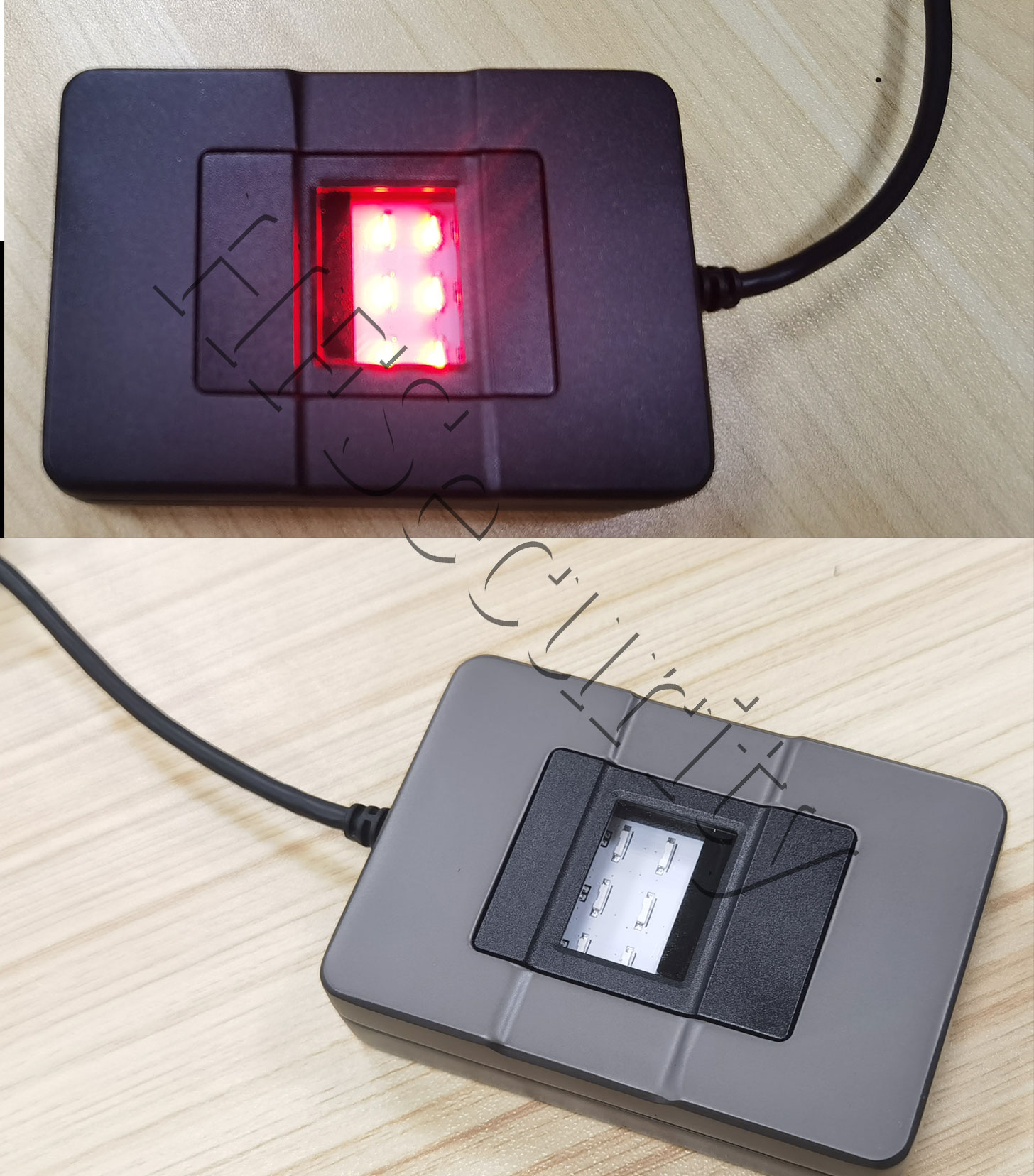

FIngerprint optical sensor , recognition area is 15.24*20.32mm, fingerprint image size is 300*400 pixel,
recognition time <1S

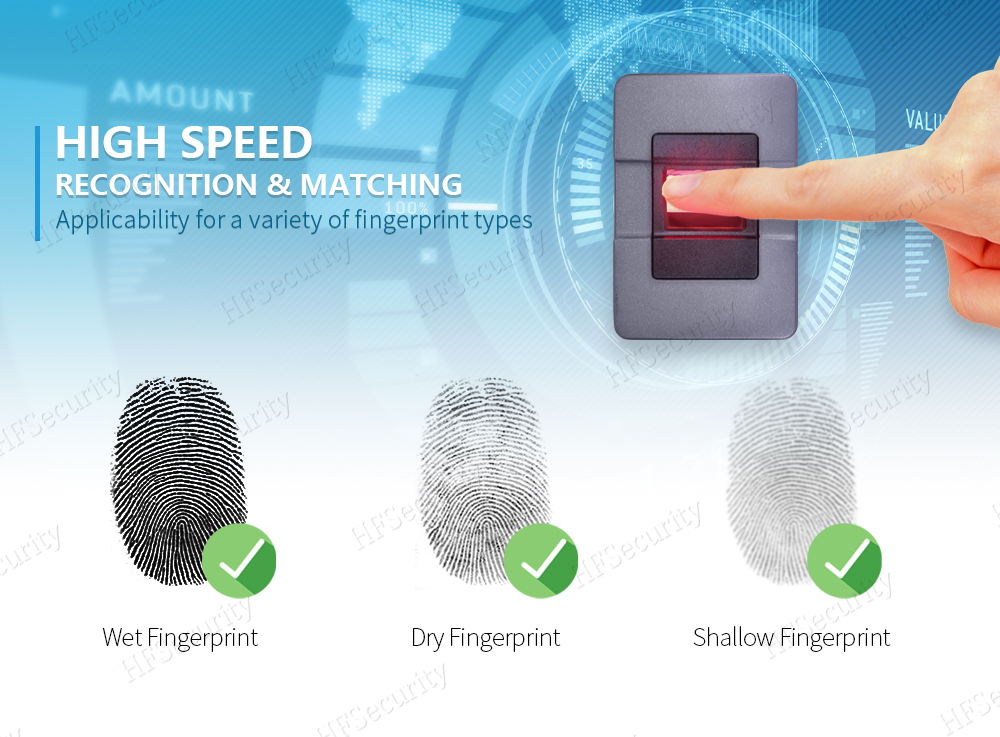

Fingerprint scanner is high spedd recognition matchin device, applicability for a variert of fingerprint types
wet fingerprint, dry fingerprint, shallow fingerprint are also support.
Our HF-OS1000 Fingerprint can support waterproof, other fingerprint scanner did not waterproof.
if you want to know more waterproof video, pls send me your email

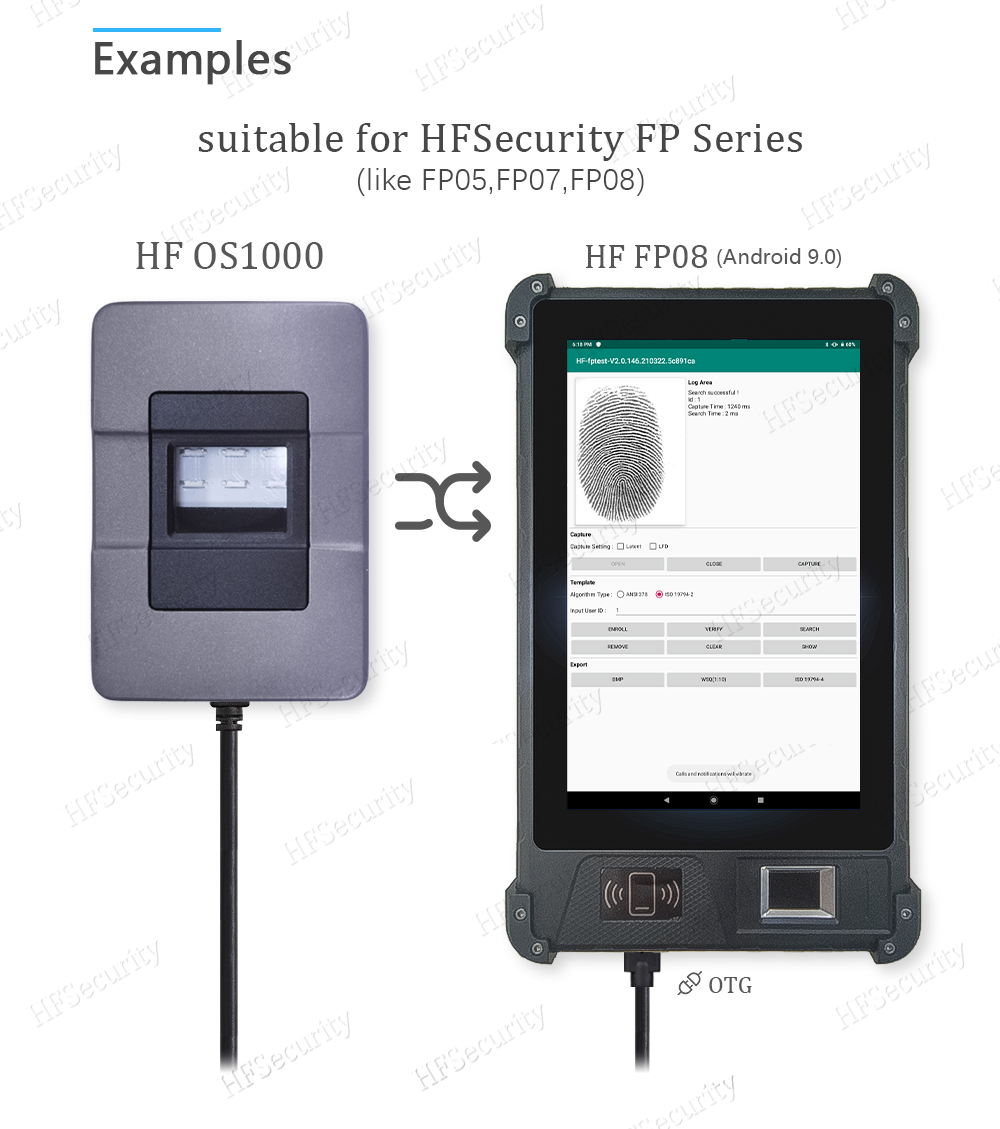

HF0S1000 interface very sample for more biometric tablets, like HFSecurity FP Series, FP05,FP07,FP08
Also yourself mobile device are support

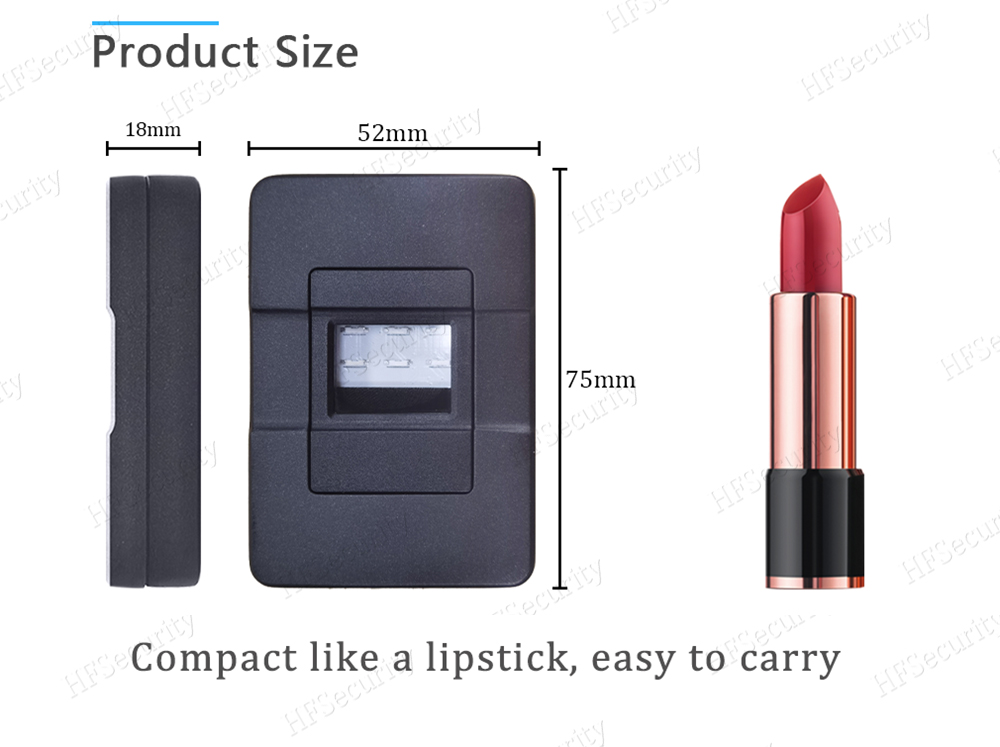

OS1000 Biometric Fingerprint is very small, portable fingerprint scanner, the size like a lipstick, you can carry for everywhere

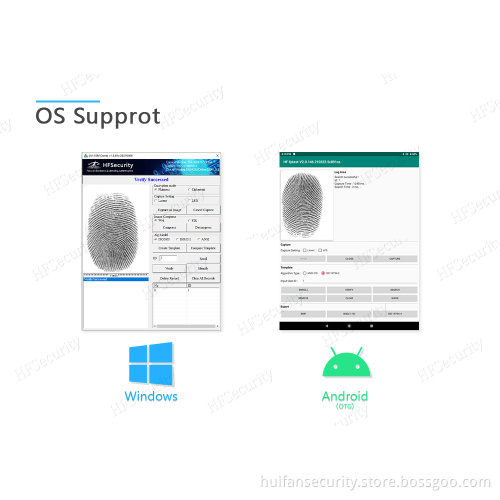

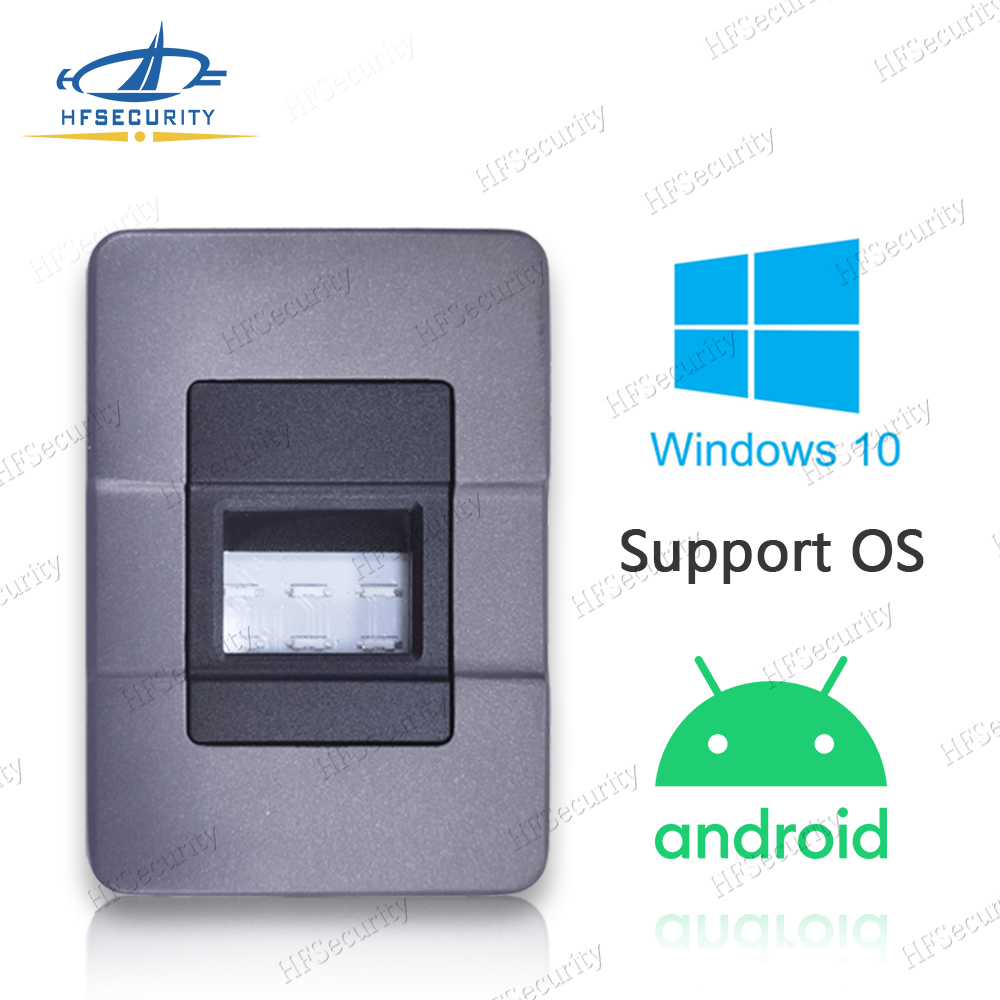

OS1000 Fingerprint Scanner software can support windows, android, linux.
ANSI, ISO Template standard are support, All in one device

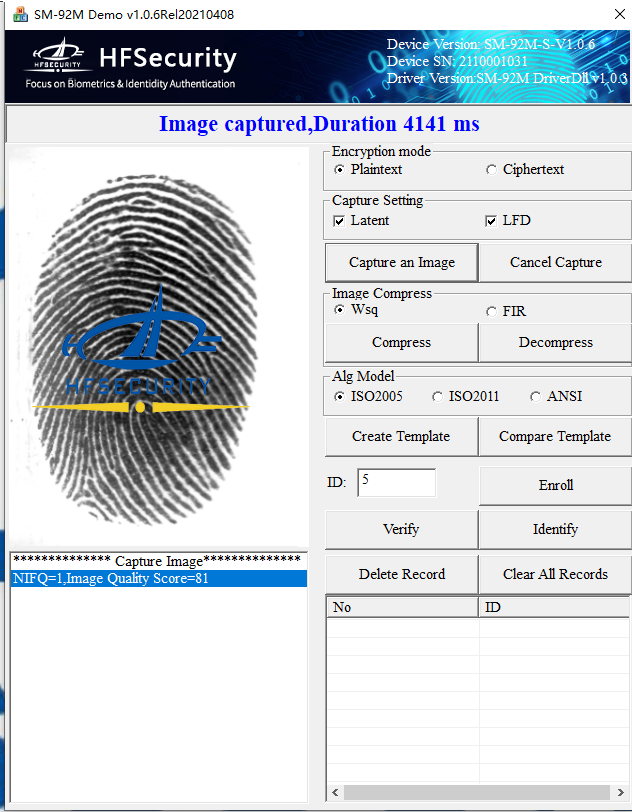

Windows Software Video AS Follow:

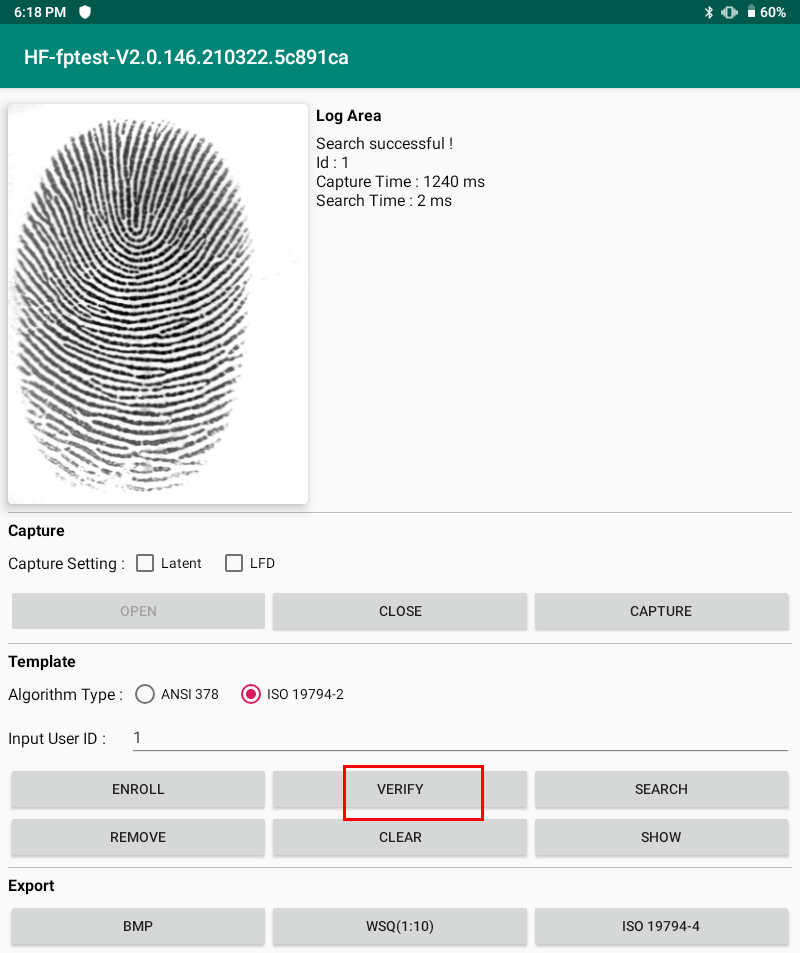

Android Sofaware Video AS Follow:
Specification
Specification OS1000, FAP20 FBI Fingerprint scanner Image resolution
500dpi
CPU 200MHz, ARM9 Flash memory 2MB Image size 300 x 400 pixel Certification CE, FCC, FBI Active platen area
15.24mm x 20.32mm
Maximum Acquisition time
(Placement to Template)
<3s
Grey scale
8 bit, 256 levels
Template size 1024 bytes default ISO/ANSI standard Live finger detection
Yes
Platen Ingress Protection
IP54
ESD immunity
±8kV contact discharge, ±15kV air discharge
Supply voltage
DC 5V±5%
Communication interface
USB2.0
Operating Temperature
-10°C to +45°C
Storage Temperature
-20°C to +50°C
Operating humidity
20%RH～90%RH
Weight
150G Operating system environment
Windows,Android, Linux
Product size 75* 52 * 18(mm)(L*W*H)
