HF-CS100 Waterproof Biometric Fingerprint Scanner
-
$99.001-49 Piece/Pieces
-
$96.00≥50 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
- Port:
- shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Supply Ability: | 100000/month |
|---|---|
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union,Others |
| Incoterm: | EXW |
| Transportation: | Ocean,Land,Air,Express,Others |
| Port: | shenzhen |
HF-CS100 Waterproof Biometric Fingerprint Scanner
Support OS: Android, Windows, Linux
Interface: USB2.0, Micro USB, Type C
Resolution: 508DPI
Capture Size: 18*12.8mm
Image Resolution: 256*360
Fingerprint Template Standard: ISO, ANSI, WSQ
Operating temperature: -30℃-85℃
|

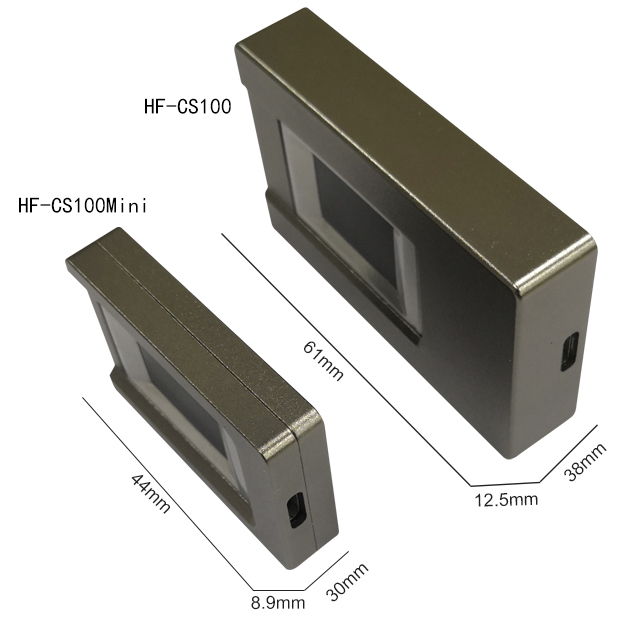

Dimensions |
Parameters |
|
|
Size |
HF-CS100 |
61*38*12.5mm |
|
HF-CS100 MINI |
44*30*8.9mm |
|
|
Weight |
HF-CS100 |
51g |
|
HF-CS100 MINI |
17g |
|
|
Material |
Metal |
|
|
Working Temperature |
-30℃ to +85℃ |
|
|
Sensor Area |
12.8mm*18mm |
|
|
Image format |
ANSI378/ ISO19794-2-4/,WSQ support |
|
|
Connectivity |
Type-C/Micro USB |
|
|
Fingerprint sensor |
Capacitive sensor |
|
|
FRR |
0.01% |
|
|
FAR |
0.0001% |
|
|
Average match time |
<1 second |
|
|
Image size |
256*288/256*360 |
|
|
Resolution |
508 DPI, 8 bit 256 Grayscale |
|
|
Operating system |
Windows,Linux,Android |
|

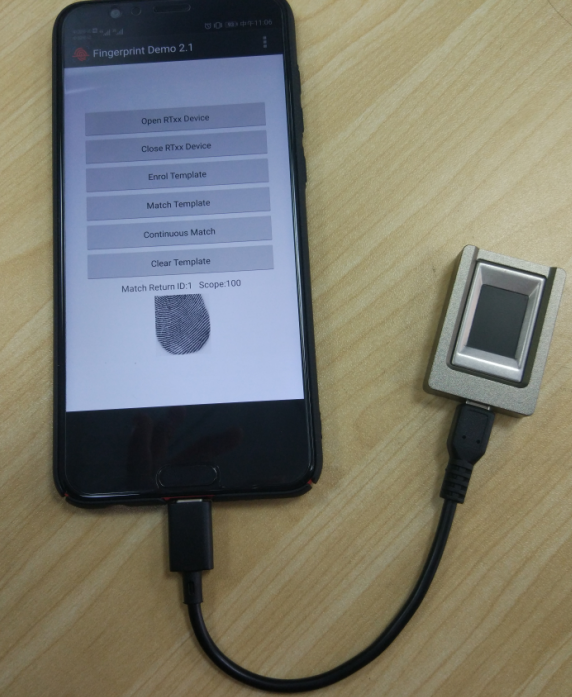

The application demo running on mobile devices is provided for using the HF-CS100/CS100 Mini to achieving fingerprint enrolment, matching and getting fingerprint data. The interface of the application on Android devices .The shows that the fingerprint image is displaying in the App. The shows that getting the minutia data from the HF-CS100/CS100 Mini can be matched in the host device.
