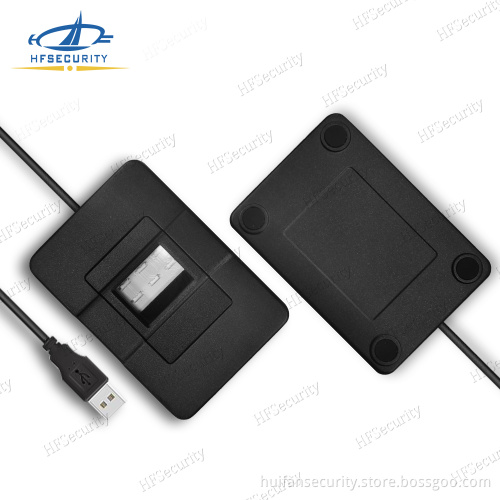

HF-OS100 is 2021 New developed Biometric reader model. Suitable for Android, Windows
and Linux Operation System. The USB interface can be used as peripheral to connect with computer
or Android Smart Device to collect fingerprint templates. A large optical capture area was applied
for capturing. It has been more and more popular in projects. The Fingerprint Scanner SDK will be
offered for free on your further development. It is widely used in bank, security system, police, time
attendance, access control. This product can be worked with the smartphone to use for economic
situation.
· Fingerprint Module Dimensions: 42mm(L)*12mm(W)*24mm(H)
· Weight: 81g
· Image Capture : 21mm*16mm
· Resolution: 500 DPI
· Grey level: 8bit 256 grayscale
|
Dimensions |
81.4mm(L)*62mm(W)*22mm(H) |
|
Weight |
81g |
|
Capture Size |
21mm*16mm |
|
Resolution |
500 DPI |
|
Grey level |
8bit 256 grayscale |
|
Fingerprint Capture method |
Touch |
|
Image Size |
256*360 |
|
Fingerprint Module Dimension |
42mm(L)*24mm(W)*12mm(H) |
|
Template Standard |
ISO19794-2/4, ANSI378/381, WSQ |
|
Support OS |
Android4.4 and higher with USB Host Port |
|
Windows 7,8, 10;32 bit and 64bit |
|
|
Linux with kernel 2.4 (for both x86 and ARM9);32 bit and 64bit |
|
|
Support OS SDK |
Support Standard SDK for Android, Windows, Linux |
|
Interface |
USB2.0, Micro USB |
|
Operating Temperature |
-10℃-50℃ |
|
Storage Temperature |
-40℃-85℃ |
|
Working voltage & Current |
USB 5V/<90mA |
|
Feature |
Live scan with Infrared |
|
Feature |
Customization of Interface |
|
ISO19794-2/4ANSI378, Integrated with many countries database |
|
|
SDK customization support |
