Transformer Evacuation System double stage vacuum system
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean
- Port:
- Chongqing, Shanghai, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 100 per week |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Certificate: | ISO 9001 |
| Transportation: | Ocean |
| Port: | Chongqing,Shanghai,Shenzhen |
Application

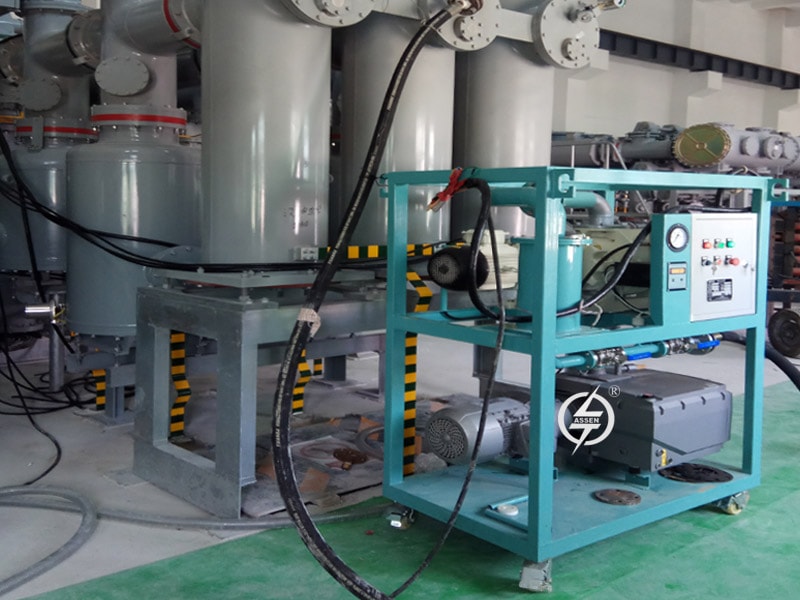

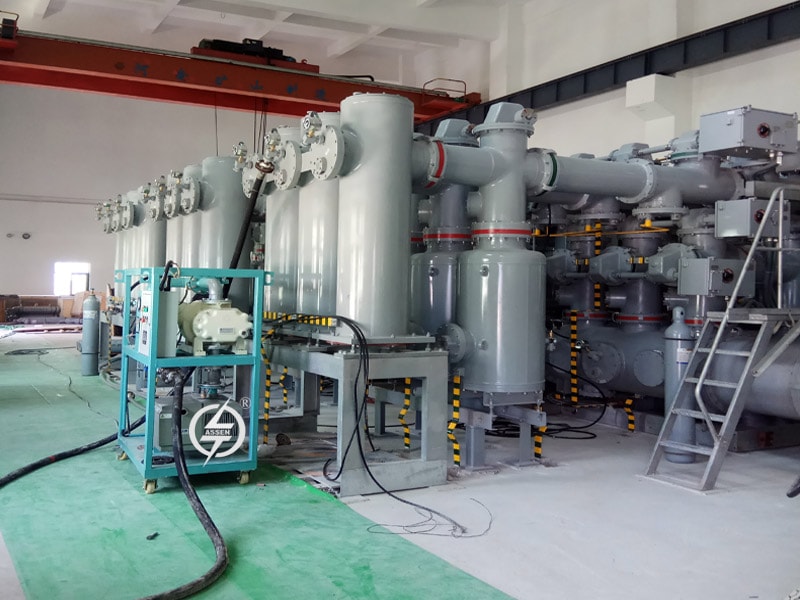

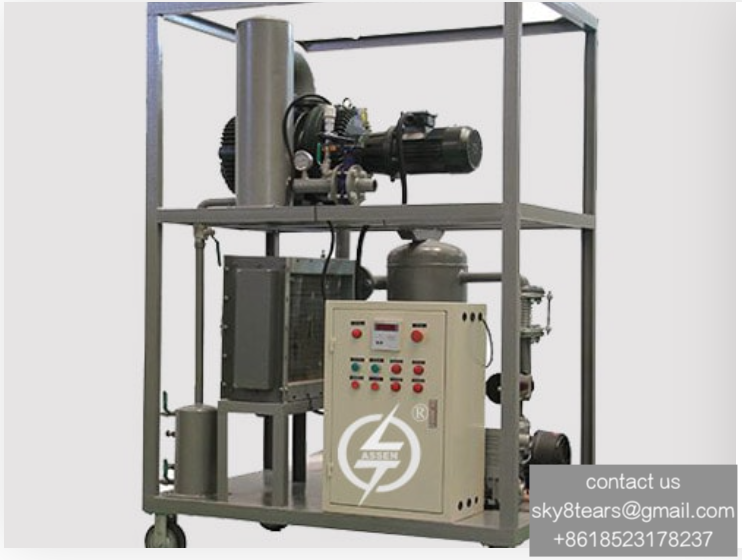

ASV Transformer Evacuation System is mainly used to pump out the gas in a container so as to attain high vacuum.It is composed of vacuum pump and roots pump, The roots pump automatically works by the controlling of relays or electrical-contact vacuum gauge. ASV equips an electrical control system and a cooling water system. It is quick start, big capacity of vacuum evacuating etc, widely used in vacuum smelting, welding, chemical, pharmaceutical and electric power system, particularly suitable for transformer vacuum operation. It has efficient moisture condensers with adequate cooling area that are placed in line with the vacuum pump. In case of non-availability of cold water circulation at site, condensers are also provided with facility of ice cups which aid to hold ice and improve the moisture condensation.
technical data
Model
ASV-30
ASV-70
ASV-150
ASV-300
ASV-600
ASV-1200
Capacity (L/s)
30
70
150
300
600
1200
Ultimate vacuum
5 Pa
Stages
Single
Double stages
Pumping speed of backing pump (L/s)
30
15
30
70
70
150
Pumping speed of roots pump (L/s)
–
70
150
300
600
1200
Power (kw)
2
4
6.5
9
11
18.5
Power supply
380V 3Ph 50Hz (or Customized )
Weight (kg)
240
480
650
960
1250
1560
Dimension (mm)
L
700
1000
1100
1360
1500
1700
W
500
600
650
900
1100
1150
H
1200
1180
1350
1700
1850
1950
Features
1) Roots and Vacuum pump together can ensure its high vacuum level
2) Installs with digital vacuum gauge to indicate high precise vacuum;
3) Portable and easy to move, with low noisy.
