Automatic Running Transformer Evacuation System Equipment
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Transportation:
- Ocean
- Port:
- Chongqing, Shanghai, Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 100 per week |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CIF |
| Certificate: | ISO 9001 |
| Transportation: | Ocean |
| Port: | Chongqing,Shanghai,Shenzhen |

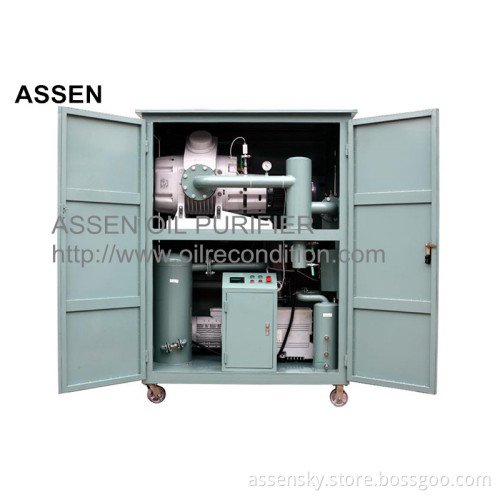

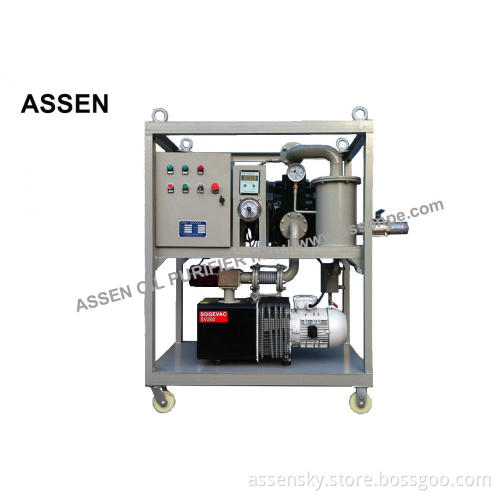

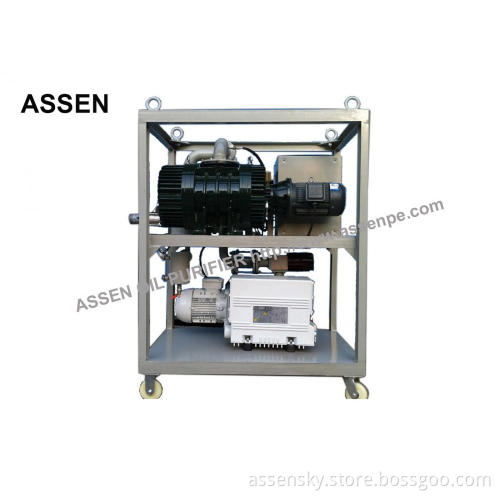

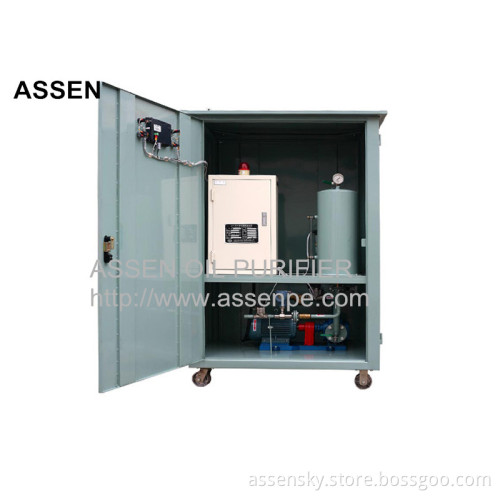

Automatic Running Transformer Evacuation System Equipment
Application

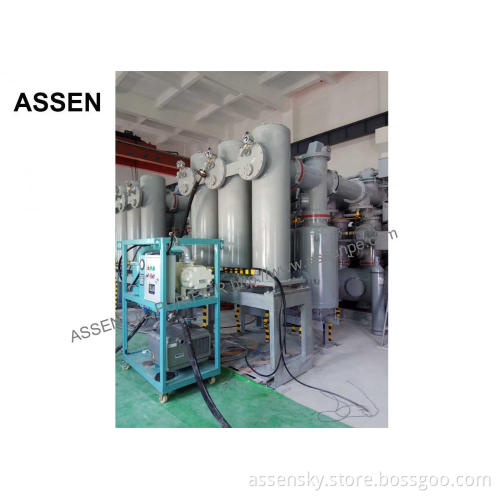

Automatic Running Transformer Evacuation System Equipment is used for vacuuming of power vacuum equipment in substation industry, power supply bureau, power plant and transformer manufacturing plant. The working vacuum of this unit is 1 torr, and the ultimate vacuum that can be achieved is 5pa. It is not suitable for removing gases that are too high in oxygen, toxic, explosive, water-bearing, corrosive to metal materials, and chemically reactive to pump oil.It can automatic running without people stay for inspection.
Technical data
Model
ASV-30
ASV-70
ASV-150
ASV-300
ASV-600
ASV-1200
Capacity (L/s)
30
70
150
300
600
1200
Ultimate vacuum
5 Pa
Stages
Single
Double stages
Pumping speed of backing pump (L/s)
30
15
30
70
70
150
Pumping speed of roots pump (L/s)
–
70
150
300
600
1200
Power (kw)
2
4
6.5
9
11
18.5
Power supply
380V 3Ph 50Hz (or Customized )
Weight (kg)
240
480
650
960
1250
1560
Dimension (mm)
L
700
1000
1100
1360
1500
1700
W
500
600
650
900
1100
1150
H
1200
1180
1350
1700
1850
1950
Features
1) Roots and Vacuum pump together can ensure its high vacuum level
2) Installs with digital vacuum gauge to indicate high precise vacuum;
3) Portable and easy to move, with low noisy.
4) Easy to operate, reliable and safe to use
Company Information
Chongqing Assen Power Equipment Co., LTD, which is professional in design, manufacture, sale of oil purification equipment, relevant testing instruments and provide comprehensive filtering solution, owns advanced production lines and sophisticated detection equipment, first-class R & D staff, professional workers and High-quality sales and service teams
Our Product: Double Stage Transformer Oil Purification System, Vacuum Lubricating Oil Purification, Vacuum Turbine Oil Conditioner, Portable Oil Purifier, Portable Transformer Oil Filter Machine, Water Oil Separator, Light fuel Oil Purifier, and Fully-auto Dielectric Oil Tester, Turn ratio Tester, Acid Tester, Moisture Detector, Interfacial Tension Tester, etc.
Our Service: special filter technology consulting and solutions sector; fast after-sale service feedback system, well-trained service engineer; hands-on training and large-scale equipment operation myrmidon; regularly visit system, CRM customer relationship management system; rapid Filter wearing parts and spare parts supply system.
