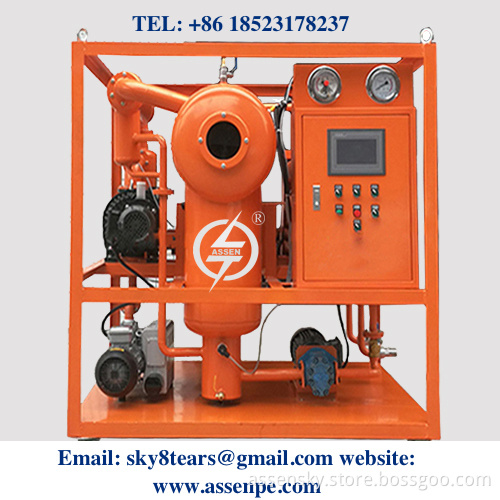

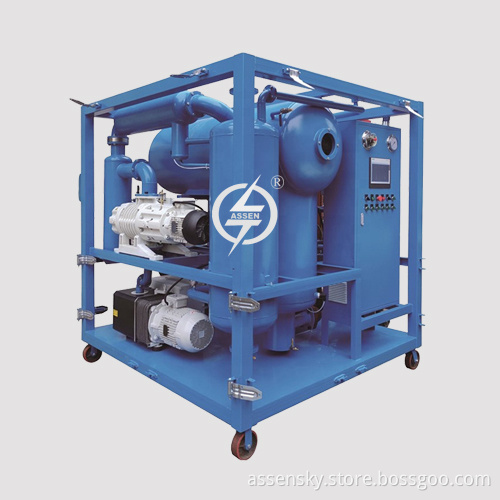

CE Qualified PLC Vacuum Transformer Oil Gas Treatment Equipment, Insulating Oil Refiners
Application
Oils inside transformers are mainly for insulating purpose- apart from which they also suppress corona and arcing, and also act as coolants inside the machines. These oils must be maintained absolutely clean and dry in order to achieve and sustain the optimal insulating performance and dielectric strength. Here rises the need for transformer oil purification process. ASSEN CE Qualified PLC Vacuum Transformer Oil Gas Treatment Equipment is the key to transformer reliability, performance and longevity. Your transformer's insulating oil should be free from moisture, dissolved gases and particles that accumulate as the oil ages. Even some new oils may require treatment to limit these contents to acceptable levels. After treatment by our machine., the BDV of transformer oil will be improved to 75kv or above. It can extend the life of your transformer oil and it is a very important step for transformer maintenance.
Features
1. Dehydration, degassing and impurity removal of 110-1100KV main transformer insulation oil .
2. Acetylene removal of 110-1100KV main transformer insulation oil .
3. Vacuum drying of 110-1100KV main transformer insulation oil .
4. It can remove not only 100% free water and 99.9% dissolve water, but also 100% free gas and 98% dissolve gas.

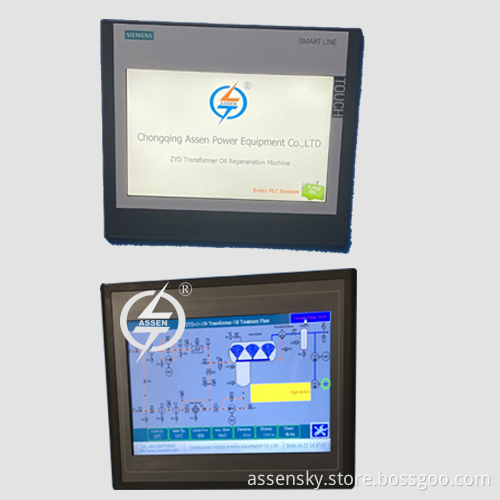

5. Customized parts: PLC, frequency conversion technology, trailer and so on.
6. Advantages and characteristics

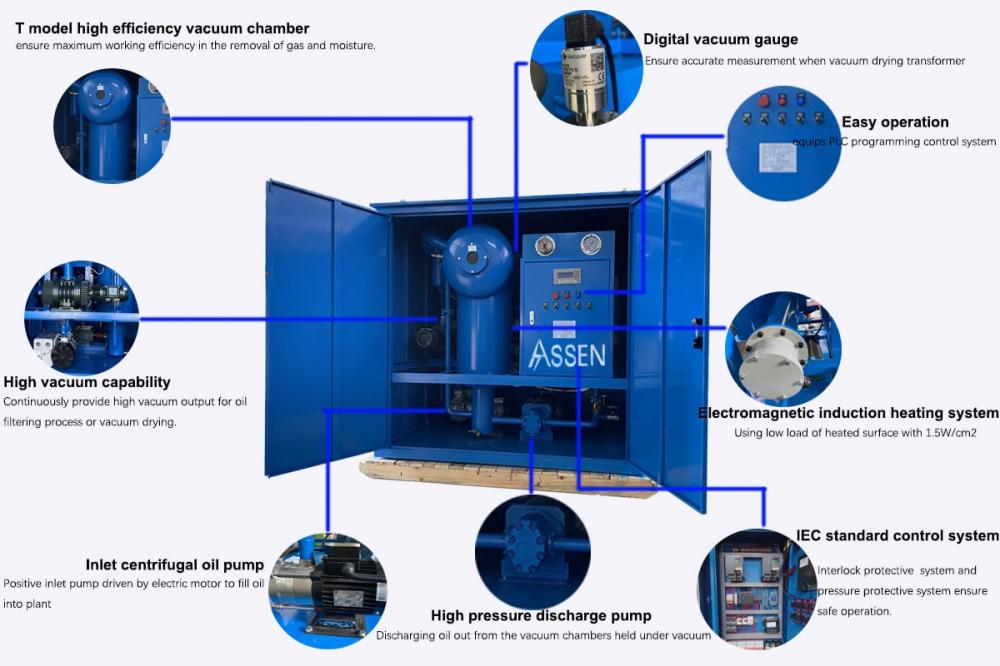

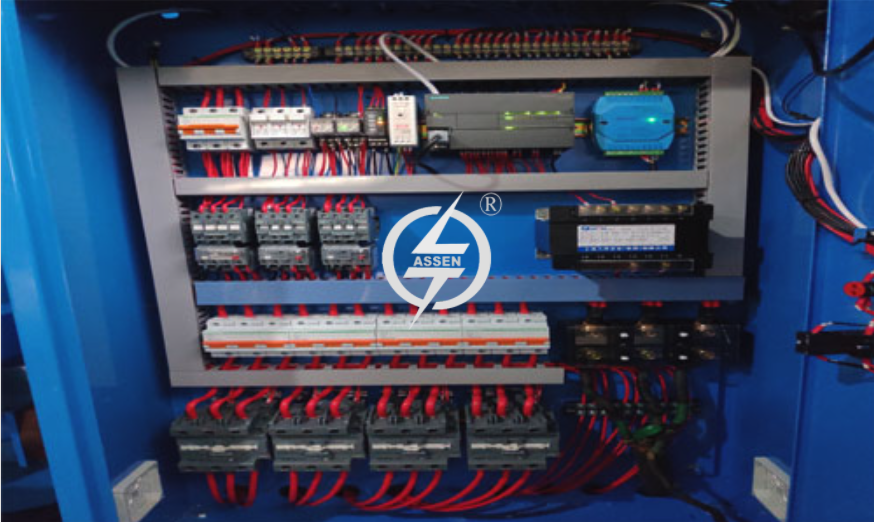

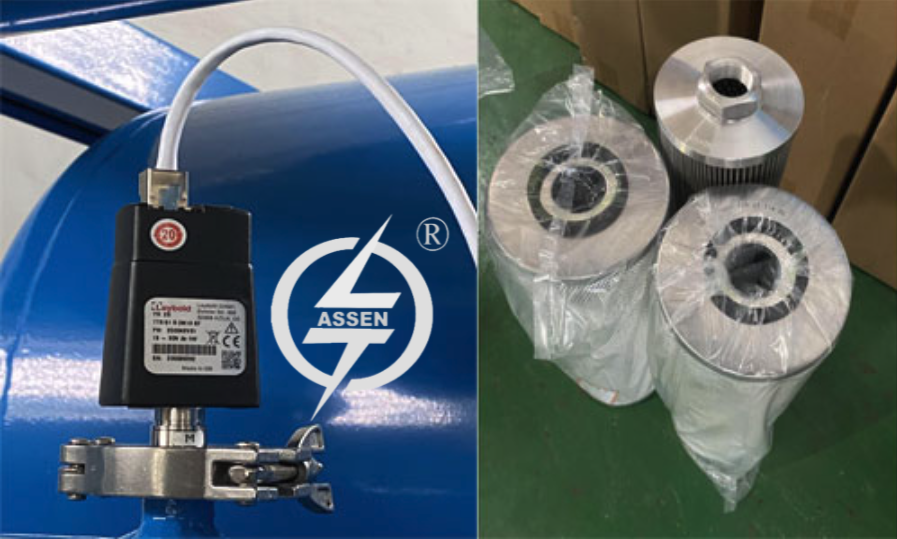

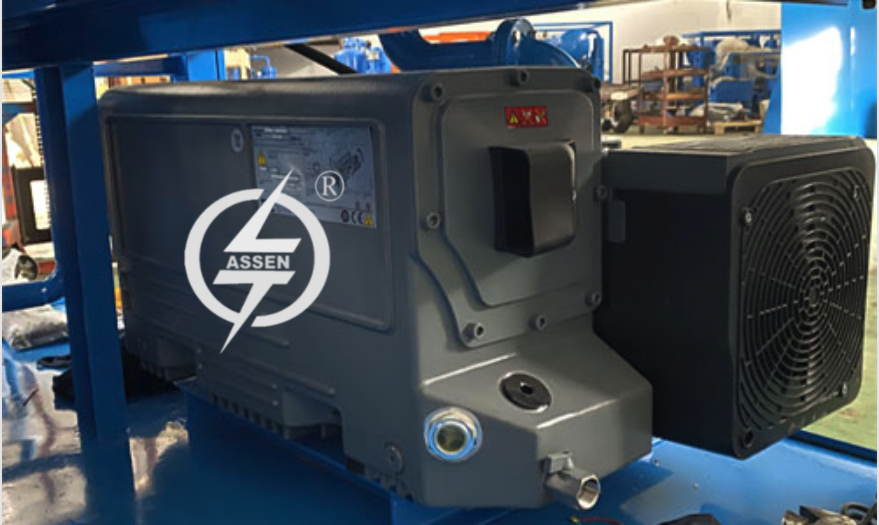

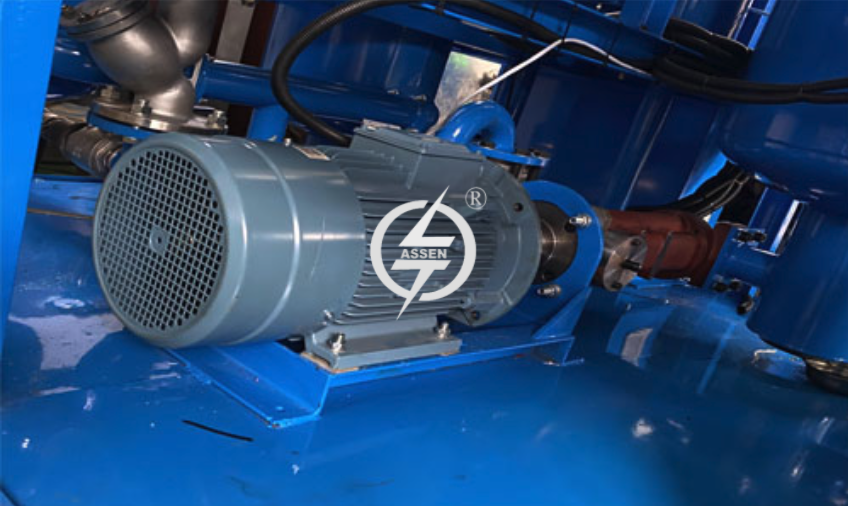

Main parts of CE Qualified PLC Vacuum Transformer Oil Gas Treatment Equipment, Insulating Oil Refiners
Technical Data
|
Parameters |
Unit |
ZYD-30 |
ZYD-50 |
ZYD-100 |
ZYD-150 |
ZYD-200 |
ZYD-250 |
ZYD-300 |
|
|
Flow |
L/min |
30 |
50 |
100 |
150 |
200 |
250 |
300 |
|
|
Working vacuum |
MPa |
0.08 ～ 0.099 |
|||||||
|
Working Pressure |
MPa |
≤0.3 |
|||||||
|
Temperature Range |
℃ |
20 ～ 80 |
|||||||
|
Power |
|
Three Phase 50HZ380V(as per the customer's requirements) |
|||||||
|
Working Noise |
dB（A） |
75 |
75 |
75 |
80 |
80 |
80 |
80 |
|
|
Heating Power |
kW |
30 |
30 |
45 |
60 |
75 |
90 |
120 |
|
|
Total Power |
kW |
35.5 |
37.5 |
52.5 |
71.4 |
86.5 |
102.5 |
135 |
|
|
Inlet/Outlet |
mm |
φ25 |
φ32 |
φ42 |
φ50 |
φ50 |
φ60 |
φ60 |
|
|
Weight |
kg |
600 |
800 |
1050 |
1400 |
1800 |
2000 |
2200 |
|
|
Overall |
Length |
mm |
1050 |
1100 |
1200 |
1450 |
1600 |
1800 |
1900 |
|
Width |
mm |
750 |
800 |
950 |
950 |
1100 |
1200 |
1200 |
|
|
Height |
mm |
1350 |
1400 |
1500 |
1650 |
1800 |
1900 |
1900 |
|
