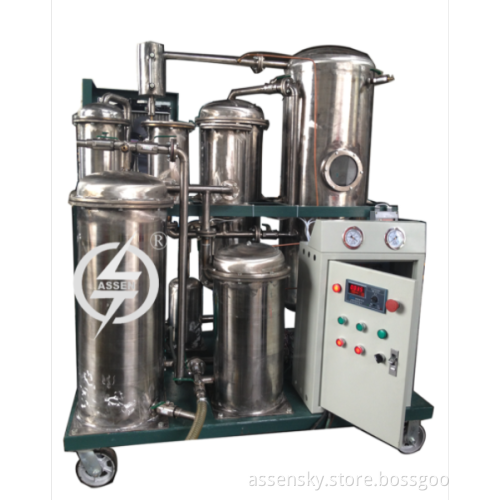

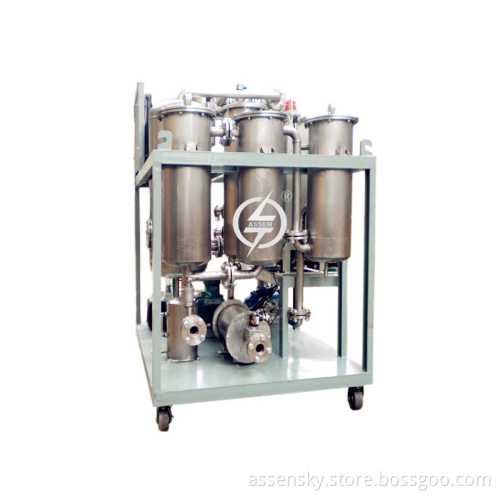

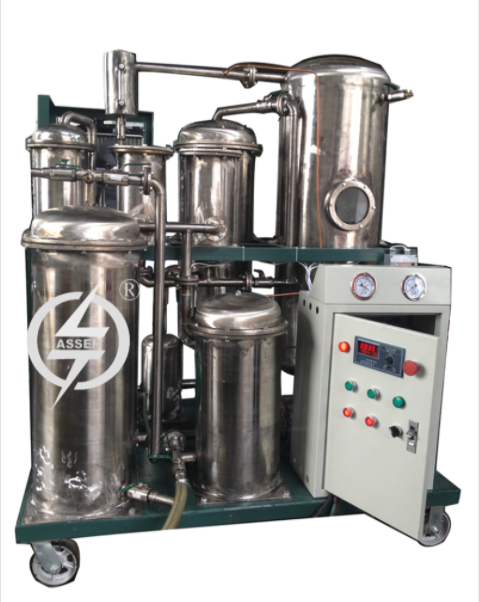

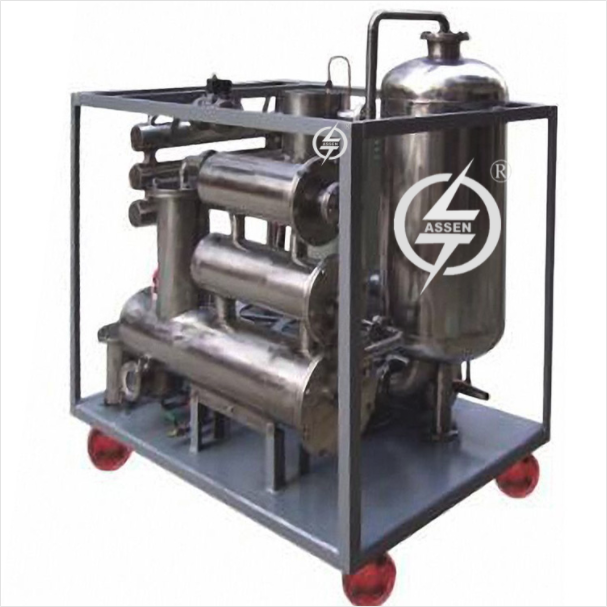

ASSEN Used Cooking Oil Degas and Precise Filtration System with High Quality Filter Element
Application:
ASSEN Used Cooking Oil Degas and Precise Filtration System adopts the pure physical low temperature distillation and micro-filtration purification technology, it can rapidly separate all kinds of contaminations such as moisture, oxides, metal impurities, carbon residues, colloids, suspended and emulsified matters from waste oil, completely restore the physiochemical index (i.e. viscosity, PH value and flashing point) of the waste oil to meet the standards to be exactly same as brand new oil.
It can fully cracks the molecular chains & refractory oxides wrapped by oil film which cannot be filtrated by the common oil purifier; with the pure physical method(flocculation and bridging)to fully remove all the suspended particles or sediment which cannot be dissolved in gasoline or benzene, to recombine and link the oil molecular chain and film, and restore the physiochemical indexes and cleanliness of oil to meet the international standard.
Features
1. Strong purifying ability, removing the fine particles by the fine filtration system with large area and deep level.
2. Automatic back-flushing function: automatically cleaning and purifying a lot of impurities left after treatment.
3. Advanced dielectric absorption cooling system.
4. Pressure protection device, auto heating with temperature control, auto condensed water separating apparatus, drainage in the online operating process, easy to operate, reliable and safe.
5. High quality filter material, large dirt holding capacity, strong corrosion and heat resistance. High mechanical strength, high accuracy of purifying and long service life.
6. Unique degassing and dewatering system: stereoscopic evaporation technology, and multilevel oil water separating technology which can quickly separate water, gas and other impurities from the oils.
7. Stainless Steel materials to make sure the oil won' t be metamorphic during the process
Technical Parameters
Parameters
Unit
COP-S-10
COP-S-20
COP-S-30
COP-S-50
COP-S-100
COP-S-150
COP-S-200
COP-S-300
Flow Rate
L/min
10
20
30
50
100
150
200
300
Working Vacuum
MPa
0.06 ~ -0.095
Working Pressure
MPa
≤0.4
Temperature Range
℃
0 ~ 100
Power supply
380V,50Hz, 3 phase (or as needed)
Working noise
dB(A)
≤65~80
Working time
H
≥ 4000
Continuous working time
H
≥150
Working noise
dB(A)
≤75
≤75
≤75
≤78
≤78
≤78
≤80
≤82
Heating power
KW
36
40
45
72
80
90
120
135
Total power
KW
38
42
47
75
87
101
135
147
Inlet/outlet
mm
25
25
25
32
42
50
50
60
Net weight
Kg
350
380
400
450
550
650
700
750
Overall dimensions
mm
1500×1000×1600
1500
1500
1600
1750
1900
1950
2100
Guarantee Value
Guarantee indexes
Moisture content ≤50 PPM
Impurity size ≤1 micron (no free carbon)
Gas content ≤0.1%
Clean degree ≤4 Grade (NAS1638)
×1050
×1600
×1050
×1650
×1150
×1700
×1150
×1750
×1600
×1950
×1600
×1950
×1600
×2000
