Double-Stage Transformer Oil Purifier Used Transformer Oil Filtration Machine

Double-Stage Transformer Oil Purifier Used Transformer Oil Filtration Machine

$12000.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	T/T,D/P,D/A,L/C
Incoterm:	FOB,CFR,CIF,EXW
Transportation:	Ocean

Product Description

New Update Double Stage Transformer Oil Regeneration Plant Used Transformer Oil Purifier Refining Machine

Product Name :

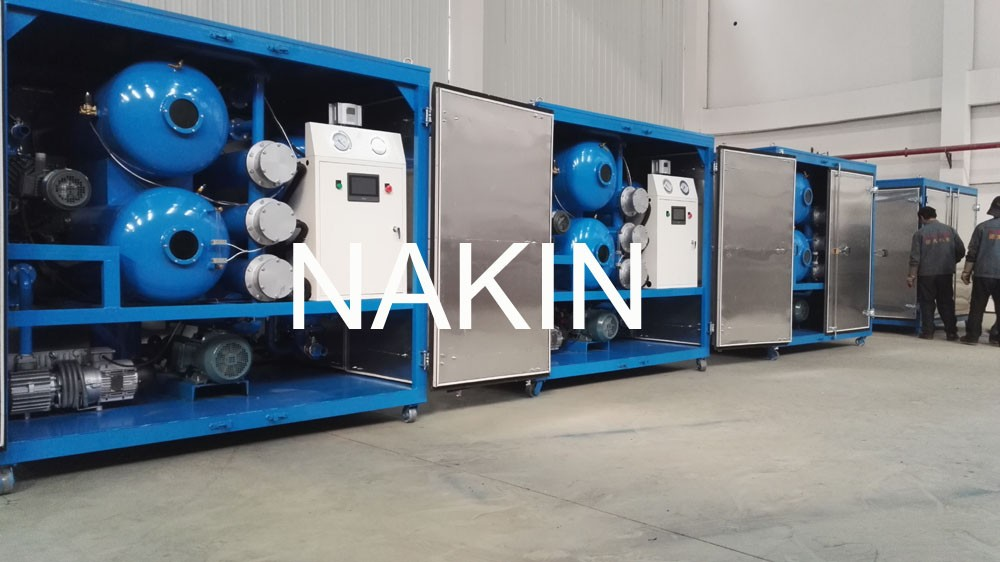

◆ ZYD Double Stage Vacuum Transformer Oil Filtration

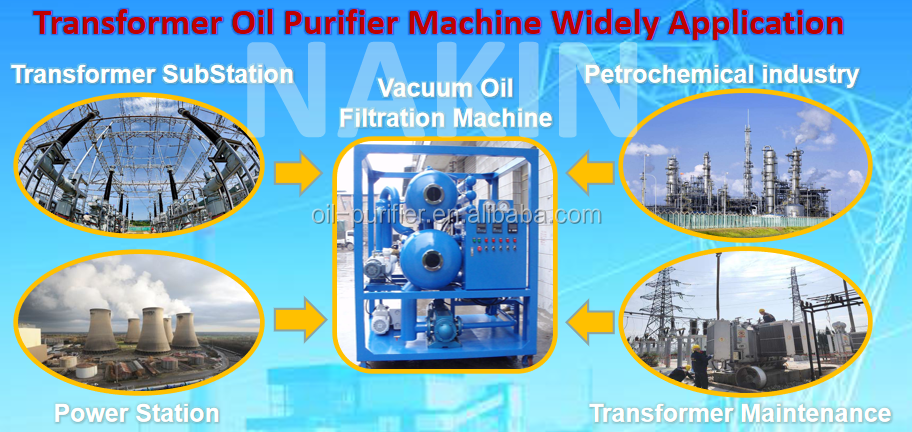

Application:

◆ ZYD Series Double-Stage Vacuum Insulation Oil Purifier can quickly and effectively removemoisture, gas (Hydrogen, acetylene,methane, etc.) and impurities from the insulation oil, to improve the oil dielectric performance. The filtered oil can effectively ensure the power equipment run safely and normally. ZYD Double-stage vacuum oil purifier is widely used in power supply, power generation, power transmission and transformation, power equipment manufacturing, power engineering, electrical equipment maintenance, power testing, electrical research and other industries. It is especially suitable for the filtration of high-grade transformer oil and ultra-high transformer oil, and can be applied to online oil filtering operations at the power substation (like 110KV / 220KV / 500KV). Meanwhile, ZYD oil purifier has the functions of vacuum drying, vacuum oil injection, and hot oil circulation. It can also be used as a separate vacuum pumping unit to evacuate transformers and power equipment.

Features:

◆ The vacuum system uses the roots pump as the main pump and the rotary vane vacuum pump as the primary pump. Fast start-up, large pumping speed, stable performance, and high ultimate vacuum of less than 5Pa.
◆ Double horizontal vacuum separators, combined with Duplex-Stereo film evaporation technology
◆ Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy installation and replacement.
◆ Low-load heating: Adopt advanced internal and external double-tube heat radiation indirect heating technology.
◆ Automatic controlto realize unattended, safe and stable working.
◆ Safety interlock protection for oil pump, vacuum pump, heater,keep safely working
◆ Low noise, easy operation, long maintenance interval, low energy consumption, low operating cost
◆ It can be used together with the insulation oil regeneration device, which has the effect of decoloring, deacidification, deoxidation and removing free carbon and other harmful substances from the oil.

Index	Unit	ZYD-30	ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate	L/H	1800	3000	6000	9000	12000	15000	18000
Working Vacuum	MPa	-0.08～-0.099
Working Pressure	MPa	≤0.4
Working Temperature	℃	20 ～80
Power Supply		380V 50HZ,3Ph (or According to user demand)
Working Noise	dB(A)	≤65～85
Heating Power	Kw	24	30	60	90	120	150	180
Total Power	Kw	27.5	35	65	96.5	128	162	185
Inlet / Outlet	mm	25	32	40	50	50	65	65
Weight	kgs	550	650	880	1000	1250	1550	1800
Dimension(MM)	L	1500	1550	1650	1800	2000	2150	2400
	W	1450	1450	1550	1650	1750	1750	1800
	H	1700	1750	1800	1900	2100	2200	2200
After Purification
Breakdown Voltage	KV	≥ 70
Water Content	ppm	≤ 3
Gas Content	%	≤ 0.1
Particles	µm	≤ 1
