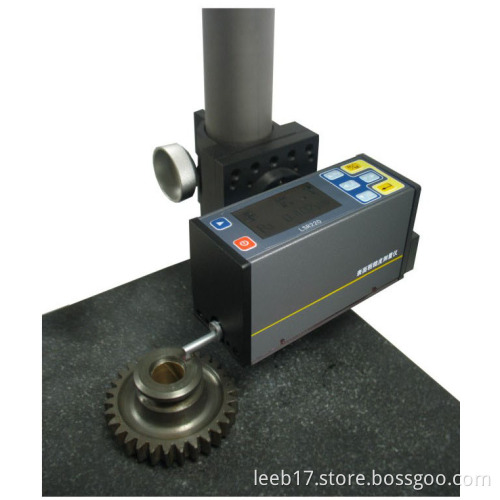

Surface Roughness Tester LSR220
Outline
The Surface Roughness Tester is a small handheld mobile measurement that suitable for production environment, research laboratory and factory measurement room. More importantly, it increases in the engine cylinder to measure the body surface platform-specific parameters reticulate, so it can be used in automotive, aviation, motorcycle ect. Simple operation, overall function, fast measurement, accuracy stability, convenience, it can measure the newest international standard the main parameter.
Features
High accuracy inductance pickup;
15 parameters: a, Rq, Rz, Rt, Rp,Rv,Rs,Rsm,Rz(JIS),Ry(JIS),Rsk,R3z,Rmax,Rpc,
Rmr;
Four filtering methods of RC.PC-RC.GAUSS and D-P;
Compatible with four standards of ISO.DIN.ANSI and JIS;
Can store 15 sets of measurements results;
128*64 dot matrix LCD display all parameters,graphs,Chinese and English menu;
DSP chip is used to control and process data;
Built-in lithium ion chargeable battery and control circuit have high capacity;
Design of mechanical and electrical integration is adopted to achieve small bulk, light weight and easy usage;
Built-in standard RS232 interface enables communication with PC;
Automatic switch off, memory and various prompt instructions;
Optional measurement platform etc.
Measurable parameter of Pk and show the graph.
Technical parameters
|
Name
|
Content
|
|
|
Measuring range
|
Z Axis(Vertical)
|
160μm
|
|
X Axis(Horizontal)
|
17.5mm
|
|
|
Resolution
|
Z Axis(Vertical)
|
0.01μm/±20μm
|
|
0.02μm/±40μm
|
||
|
0.04μm/±80μm
|
||
|
Measurement item
|
Parameters
|
Ra.Rq.Rz.Rt.Rp.Rv.RS.RSm.Rz(JIS).Ry(JIS) .Ry(JIS) .Rsk.R3z.Rmax.Rpc.Rmr.Pk.Ppk.Pvk.Mr1.Mr2.V0;
|
|
Standard
|
ISO.ANSI.DIN.JIS
|
|
|
Graphic
|
Roughness profile.Material ratio curve.Direct profile
|
|
|
Filter
|
RC.PC-RC.Gauss.D-P
|
|
|
Sampling length (lr)
|
0.25, 0.8, 2.5mm
|
|
|
Assessment length ln
|
In=lr×n n=1-5
|
|
|
Pickup
|
principle
|
Differential inductance
|
|
Stylus
|
Natural Diamond, 90B cone angle, 5μm tip radius
|
|
|
Force
|
<4mN
|
|
|
Skid
|
Ruby.Longitudinal radius 40mm
|
|
|
Sliding speed
|
lr=0.25, Vt=0.135mm/s
|
|
|
lr=0.8, Vt=0. 5mm/s
|
||
|
lr=2.5, Vt=1mm/s
|
||
|
Return Vt=1mm/s
|
||
|
Accuracy
|
≤ ±10%
|
|
|
Repeatability
|
≤ 6%
|
|
|
Power supply
|
Built-in Lithium ion battery,AC adapter 8.4V,800mA
|
|
|
Dimensions(L×W×H)
|
119×47×65mm
|
|
|
weight
|
approximately 380g
|
|
