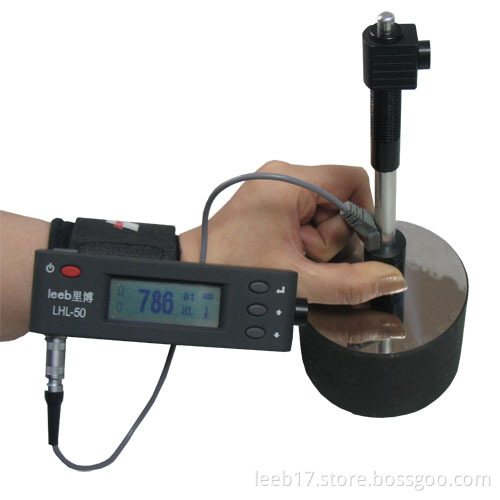

Leeb Hardness Tester LHL 50
Features
Automatic identification of impact direction;
Impact devices D.DC.D+15.C.G.DL.E.DS;
Software calibration function with the indication;
Hardness value can be preset upper and lower limits, automatically out of range, convenient for batch detection;
Avoltage,undervoltage tips, under-voltage auto shutdown;
Lithium-ion rechargeable battery, no memory effect;
All Chinese display, with backlight LCD display, easy to use dark environment;
USB interface for both recharging and date transfer to PC,can be printed;
Option with computer software to meet higher requirements;
Technical specification
|
Name
|
Contents
|
|
Measuring range
|
See the table 1
|
|
Hardness parameter
|
HL,HB,HRB,HRC,HRA,HV,HS
|
|
Limits setting range
|
170-960HLD
|
|
Indication error and repeatability
|
See the table 2
|
|
Measuring direction
|
360vertical down,under oblique,level,ramp,vertical upward
|
|
Charging time
|
8 hours ( overcharge protection)
|
|
Battery type
|
5V,1.2A,6W
|
|
Operating temperature
|
0~40
|
|
Dimension
|
128mm×37mm×23.3mm
|
|
Weight
|
166 grams
|
Standard Delivery
Main Unit ×1
Impact device D ×1
Power adapter ×1
Small supporting ring ×1
Cleaning brush ×1
High block andCertificate ×1
USB communication and charging cable ×1
