oil dehydration plant
-
USD4900≥1 Set/Sets
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 1000 |
| Supply Ability: | 1000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO,CE,SGS |
| Transportation: | Ocean,Land,Air |
Application:

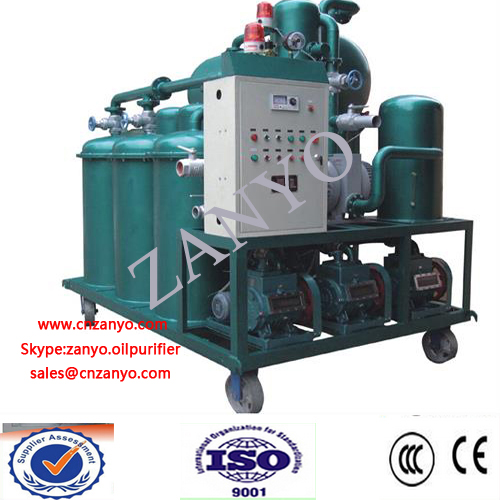

ZYW oil dehydration plant is good economic benefits, widely applied in petroleum, food, chemical, mining, metallurgy, electric power, transportation, machinery manufacturing, railway etc. it is specially for separating water for oil, it adopts vacuum distillation technology, and can quickly and completely remove water from oil. The oil include: cooking oil, biodiesel oil, engine oil, lube oil, insulating oil, turbine oil etc
Food usage: we suggest to choose stainless steel body.
Machine Features:
1. Separation system: [T " type of the evaporator, enlarged the separating surface and separating time. Adopts the vacuum vaporizing technology to remove water, odor, and alcohol, and volatilization materials to Inhibit acid value and peroxide value increases.
2. Heating system: Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
3. Unique and advanced dewatering System.
4. Protecting system: Adopts interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Main Spare Parts Introduction
1. Separation system: the water in heated oil become vapor in vacuum tank, then the vapor become liquid water due the low temperature in Gas and water separator. The Gas and water separator not only reducing the temperature of vacuum pump, but also it can reduce the frequency of changing vacuum pump oil so that it can enlarge the lifetime of vacuum pump.
2. Cooling system: it is used to cool the vacuum pump body to protect the vacuum pump`s damage from high temperature.
3. Vacuum pump: exhaust the gas in vacuum tank
4. Oil pump: transfer the oil which is exhausted the gas to outside.
Data:
|
Index name |
Unit |
ZYW-10 |
ZYW-20 |
ZYW-30 |
ZYW-50 |
ZYW-100 |
ZYW-150 |
ZYW-200 |
ZYW-300 |
|
Flow rate |
L/Min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
|
Working vacuum |
MPa |
-0.06~-0.095 |
|||||||
|
Working pressure |
MPa |
≤ 0.4 |
|||||||
|
Temperature range |
C |
20 ~80 |
|||||||
|
Water content |
ppm |
≤5 |
|||||||
|
Gas content |
% |
≤ 0.1 |
|||||||
|
Power supply |
|
(As per user`s option) |
|||||||
The final treated oil index:
|
Item |
Guarantee indexes |
|
Moisture content |
≤5PPM |
|
Gas content |
≤0.1% |
Long-term quality warranty of 2 years.
Our products list as following:
ZYS-high effective vacuum transformer oil purification machine
ZYD-I,ZYD-II Double stages insulating oil purifier
ZYM-Mobile/trailer type transformer oil treatment equipment
ZYAD-Air dryer for drying electric equipments
ZYT-Turbine oil filtration machine
ZYJ-Coalescence and separating oil filter
ZYL-Lubricating oil purifier/hydraulic oil treatment device
ZYK- Phosphate ester fire-resistant oil purification machine
ZYR-Transformer oil regeneration device
ZYP-Plate pressure oil filter
ZYJL-Portable oil purifier
ZY-IIJ-II-BDV oil tester, insulating oil dielectric strength tester
ZYMMT-Oil moisture sensor, water content sensor
ZYRS-Engine oil regeneration system
ZYL-D- oil decoloring machine/oil recycling machine
