Waste Engine oil regeneration system
-
USD36000≥1 Set/Sets
- Payment Type:
- L/C, T/T, Western Union
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 10 Days
- Transportation:
- Ocean
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | chongqing china |
|---|---|
| Productivity: | 10 |
| Supply Ability: | 1500 |
| Payment Type: | L/C,T/T,Western Union |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | CE |
| Transportation: | Ocean |
Application:

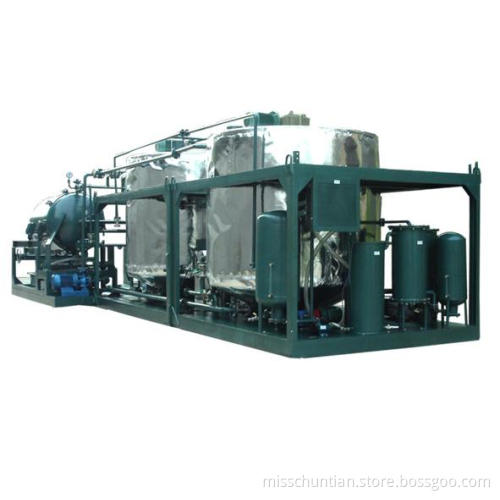

Series ZYL-D waste engine oil purifier is mainly for regenerating the waste black engine oil. ZYL-D has the functions of dewatering, degassing, decolor. Improving the engine oil`s properties, restoring the oil`s performance and lowering wear to ensure the engine can work normally and safely, prolonging the engine and engine oil lifetime. The treated oil can be base oil by adding additives.
This machine can separate water, gas, particles, deeply oxides, free carbon, colloid, asphalt and wax from unqualified engine oil effectively. To make black engine oil become transparent into golden color.
The final treated oil is the base oil, you can add the additives, then you can get different engine oils.
Main Features:
|
1. To eliminate oil-ion`s charge polarity, collecting oil-ions and separating out them, removing colloid, asphalt and other chemical compounds by adding special chemicals. |
|
2. Gas treatment system combined with air filter and vacuum degassing, dewatering to remove the odor and water. |
|
3. Two filtering units can realize continuous production, closed type filtering system made of stainless steel mesh, reliable, no pollution. |
|
4. Vacuum degassing, dewatering, removing particles, to make sure improving oil properties, restoring oil performance effectively. |
|
5. Efficient electric heating system, heating uniformity, less power consumption. |
|
6. Reasonable layout, compact structure, small space applied, large output. |
|
7. Imported Germany electric parts such as SIEMENS and SCHNEIDER. |
|
8. It is good performance, safe and reliable. |
|
9. Usually, the Ratio of regeneration of the machine is 75% to 90%, if there is little water in the machine, the ratio of the machine will be very high. we can provide you the design for removing waste water. |
Main Technical Parameters:
|
Index name |
unit |
ZYL-D -1000 |
JZS-2000 |
JZS -5000 |
JZS-10000 |
|
Flow rate |
L/Day |
1000 |
2000 |
5000 |
10000 |
|
Ratio of regeneration |
% |
75 -95 |
|||
|
Working noise |
dB(A) |
≤70 |
|||
|
Temperature range |
℃ |
80--180 |
|||
|
Working pressure |
MPa |
-0.095 -- 0.4 |
|||
|
Power supply |
|
380V 50HZ 3PH(As per user`soption) |
|||
|
Total power |
kW |
68 |
122 |
162 |
216 |
|
Inlet(Outlet) |
mm |
32 |
32 |
42 |
42 |
|
Heating power |
kW |
55 |
108 |
145 |
192 |
|
Filtration system |
mm |
3000x1200 x1900 |
3000x1400 x1900 |
3500x1600 x2100 |
2x3500x1600 x2100 |
|
Reactor system |
mm |
2500x2100 x2300 |
3000x2100 x2300 |
3300x2100 x2300 |
5600x2100 x2300 |
|
Gas treatment system |
mm |
1360x800 x3000 |
1360x800 x3000 |
1560x950 x3000 |
1560x950 x3000 |
|
Weight |
kgs |
3100 |
4200 |
6700 |
8800 |
