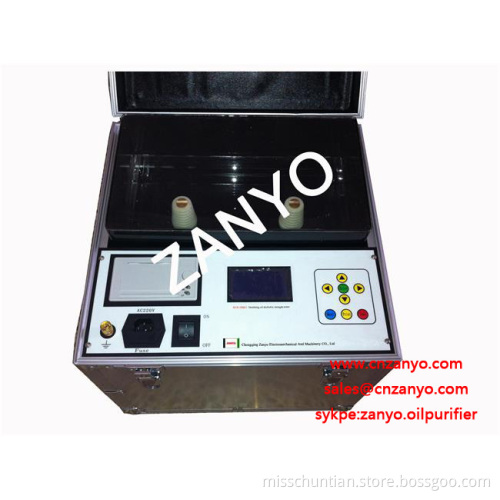

Insulating oil tester for testing dielectric strength
-
USD1900≥1 Set/Sets
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Productivity: | 10000 |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | IEC156 |
| Transportation: | Ocean,Land,Air |
Application:
ZYIIJ-II series dielectric strength Oil tester for test various insulation oil dielectric strength. it is made According to the international IEC-156 each country`s standard GB507-86 requirements "insulating oil dielectric strength measurement".
In the electric power industry, dielectric oil is wildly applied in electric equipments. The dielectric strength is a comprehensive index for insulating oil. So, Series ZYIIJ-II oil tester is designed for testing insulating oil`s dielectric strength. ZYIIJ-II series oil tester is designed according to international standard of IEC156. Adopt industrial single chip as controller, apply large integrate circuit, new type I/O interface, LCD displayer, combined with special testing and anti-jamming technologies which greatly improve the testers` performances, and it is a automatic tester.
Main features:
|
1. High degree of automation, easy to operate (just press a button). |
|
2. The oil tester with menu management, easy to understand each input parameter. |
|
3. To store 99 groups oil sample test data to facilitate future access to and print, test data can be stored for 10 years in power off state. |
|
4. The system clock can continue to work in the power off state. |
|
5. By using the RS232 port with a software upgrade or with the PC, on-line detection. |
|
6. Anti-interference ability |
|
7. High precision detection |
|
8. Small size, light weight, simple operations |
Technical Parameters:
|
Power supply |
AC220V±10%, 50Hz |
|
Output voltage |
0-80KV (60KV.80KV) |
|
Capacity |
1.2KVA (1.6KVA.2.0KVA) |
|
Speed of pressure rise |
about 2KV/S |
|
Voltage test precision |
±3% |
|
Breakdown sensitivity |
<2KV |
|
Wave difference |
<3% |
|
Time of breakdown |
<10ms |
|
Working altitude |
<1500m (if over 1500m can be designed specially) |
|
Dimension |
480mm*460mm*460mm |
|
Working condition |
|
|
Temperature |
30Celsius degree--40Celsius degree |
|
humidity |
The biggest comparatively humidity85% |
|
Reserve circumstance |
|
|
Temperature |
-20Celsius degree-60Celsius degree |
|
humidity |
The biggest comparatively humidity75% |
