Application:

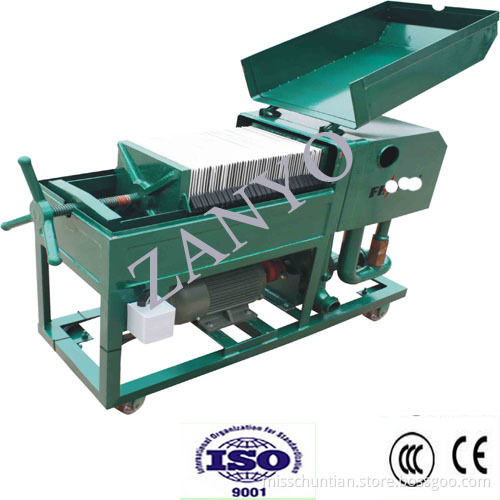

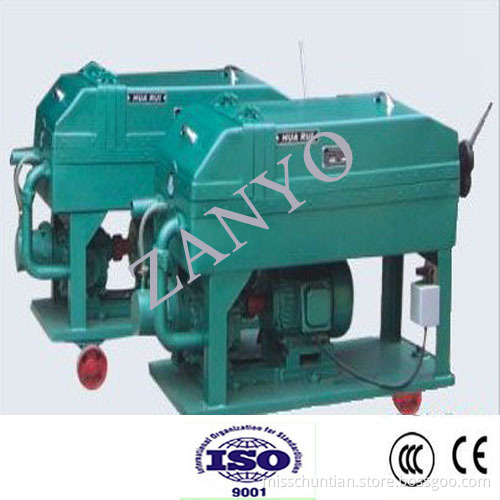

Paper Type Plate Pressure oil Press Filter is consisted of filter bed, plates, oil pump, motor and filtering papers. The filter bed and plates consist of a filter house, between the plates, the papers as filtering media. It also can purify fuel oil, cooking oil by using special materials and motor.
Paper Type Plate Pressure oil Press Filter is designed for power plants, industrial and mining substations, lubricants warehouse, tractor station, petroleum, chemical, cement, metallurgy etc. It can purify transformer oil, turbine oil, hydraulic oils, gear oils, lubricating oil and remove water, mechanical impurities. ZYP series pressure oil purifier has a simple structure, convenient filter replacement, high filtration precision, easy operation, low cost.
The final treated oil index:
|
Item |
Guarantee indexes |
|
Moisture content |
≤50 PPM |
|
Impurity size |
≤1 micron |
Technical Parameters
|
Model |
ZPY -30 |
ZPY -50 |
ZYP -100 |
ZYP -125 |
ZYP -150 |
ZYP -200 |
ZYP -300 |
|
Flow (L/min) |
30 |
50 |
100 |
125 |
150 |
200 |
300 |
|
Working pressure (MPa ) |
0~0.4 |
||||||
|
Filter Area (M2 ) |
0.38 |
0.52 |
1.57 |
1.88 |
2.35 |
3.14 |
4.08 |
|
The number of filter box |
11 |
13 |
17 |
11 |
13 |
19 |
25 |
|
The Number of plate |
12 |
14 |
18 |
12 |
14 |
20 |
26 |
|
Plate size (mm ) |
180×180 |
280×280 |
|||||
Optional Parts
Filter papers
Stainless steel machine body
Carbon steel machine body
Long-term quality warranty of 2 years.
Our products list as following:
ZYS-high effective vacuum transformer oil purification machine
ZYD-I,ZYD-II Double stages insulating oil purifier
ZYM-Mobile/trailer type transformer oil treatment equipment
ZYAD-Air dryer for drying electric equipments
ZYT-Turbine oil filtration machine
ZYJ-Coalescence and separating oil filter
ZYL-Lubricating oil purifier/hydraulic oil treatment device
ZYK- Phosphate ester fire-resistant oil purification machine
ZYR-Transformer oil regeneration device
ZYP-Plate pressure oil filter
ZYJL-Portable oil purifier
ZY-IIJ-II-BDV oil tester, insulating oil dielectric strength tester
ZYMMT-Oil moisture sensor, water content sensor
ZYRS-Engine oil regeneration system
ZYL-D- oil decoloring machine/oil recycling machine
