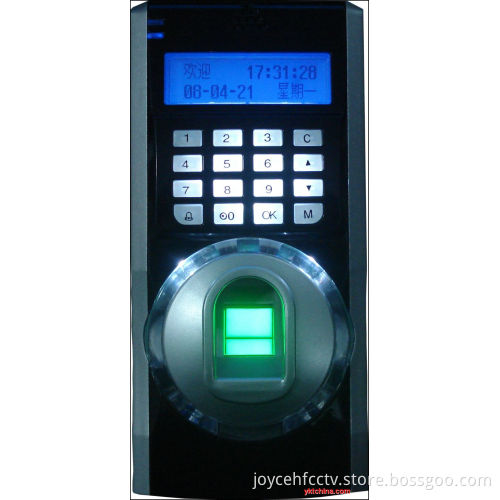

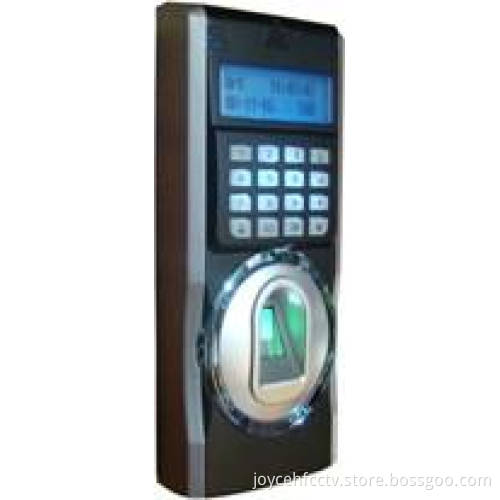

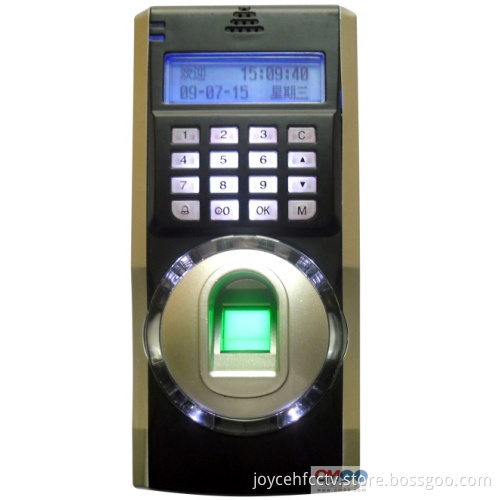

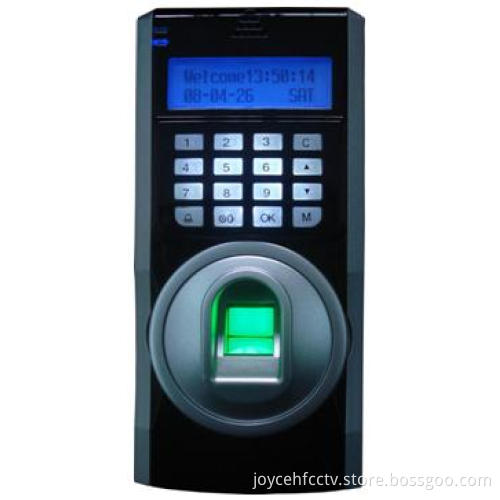

Access Control System HF-F5

Detailed Product Description

Access Control system HF-F5:
1.fingerprint access control with time attendance
2. support USB
3. TCI/IP and ID card
Access Control System FH-F5

Features:
1. Worldwide leading identification speed and capacity:
<1Sec Identification (Full of 3000 Fingerprint), no any false identified
<1Sec Identification (Full of 30000 Fingerprint)*, no any false identified
2. Internet Visit Function: visit a terminal via internet
3. Flexible interface: RS232/RS485/TCPIP */Wiegand/MODEM*
/ Outside USB Comm. Port / USB Download
4. English or other language LCD display/Speaker Voice/beep sound
English or other language Application Software for Access control and T&A
5. Waterproof keypad with write back light
6.Green & red lights hint.
7. Hard surface optical sensor, Uncoated glass window, scratch and impact resistance,
360-degree rotation identification, High sensitive to identify No longer need film cover on the sensor, no longer need to replacing again and again
8. Easy to install and setup
9. RF ID card option: 125KHZ, EM
10. Multi-identification methods: fingerprint, PIN, ID card*, or combination

 Specifications:
Item Parameter
Matching Mode 1N (recommended)
1:1
Fingerprints Capacity 3000/10000* /30000*   Fingerprint templates
Identification Speed <1Sec in 1to3000 fingerprints identification
<1Sec in 1to30000 fingerprints* identification
CPU Industrial-class ARM9 Embedded
False Accept Rate 0.0001%
False Refuse Rate 0.001%
Scanner Uncoated Optical Sensor, Scratch and impact resistant
Record Capacity Management 1000
 Log Records 80000 (up to 150,000)
Recognition Mode Fingerprint , PIN, ID Card* or combinations
Working Mode Stand alone, Network
Weight 1.5kg
LCD Dimension 122*32 Dots Blue LCD
Power Supply 9-24V DC ,500MA
Dimension  (mm) 180(L)*82(W)*55(H)mm
Communication  RS232, RS485, TCP/IP , INTERNET
Access control Relay NO/NC, Wiegand26
50 Time Zone , 5 Grouping, 10 Combinations, 25 Time bell, Multi-fingers access, Door bell
Alarm method Dismantlement, threaten, overtime,
Unlock illegally
Language English or other for LCD display and sound
Temperature operating 0°C - 45°C
Humidity operating 20%-80%
Options Item * above
