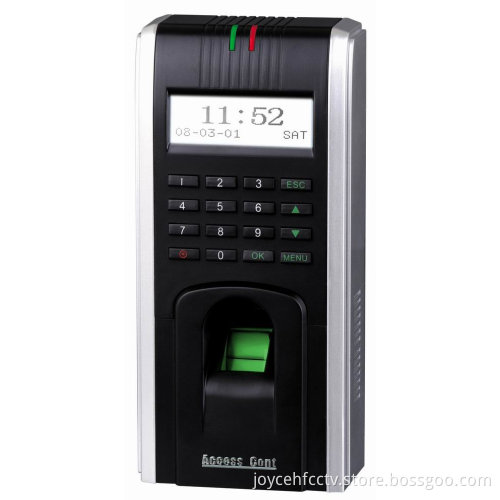

Access Control System HF-F707

Detailed Product Description

Access Control System HF-F707:
1. widely used in housing estate
2. fingerprint+ID card+password
3. high security rate
Access Control System HF-F707

Product Introduction:

Fingerprint access control HF-F707 is a widely used Access Control in the office. Choosing a lot of stable original parts, strictly follow the national security product standard. All input /output are using anti-jamming protection and over-voltage/circuit protection. The product experiences the strict degradation test before leaving factory, The greatest advantage of F707 is easy to install, with multifunctional & elegant design and reasonable price.

Benefits

One fingerprint develop the whole world.
Adopt high reliable industrial component parts and optical sensor, watchdog monitor to avoid unit hang ,unique reset key keeps the unit well work.
Easy to install all the cable connection EM lock installation are the same to the traditional IC/ID Access control.
One-way alarm output :dismantlement alarm ,threaten alarm ,unlock illegally alarm , not block alarm.

TechnicalSpecifications:

 * User capacity : 1500
 * Transaction capacity : 50000
 * Verification mode : 1:1 or 1:N
 * Access Control : 50 Time Zone ,5 Grouping, 10 Combination, Holiday Management, support  many fingerprints access ,support standalone work
 * Electric lock control: Directness relay out put 3A/12VDC.
 * Communicational: TCP/IP or RS232 and RS485
 * Keyboard and Display: LCD with 80 character and figure keypad
 * Power: 9-24 VDC, stay current: 50MA, work current: 400 MA
 * Identification speed: =2 seconds
 * FRR: =1%
 * FAR: =0.0001%
 * Temperature operating: 0°C - 45°C
 * Humidity operating: 20%-80%
 * Language: simplified Chinese, traditional Chinese, English, other Languages
 * Size: 180(L)*82(W)*55(H)mm
 * Management software Transaction fingerprint management and Access control  attendance options, and network management
 * Standard: Wire Doorbell, Wiegand OUT
 * Optional: Webserver, Workcode, RIS
