Product Description

Brief Introduction About Sino-NSH

Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.We can ensure the first-class quality as well as provide the first-class service.NSH has been engaging in oil purifier producing, our products are extensively used in the fields of electric power, petroleum, natural gas, mechanical engineering, metallurgy etc.

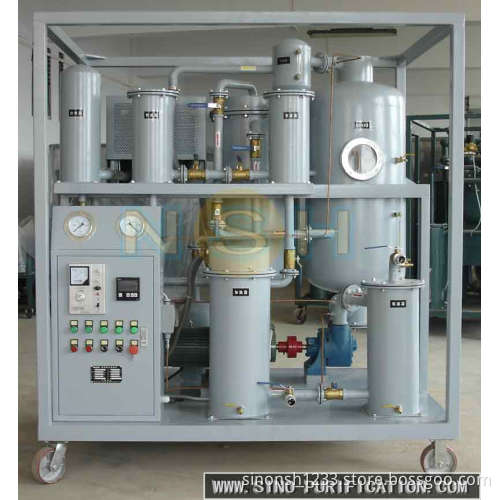

LV Lubrication Oil Purifier

I.Application
LV series oil purifier are specially suitable for purifying and restoring hydraulic oil,machine oil,coolant oil and various other lubrication oil.Most of breakdown of machinery which has lubrication oil system results from contaminated lubrication in which has water,gas,impurities etc.LV series can rapidly remove water,gas,particulate matters and impurities from lubrication oil and improve properties of lubricating oil so as to greatly extend lifetime of machinery which has lubrication system.
Custom options are available.
II.Features
1.Perfect capacity of removing impurities.The special filters made by NSH are made of special materials which can eliminate various impurities,water and gas effectively and rapidly.
2.Automatic reverse wash system will extend the lifetime of filters and improve the performance of the filters.
3.High performance of security system including pressure protection device and automatic temperature controller makes purifier safely.
4.Online work.
5.Easy handling and maintenance.
6.Lower maintenance and replacement expenses.
7.Small size,light weight,low noise.
8.Various sizes and configurations(alloy shield) available.
III.Available Style
1.Fixing type,mobile type with four wheels and mobile type with trailer.
2.Normal appearance type,shelf-covering type and explosion-proof type.
3.Avaliable in different color.

Item		Unit	LV-10	LV-20	LV-30	LV-50	LV-100	LV-150	LV-200
Flow Rate		L/H	600	1200	1800	3000	6000	9000	12000
Vacuum Range		Mpa	-0.065 ~ -0.096
Working Pressure		Mpa	≤0.4
Clearness		NAS	≤6
Temperature Range		℃	40 ~ 80
Water Content		PPM	≤100
Impurity Size		μm	≤5
Power Supply			380V/3P/50Hz(or as needed)
Working Noise		dB(A)	≤70			≤75
Heating Power		Kw	15	18	30	45	90	120	180
Total Power		Kw	17	21	35	50	96	126	186
Pipeline Diameter		mm	DN20	DN20	DN20	DN25	DN40	DN50	DN65
Net Weight		Kg	360	430	650	900	950	1050	1200
Size	length	mm	1300	1350	1500	1750	1850	1950	2050
	width	mm	900	950	1050	1100	1400	1500	1600
	high	mm	1700	1750	1550	1550	1800	1900	2000
