Turbine Oil Cleaning Systems / Purification Systems
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing,China |
|---|---|
| Productivity: | 30 sets per month |
| Supply Ability: | available |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF |
| Certificate: | ISO CE |
| Transportation: | Ocean,Land,Air |
Brief Introduction About Sino-NSH
Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.We can ensure the first-class quality as well as provide the first-class service.NSH has been engaging in oil purifier producing, our products are extensively used in the fields of electric power, petroleum, natural gas, mechanical engineering, metallurgy etc.

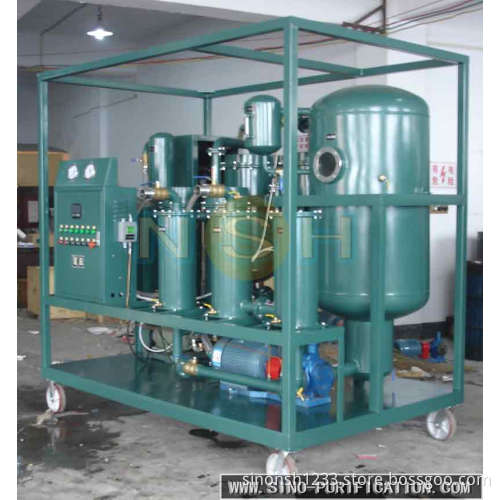

Turbine Oil Cleaning Systems / Purification Systems
I.Application
TF series is particularly suitable for purifying turbine lubricating oil.It also applys to treat hydraulic,coolant oil and other lubrication in which contain large amount of water and others such as vapor,impurities,sludge,dielectric and colloid.
TF series will result in the improvement of the properties of turbine oil or other lubrication and extending the maintenance period of turbines or other equipments which have lubrication system and keep them operate in good condition.
II.Description
TF turbine oil purifier series is developed by vacuum evaporation technology,coacervation technology,coalescing technology,separating engineering technology and refined purification technology.It can eliminate water,gas,impurities,colloid,dielectric etc. rapidly and effectively in high vacuum situation and make the waste oil reuse.
The lubrication of turbine or other equipments which has lubrication system need be replaced frequently because of vapor,water and other impurities mixed with it.Otherwise,oil deterioration would result in breakdown of machinery or affect the normal running of machinery.
TF series can effectively extend the lifetime of oil and protect turbine and other machinery which has lubrication system from damage.
III. Features
1.Eliminate soluble and dissolved water effectively and demulsify rapidly.
TF series can not only separate large quantity of water but also remove trace water from oil.Fitted with specially made demulsifying device(water separator).It is capable of making turbid emulsified oil very clear.
2.High effectively purify matters in oil such as impurities,sludge etc.
The automatic backwash filtering system can remove large amount of particulate matters and fine filter system can remove tiny particles.
3.High automation,stability and operation online High automation,small size,light weight,safety,and reliability.Installed with inrared liquid level automatic controller,the purifier machine will run automatically and easy handling.
IV.Available Style
1.Fixing type,mobile type with four wheels and mobile type with trailer.
2.Normal appearance type,shelf-covering type and explosion-proof type.
3.Avaliable in different color.
Item
Unit
TF-10
TF-20
TF-30
TF-50
TF-100
TF-150
TF-200
Flow
Rate
L/H
600
1200
1800
3000
6000
9000
12000
Vacuum
Range
Mpa
-0.06 ~ -0.096
Working
Pressure
Mpa
≤0.3
Clearness
NAS
≤6
Temperature Range
℃
40 ~ 80
Water Content
PPM
≤100
Impurity Size
μm
≤5
Demulification
Number
Min
＜15
Power
Supply
380V/3P/50Hz(or as needed)
Working
Noise
dB(A)
≤70
≤75
Heating
Power
Kw
9
18
30
36
72
90
120
Total
Power
Kw
11
20
34
41
78
96
126
Pipeline
Diameter
mm
DN20
DN20
DN25
DN32
DN40
DN50
DN65
Net
Weight
Kg
320
400
420
550
750
850
950
Size
length
mm
1280
1300
1400
1550
1700
1800
1900
width
mm
750
900
1050
1100
1300
1400
1500
high
mm
1450
1450
1600
1700
1850
1950
2050
More information please contact :
Jerry Yang
sinonsh123 at sino-purification dot com
