Steam Turbine Oil Purifier

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 25 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	chongqing
Productivity:	30 sets per month
Supply Ability:	available
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001 CE
Transportation:	Ocean,Land,Air

Product Description

Brief Introduction About Sino-NSH

Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.We can ensure the first-class quality as well as provide the first-class service.NSH has been engaging in oil purifier producing, our products are extensively used in the fields of electric power, petroleum, natural gas, mechanical engineering, metallurgy etc.

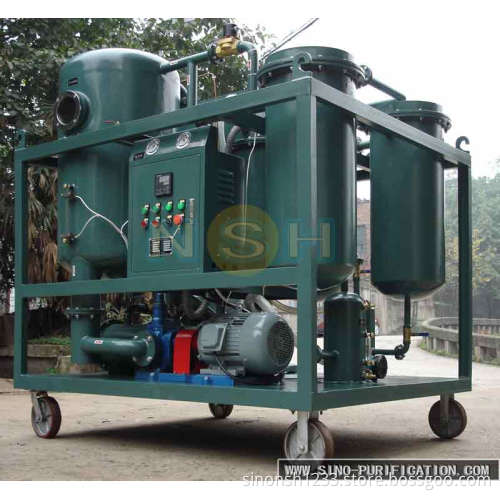

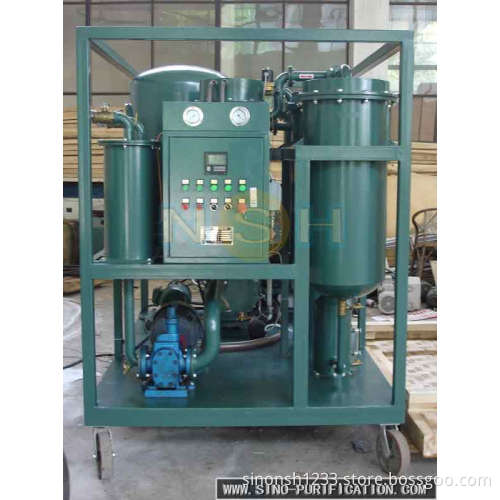

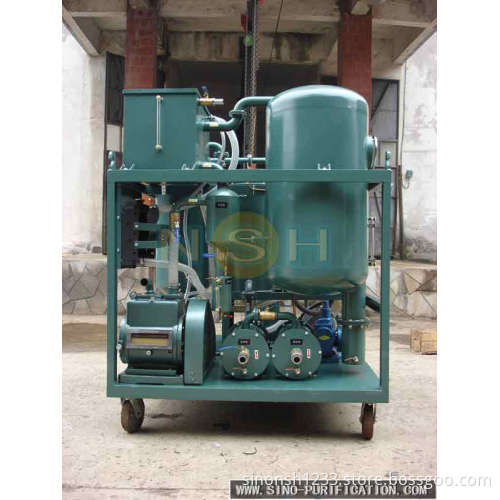

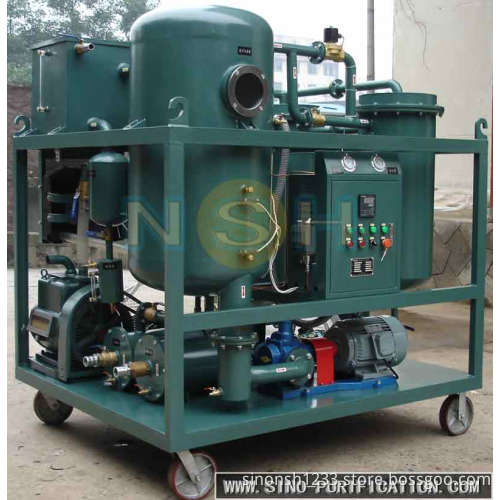

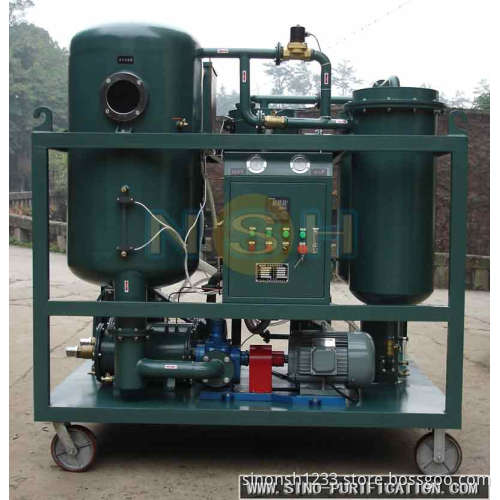

Steam Turbine Oil Purifier

I.Application

TF series is particularly suitable for purifying turbine lubricating oil.It also applys to treat hydraulic,coolant oil and other lubrication in which contain large amount of water and others such as vapor,impurities,sludge,dielectric and colloid.

TF series will result in the improvement of the properties of turbine oil or other lubrication and extending the maintenance period of turbines or other equipments which have lubrication system and keep them operate in good condition.

II.Description

TF turbine oil purifier series is developed by vacuum evaporation technology,coacervation technology,coalescing technology,separating engineering technology and refined purification technology.It can eliminate water,gas,impurities,colloid,dielectric etc. rapidly and effectively in high vacuum situation and make the waste oil reuse.

The lubrication of turbine or other equipments which has lubrication system need be replaced frequently because of vapor,water and other impurities mixed with it.Otherwise,oil deterioration would result in breakdown of machinery or affect the normal running of machinery.

TF series can effectively extend the lifetime of oil and protect turbine and other machinery which has lubrication system from damage.

III. Features

1.Eliminate soluble and dissolved water effectively and demulsify rapidly.

TF series can not only separate large quantity of water but also remove trace water from oil.Fitted with specially made demulsifying device(water separator).It is capable of making turbid emulsified oil very clear.

2.High effectively purify matters in oil such as impurities,sludge etc.

The automatic backwash filtering system can remove large amount of particulate matters and fine filter system can remove tiny particles.

3.High automation,stability and operation online High automation,small size,light weight,safety,and reliability.Installed with inrared liquid level automatic controller,the purifier machine will run automatically and easy handling.

IV.Available Style

1.Fixing type,mobile type with four wheels and mobile type with trailer.

2.Normal appearance type,shelf-covering type and explosion-proof type.

3.Avaliable in different color.

V.Technical Specification

Item		Unit	TF-10	TF-20	TF-30	TF-50	TF-100	TF-150	TF-200
Flow Rate		L/H	600	1200	1800	3000	6000	9000	12000
Vacuum Range		Mpa	-0.06 ~ -0.096
Working Pressure		Mpa	≤0.3
Clearness		NAS	≤6
Temperature Range		℃	40 ~ 80
Water Content		PPM	≤100
Impurity Size		μm	≤5
Demulification Number		Min	＜15
Power Supply			380V/3P/50Hz(or as needed)
Working Noise		dB(A)	≤70			≤75
Heating Power		Kw	9	18	30	36	72	90	120
Total Power		Kw	11	20	34	41	78	96	126
Pipeline Diameter		mm	DN20	DN20	DN25	DN32	DN40	DN50	DN65
Net Weight		Kg	320	400	420	550	750	850	950
Size	length	mm	1280	1300	1400	1550	1700	1800	1900
	width	mm	750	900	1050	1100	1300	1400	1500
	high	mm	1450	1450	1600	1700	1850	1950	2050
