Vacuum Insulating Oil Water Eliminator with Trailer

Vacuum Insulating Oil Water Eliminator with Trailer

Get Latest Price

Payment Type:: L/C, T/T

Incoterm:: FOB, CFR, CIF

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 25 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	chongqing
Productivity:	30 sets per month
Supply Ability:	available
Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Certificate:	ISO9001 CE
Transportation:	Ocean,Land,Air

Product Description

Brief Introduction About Sino-NSH

Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.We can ensure the first-class quality as well as provide the first-class service.NSH has been engaging in oil purifier producing, our products are extensively used in the fields of electric power, petroleum, natural gas, mechanical engineering, metallurgy etc.

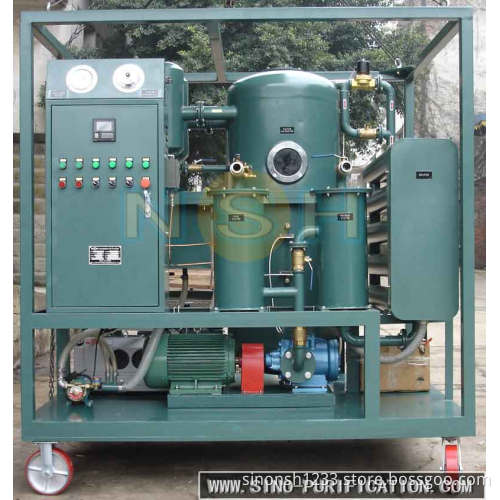

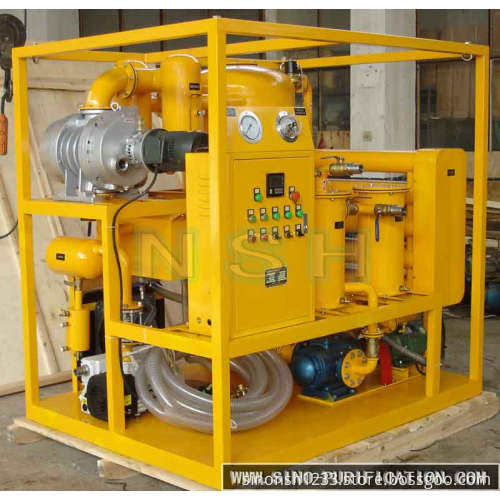

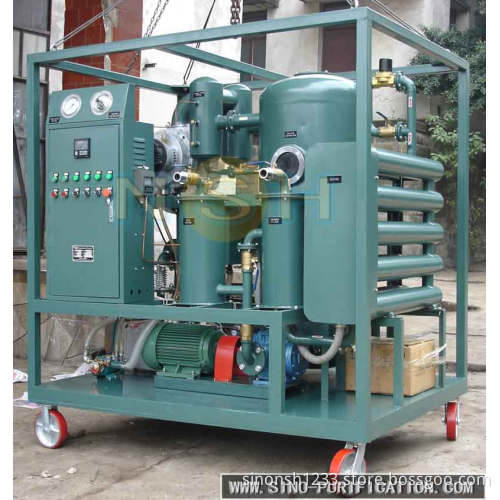

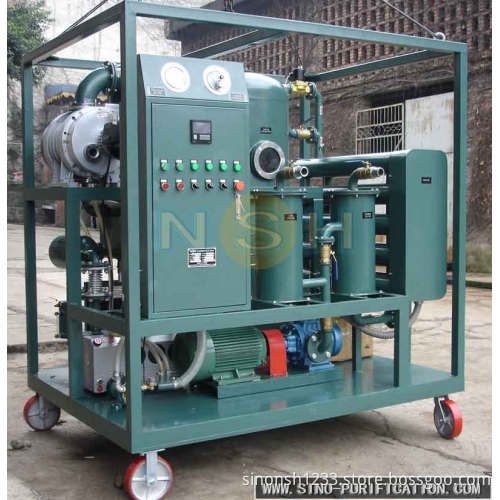

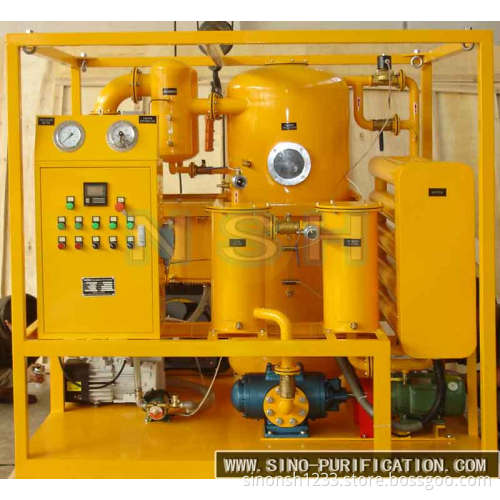

Vacuum Insulating Oil Water Eliminator with Trailer

I.Application
NSH VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.

II.Description
NSH VFD series utilizes coacervation technology,coalescing technology,separating technology and refined purification technology.Comparing to Model VF series,it add ROOTS Vacuum system,second stage of separating system to improve the effect of purification. To remove free,soluble water,carbon,free and dissovled gases and particulate matters from insulating oil effectively and rapidly.

III.Features
1.Effective and efficient Dehydration(Degassing) System.
2.High precision Filtering System.
3.Powerful double stages Vacuum System.
4.Electrical apparatus Controlling System.
5.High quality components.
6.Diverse design in the structures and functions.

IV.Edges of VFD
1.High efficiency and effectiveness.
2.Enhance the value of breakdown voltage greatly.
3.Easy handling and maintenance.
4.Online work.
5.Lower maintenance and replacement expenses.
6.Small size, light weight, low noise
7.Various sizes and configurations (shield) available.

V.Available Style
1.Fixing type,mobile type with four wheels and mobile type with trailer.
2.Normal appearance type,shelf-covering type and explosion-proof type.
3.Avaliable in different color.

VI.Relative Series:
VFD series: Insulation Oil Purifier Series

TF series: Turbine Oil Purifier Series
LV series: Lubrication Oil Purifier Series
GER series: Used Engine Oil Regeneration System

Item		Unit	VFD-30	VFD-50	VFD-80	VFD-100	VFD-150	VFD-200	VFD-300
Flow Rate		L/H	1800	3000	4800	6000	9000	12000	18000
Vacuum Range		Mpa	_0.092 ~ -0.099
Working Pressure		Mpa	≤ 0.3
Max Vacuum Range		Pa	≤ 50
Temperature Range		centidegree	45 ~80
Breakdown Voltage		kV	≥ 75
Impurity Size		μ m	≤ 5
Dielectric Loss		tgδ	≤ 0.005
Interfacial Tension		mN/m	≥ 40
Water Content		PPM	≤ 5
Gas Content		%	≤ 0.1
Power Supply		V	380V/50Hz( or as needed)
Working Noise		dB(A)	≤ 72			≤ 78
Heating Power		Kw	30	48	72	90	120	180	240
Total Power		Kw	33	52	77	96	128	188	252
Pipeline Diameter		mm	DN20	DN25	DN32	DN32	DN40	DN50	DN65
Net Weight		Kg	600	800	1000	1300	1800	2100	2400
Size	length	mm	1500	1600	1700	1900	2200	2300	2350
	width	mm	1100	1400	1500	1600	1700	1750	1850
	high	mm	1750	1800	1850	1900	2100	2250	2250
