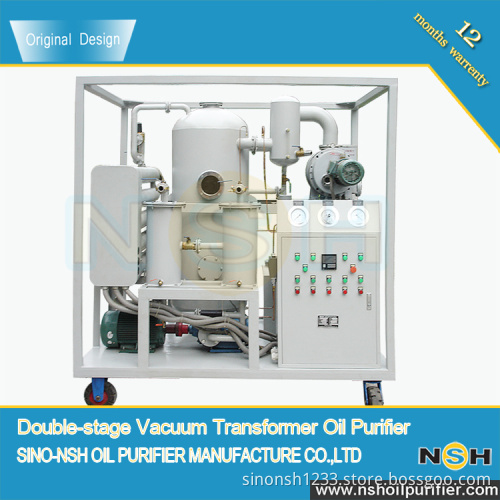

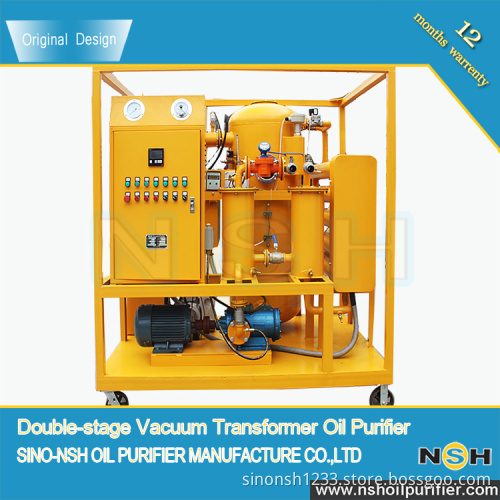

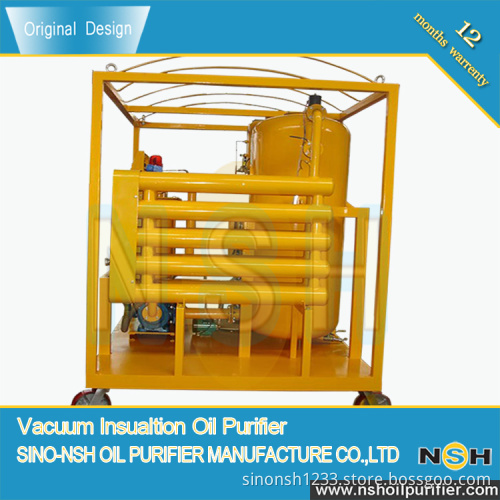

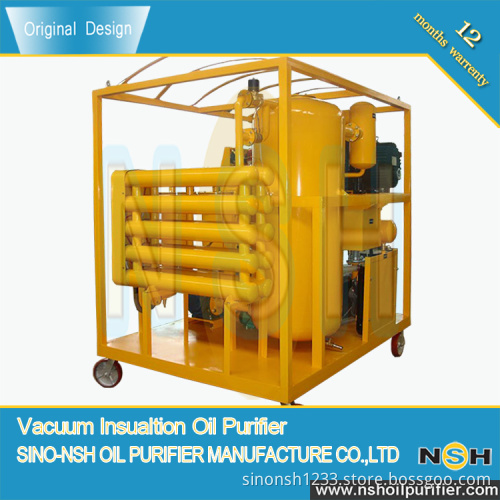

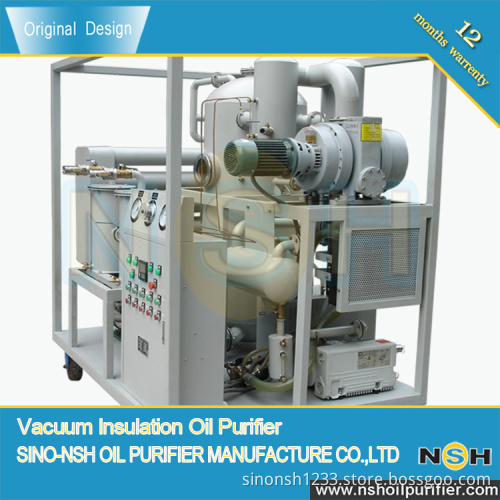

Double-Stage High-Efficiency Vacuum Insulation Oil Purifier
- Payment Type:
- L/C, T/T
- Incoterm:
- FOB, CFR, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 25 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | chongqing |
---|---|
Productivity: | 30 sets per month |
Supply Ability: | available |
Payment Type: | L/C,T/T |
Incoterm: | FOB,CFR,CIF |
Certificate: | ISO9001 |
Transportation: | Ocean,Land,Air |
Brief Introduction About Sino-NSH
Sino-NSH Oil Purifier Manufacture Co., Ltd is a high-tech Company which is engaged in researching, developing and manufacturing lubrication purification equipment. Its parent company, Sino-NSH High-Tech Company, was established in 1992.We can ensure the first-class quality as well as provide the first-class service.NSH has been engaging in oil purifier producing, our products are extensively used in the fields of electric power, petroleum, natural gas, mechanical engineering, metallurgy etc.
Double-Stage High-Efficiency Vacuum Insulation Oil Purifier
I.Application
NSH VFD series is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system. VFD series specialize in purifying branded oil, insulating oil of high voltage and super high voltage transformer. Additionally, it is suitable for treating low viscosity lubrication oil.
II.Description
NSH VFD series utilizes coacervation technology,coalescing technology,separating technology and refined purification technology.Comparing to Model VF series,it add ROOTS Vacuum system,second stage of separating system to improve the effect of purification. To remove free,soluble water,carbon,free and dissovled gases and particulate matters from insulating oil effectively and rapidly.
III.Features
1.Effective and efficient Dehydration(Degassing) System.
2.High precision Filtering System.
3.Powerful double stages Vacuum System.
4.Electrical apparatus Controlling System.
5.High quality components.
6.Diverse design in the structures and functions.
IV.Edges of VFD
1.High efficiency and effectiveness.
2.Enhance the value of breakdown voltage greatly.
3.Easy handling and maintenance.
4.Online work.
5.Lower maintenance and replacement expenses.
6.Small size, light weight, low noise
7.Various sizes and configurations (shield) available.
V.Available Style
1.Fixing type,mobile type with four wheels and mobile type with trailer.
2.Normal appearance type,shelf-covering type and explosion-proof type.
3.Avaliable in different color.
Technical Specification
Item
Unit
VFD-30
VFD-50
VFD-80
VFD-100
VFD-150
VFD-200
VFD-300
Flow
Rate
L/H
1800
3000
4800
6000
9000
12000
18000
Vacuum
Range
Mpa
-0.092 ~ -0.099
Working
Pressure
Mpa
≤0.2
Max
Vacuum Range
Pa
≤50
Temperature Range
℃
45 ~ 65
Breakdown
Voltage
Kv
≥75
Impurity
Size
μm
≤5
Dielectric
Loss
Tg
≤0.005
Interfacial Tension
mn/m
≥40
Water Content
PPM
≤4
Gas Content
%
≤0.1
Power
Supply
380V/3P/50Hz(or as needed)
Working
Noise
dB(A)
≤72
≤78
Heating
Power
Kw
30
48
72
90
120
180
240
Total
Power
Kw
35
54
77
98
129
189
254
Pipeline
Diameter
mm
DN25
DN32
DN32
DN40
DN50
DN65
DN65
Net
Weight
Kg
550
850
1000
1100
1400
1600
2200
Size
length
mm
1500
1500
1700
1900
2100
2100
2600
width
mm
1200
1200
1500
1400
1550
1550
1800
high
mm
1750
1750
1850
1800
1900
1900
2000
