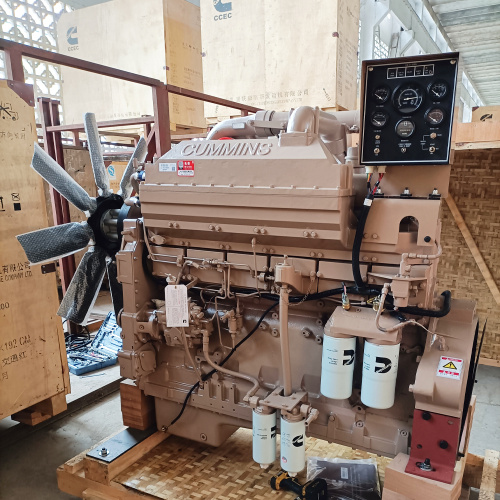

Cummins KTA19-C KTTA19 Diesel Engine 700HP

Cummins KTA19-C KTTA19 Diesel Engine 700HP

Get Latest Price

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Transportation:: Ocean, Land, Air, Express

Port:: Chongqing, Shanghai, Guangzhou

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China Chongqing
Productivity:	20000 per year
Supply Ability:	20000 per year
Payment Type:	T/T,D/P,D/A,Paypal,Money Gram,Western Union,L/C
Incoterm:	FOB,CIF,EXW,DDU,DDP,FAS
Certificate:	ISO9001
HS Code:	8408909390
Transportation:	Ocean,Land,Air,Express
Port:	Chongqing,Shanghai,Guangzhou

Product Description

Cummins KTTA19 series is a dual supercharged engine, which can be used for both mining truck and agricultural pump irrigation, equipped with advanced control system and cooling system. Characterized by the robust power, fuel economy, reliability, durability and safety, Cummins engines are highly praised by customers all over the world.

Engine Model: KTTA19-C700 & KTA19-C700

Tag：Cummins Engine

Application: Cummins Mining Truck Engine, Cummins Pump Engine

Mining truck model: BELAZ 7555D 7555H 7555B

Specification
Engine Model	KTTA19-C700
Rating Type	Continuous
Rated Engine Power	700hp / 522kW
Rated Engine Speed	2100rpm
Peak Engine Torque@ 1500 rpm	1513 lb. H ft. / 2052 NHm
Cylinders	6
Aspiration	Turbocharged & Aftercooled
Compression Ratio	15.5:1
Piston Speed	1870 ft/min / 9.5 m/sec
Displacement	19L
Bore*Stroke	159*159mm
Fuel System	PT pump
Fuel Consumption at Rated Speed	24gal/hr / 90 l/hr
Approximate Fuel Flow to Pump	71gal/hr / 270 l/hr
Intake Manifold Pressure	36in. Hg / 122kPa
Intake Air Flow	1101 cfm / 520 l/sce
Heat Rejection to Ambient	2618 BTU/min / 46 kW
Size-Engine Only	200015001900mm
Weight (Dry) - Engine Only	1725kg
Minimum Idle Speed Setting	650-700rpm
Normal Idle Speed Variation	±25rpm
High Idle Speed Range Minimum	1962rpm
High Idle Speed Range Maximum	2106rpm
Standard Thermostat Operating Range (Start to Open - Full Open)	82°C-94°C
